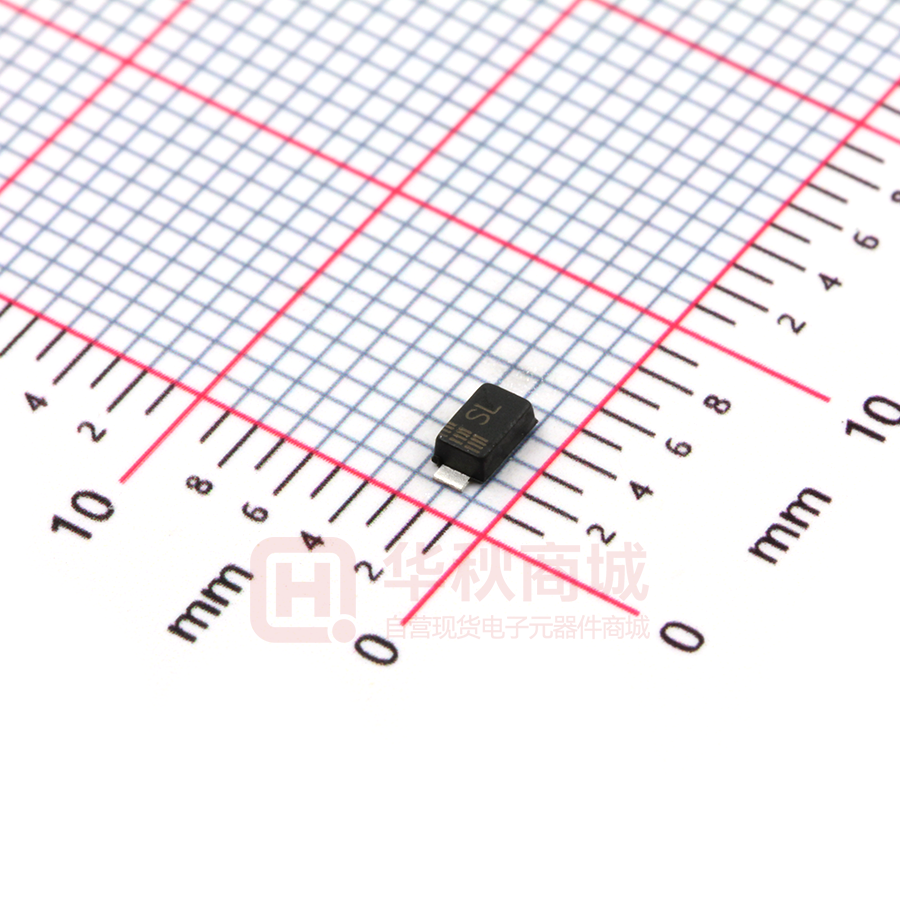

DSS14

DSS12 - DSS120 Series SCHOTTKY SOD123FL Plastic-Encapsulate Schottky Barrier Rectifiers SOD-123FL ROHS Features  The plastic package carries Underwriters Laboratory     Flammability Classification 94V-0 Metal silicon junction,majority carrier conduction Low power loss,high efficiency High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data     SOD 123FL small outline plastic package Polarity: Color band denotes cathode end Epoxy UL: 94V-0 Mounting Position: Any Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Operating junction temperature range Storage temperature range SYMBOLS DSS12 DSS13 DSS14 K12 K13 K14 VRRM VRMS VDC DSS15 K15 DSS16 K16 DSS17 K17 20 30 40 50 60 70 80 90 100 150 200 14 21 28 35 42 49 56 63 70 105 140 20 30 40 50 60 70 80 90 100 150 I(AV) 1.0 IFSM 25.0 VF 0.85 0.5 5.0 10.0 VOLTS VOLTS 200 VOLTS Amp 0.95 0.2 2.0 80 110 TJ TSTG UNITS Amps 0.70 0.55 IR CJ DSS18 DSS19 DSS110 DSS115 DSS120 K18 K19 K110 K115 K120 -55 to +125 www.born-tw.com mA pF -55 to +150 C C -55 to +150 Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. Rev 8: Nov 2014 Volts Page 1 of 2 DSS12 - DSS120 Series AVERAGE FORWARD RECTIFIED CURRENT, AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE 1 0.8 Single Phase Half Wave 60Hz Resistive or inductive Load 0.6 0.4 DSK12-DSK16 DSK17-DSK120 0.2 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES SOD123FL Plastic-Encapsulate Schottky Barrier Rectifiers SCHOTTKY FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 30 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 25 20 15 10 5.0 0 175 1 20 10 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE DSK12-DSK14 DSK15-DSK16 DSK17-DSK115 DSK120 0.01 0.2 0.4 0.6 0.8 1.0 1.1 INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 0.1 10 100 NUMBER OF CYCLES AT 60 Hz AMBIENT TEMPERATURE, C 1 ROHS FIG. 4-TYPICAL REVERSE CHARACTERISTICS 100 10 TJ=100 C 1 TJ=75 C 0.1 0.001 INSTANTANEOUS FORWARD VOLTAGE, VOLTS TJ=25 C 0.01 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% JUNCTION CAPACITANCE, pF FIG. 5-TYPICAL JUNCTION CAPACITANCE 2000 1000 DSK12-DSK14 DSK15-DSK120 100 TJ=25 C 10 0.1 1.0 10 100 REVERSE VOLTAGE,VOLTS SOD-123FL PACKAGE OUTLINE Plastic surface mounted package Rev 8: Nov 2014 www.born-tw.com Page 2 of 2
