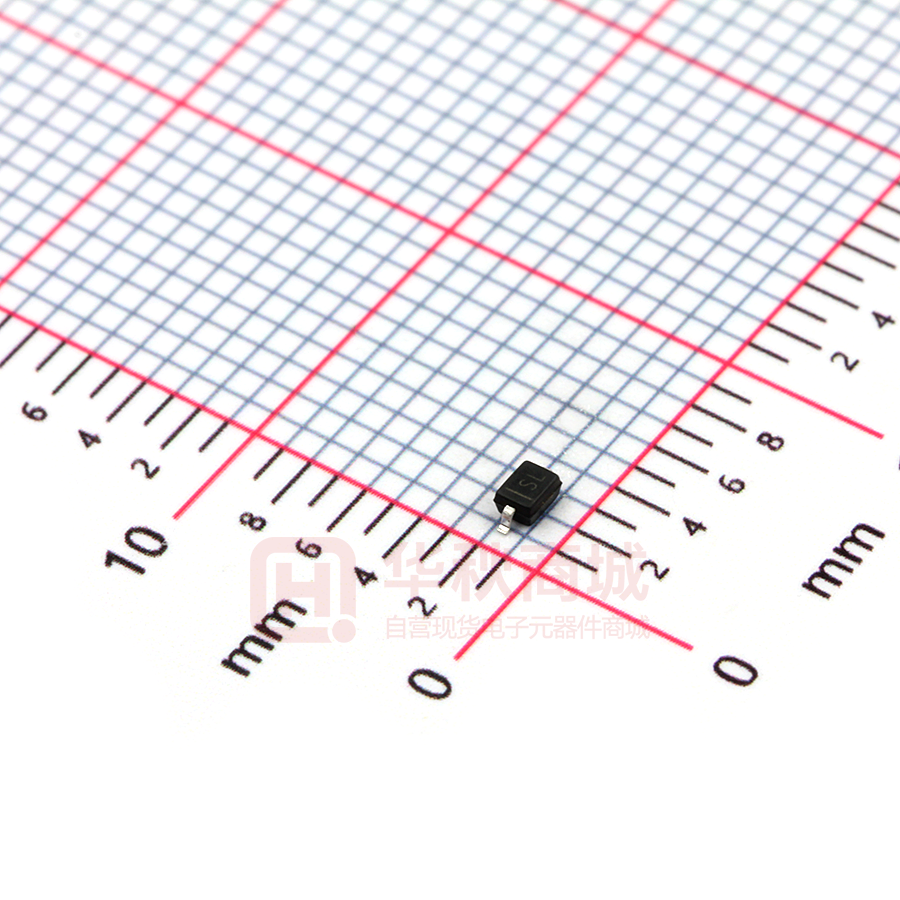

B5819WS

B5817-5819WS SCHOTTKY SOD323 Plastic-Encapsulate Schottky Barrier Diode RHOS SOD-323 Features  High Current Capability  Low Forward Voltage Drop Mechanical Data Marking: B5817WS:SJ B5818WS:SK B5819WS:SL  SOD-323 Small Outline Plastic Package  Polarity: Color band denotes cathode end  Mounting Position: Any Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Symbol B5817WS B5818WS B5819WS Unit Maximum repetitive peak reverse voltage VRRM 20 30 40 V Maximum RMS voltage VRMS 14 21 28 V Maximum DC blocking voltage VDC 20 30 40 V Maximum average forward rectified current IFM 1.0 A IFSM 9 A RθJA 400 ℃/W PD 250 mW Tj 125 ℃ TSTG -50-+150 ℃ Parameters Peak forward surge current 8.3 ms single half sinewave 1.5KExxA(CA) Typical thermal resistance Power Dissipation Operating junction temperature Storage temperature range Electrical Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified). Symbol Test conditions B5817WS B5818WS B5819WS Unit Maximum forward voltage VF IF = 1.0A IF = 3.0A 0.450 0.750 0.550 0.875 0.600 0.900 V Maximum reverse breakdown voltage VR IR=1mA 20 30 40 V Maximum reverse current IR VR=20V B5817WS VR=30V B5818WS VR=40V B5819WS 1.0 mA Type junction capacitance Cj VR = 4.0V, f = 1MHz 120 pF Parameters Rev 8: Nov 2014 www.born-tw.com Page 1 of 2 B5817-5819WS SCHOTTKY SOD323 Plastic-Encapsulate Schottky ROHS 1.5KExxA(CA) SOD-323 PACKAGE OUTLINE Plastic surface mounted package Rev 8: Nov 2014 www.born-tw.com Page 2 of 2
