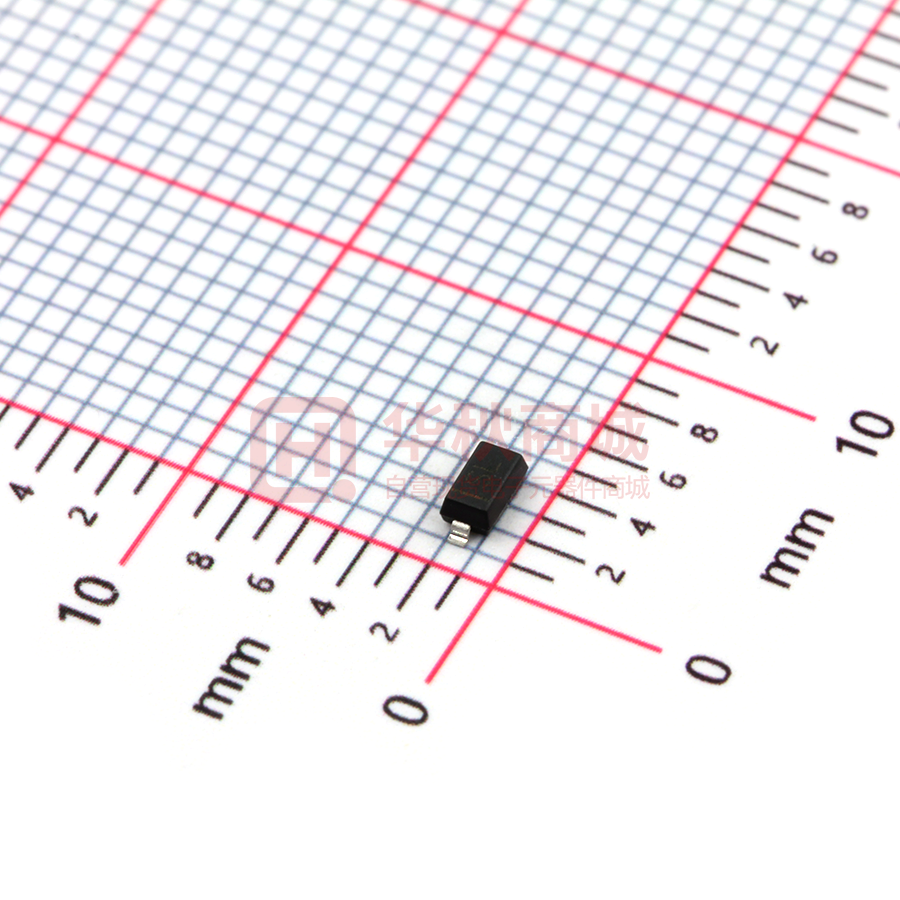

B5819W

B5817-5819W SCHOTTKY SOD123 Plastic-Encapsulate Schottky Barrier Diode ROHS Features SOD-123  High Current Capability  Low Forward Voltage Drop Mechanical Data Marking: B5817W: SJ B5818W: SK B5819W: SL     SOD-123 Small Outline Plastic Package Polarity: Color band denotes cathode end Epoxy UL: 94V-0 Mounting Position: Any Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Parameters Symbol B5817W B5818W B5819W Unit Maximum repetitive peak reverse voltage VRRM 20 30 40 V Maximum RMS voltage VRMS 14 21 28 V Maximum DC blocking voltage VDC 20 30 40 V Maximum average forward rectified current IFM 1.0 A IFSM 9 A 250 ℃/W PD 500 mW TSTG -50-+150 ℃ Peak forward surge current 8.3 ms single half sine-wave Typical thermal resistance RθJA 1.5KExxA(CA) Power Dissipation Storage temperature range Electrical Characteristics ( Ratings at 25℃ ambient temperature unless otherwise specified). Parameters Symbol Test conditions B5817W B5818W B5819W Maximum forward voltage VF IF = 1.0A IF = 3.0A 0.450 0.750 0.550 0.875 0.600 0.900 V Maximum reverse breakdown voltage VR IR=1mA 20 30 40 V IR VR=20V B5817W VR=30V B5818W VR=40V B5819W 1.0 mA Cj VR = 4.0V, f = 1MHz 120 pF Maximum reverse current Type junction capacitance Rev 8: Nov 2014 www.born-tw.com Unit Page 1 of 2 B5817-5819W SCHOTTKY SOD123 Plastic-Encapsulate Schottky Barrier Diode ROHS SOD-123 PACKAGE OUTLINE Plastic surface mounted package b D c Rev 8: Nov 2014 www.born-tw.com Page 2 of 2
