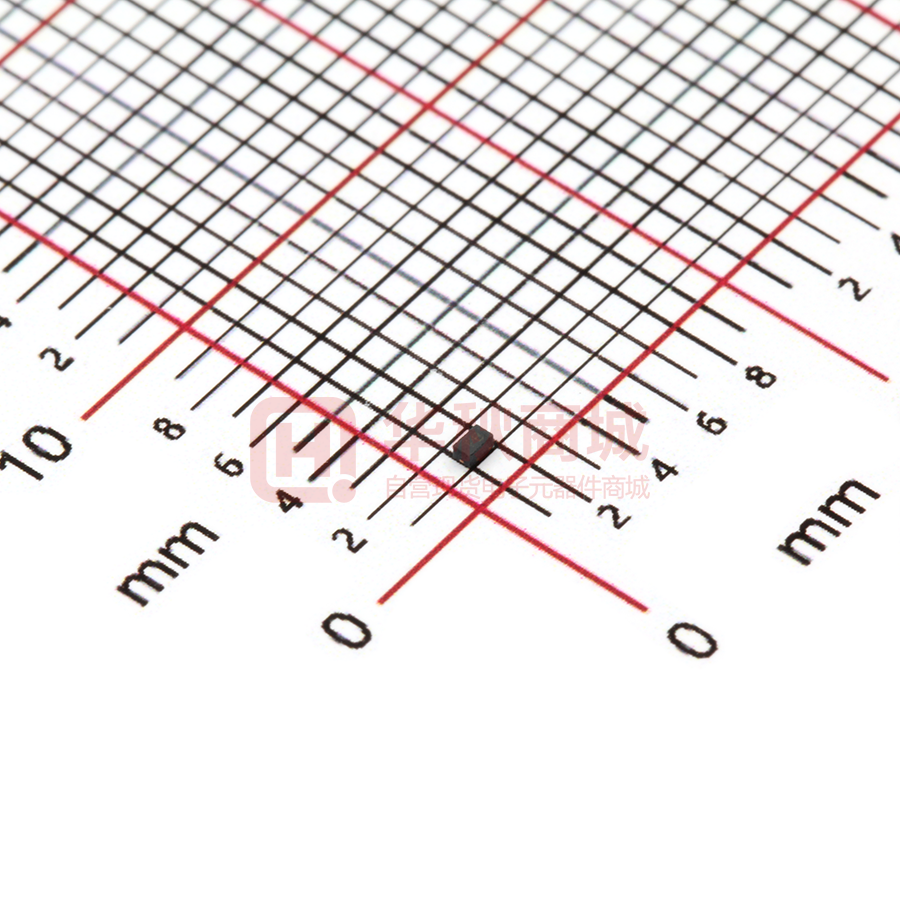

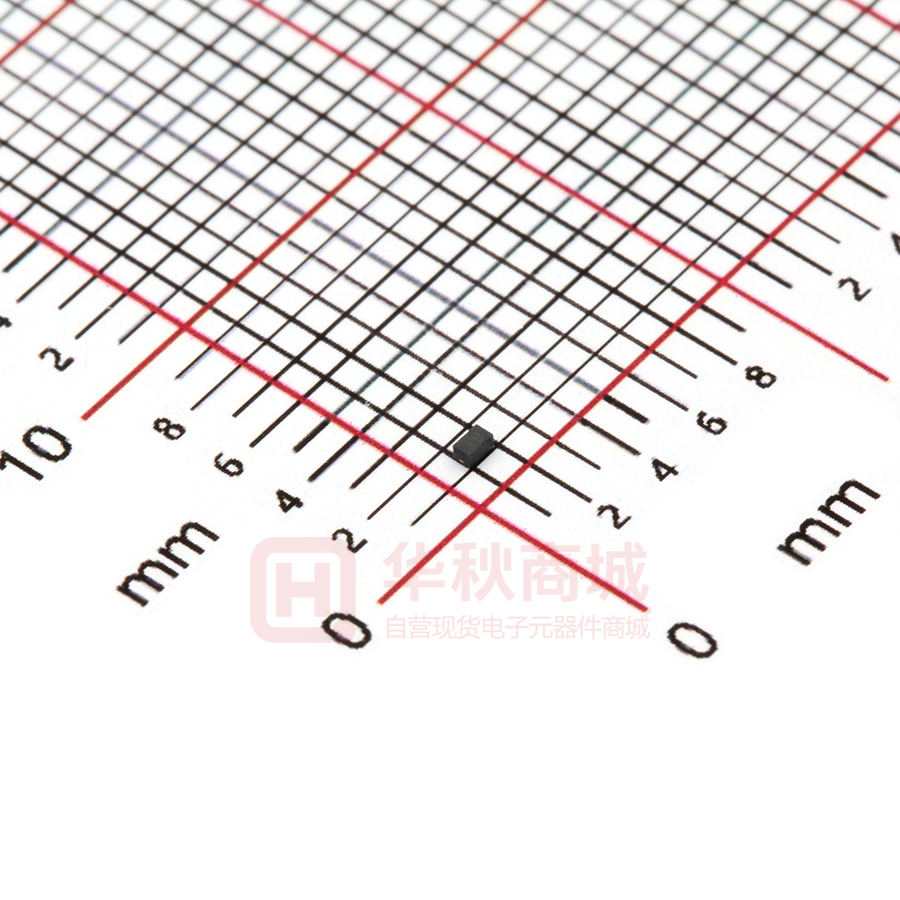

ESD9B5.0ST5G-N

ESD9B5.0ST5G-N ESD Protection Diode »Features ■ 65Watts peak pulse power (tp = 8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±25kV contact ±25kV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 5A (8/20μs) »Applications »Mechanical Data ■ Microprocessor based equipment ■ DFN1006 package ■ Personal Digital Assistants (PDA’s) ■ Molding compound flammability rating: UL 94V-0 ■ Notebooks, Desktops, and Servers ■ Packaging: Tape and Reel ■ Portable Instrumentation ■ RoHS/WEEE Compliant ■ Pagers Peripherals »Schematic & PIN Configuration DFN1006 Revision 2018 www.born-tw.com 1/4 ESD9B5.0ST5G-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 65 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 5 A VESD 25 25 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Conditions Min Typical VRWM Max Units 5.0 V VBR IT=1mA Reverse Leakage Current IR VRWM=5V,T=25℃ 1 uA Clamping Voltage VC IPP=6A,tp=8/20μs 13 V Junction Capacitance Cj VR = 0V, f = 1MHz 10 pF Reverse Breakdown Voltage 6.0 V 8 »Electrical Parameters (TA = 25°C unless otherwise noted) Symbol IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT I Parameter Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM V Breakdown Voltage @ IT Test Current Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 ESD9B5.0ST5G-N »Typical Characteristics Figure 1: Peak Pulse Power vs. Pulse Time Figure 2: Power Derating Curve 110 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) 10 1 65w 8/20µ swaveform 0.1 0.01 0.1 1 10 td – Pulse Duration - µs 100 100 90 80 70 60 50 40 30 20 10 1,000 0 0 25 50 75 100 125 150 Ambient Temperature - TA (℃) Fig.3 PulseWaveform-8/20μs 120 Fig.4 PulseWaveform-ESD(IEC61000-4-2) 100%IPP , 8μS 100% 90% 80 50%IPP, 20μS e-t 60 40 20 0 30ns Percent of I PP Percent of IPP 100 60ns 10% 0 5 10 15 20 25 30 0 30 60 Fig.5 IEC61000-4-2 +8kV ContactDischarge Fig.6 IEC61000-4-2 -8kV ContactDischarge Trigger and Clamping Voltage(V) Time (ns) Trigger and Clamping Voltage(V) Time (μs) tr 0.7 to 1ns Time (ns) Time (ns) Revision 2018 www.born-tw.com 3/4 ESD9B5.0ST5G-N »Outline Drawing – DFN1006 »Marking PB »Ordering information Order code ESD9B5.0ST5G-N Revision 2018 Package Base qty Delivery mode DFN1006 10K Tape and reel www.born-tw.com 4/4
