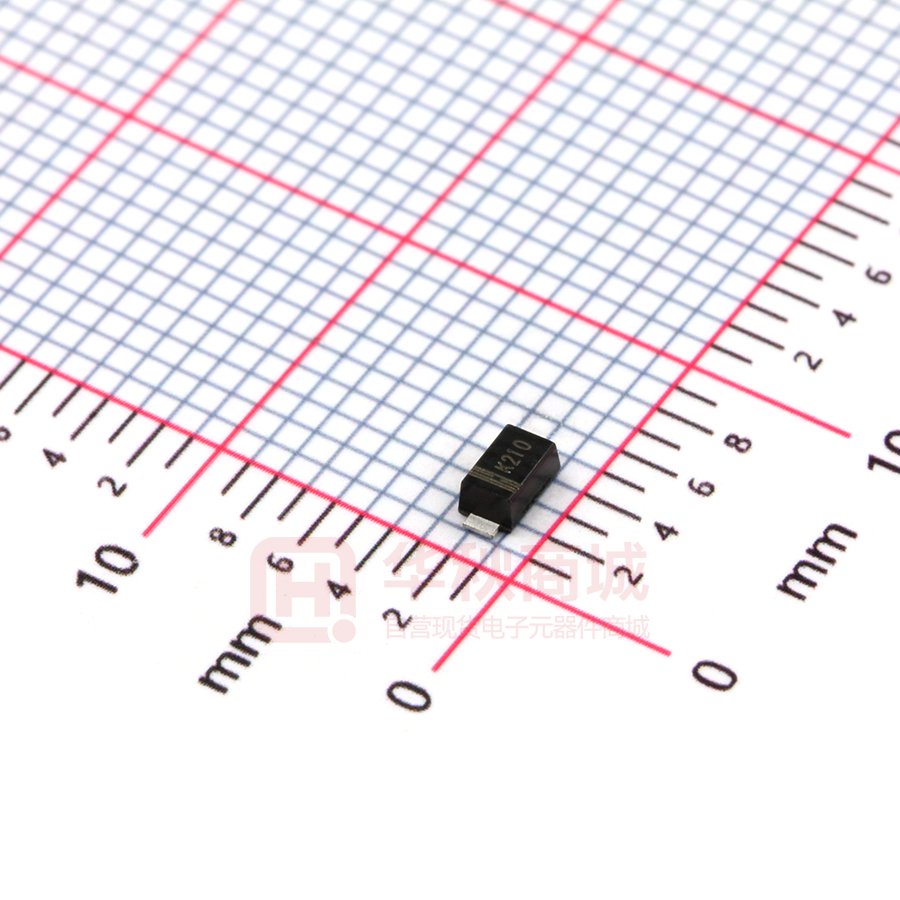

DSS210

DSS22 - DSS210 Series SCHOTTKY SOD123FL Plastic-Encapsulate Schottky Barrier Rectifiers SOD-123FL ROHS Features  The plastic package carries Underwriters Laboratory     Flammability Classification 94V-0 Metal silicon junction,majority carrier conduction Low power loss,high efficiency High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375(9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data     SOD 123FL small outline plastic package Polarity: Color band denotes cathode end Epoxy UL: 94V-0 Mounting Position: Any Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. SYMBOLS DSS22 DSS23 DSS24 DSS25 DSS26 DSS27 DSS28 DSS29 DSS210 Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 2.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Operating junction temperature range Storage temperature range 20 14 20 30 21 30 40 28 40 50 35 50 60 42 60 70 49 70 80 56 80 90 63 90 100 70 100 UNITS I(AV) 2.0 VOLTS VOLTS VOLTS Amp IFSM 40.0 Amps VRRM VRMS VDC VF 0.55 0.5 IR CJ TJ TSTG 0.85 0.70 5.0 10.0 220 80 -65 to +125 mA pF -65 to +150 -65 to +150 Volts C C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. Rev 8: Nov 2014 www.born-tw.com Page 1 of 2 DSS22 - DSS210 Series AVERAGE FORWARD RECTIFIED CURRENT, AMPERES 2.0 1.6 Single Phase Half Wave 60Hz Resistive or inductive Load 1.2 0.8 DSS22-DSS26 DSS27-DSS210 0.4 0 0 25 50 75 100 125 150 175 40 32 24 16 8 0 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 20 10 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 0.1 DSS22-DSS24 DSS25-DSS26 DSS27-DSS210 0.01 0.2 0.4 0.6 0.8 1.0 10 100 NUMBER OF CYCLES AT 60 Hz FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 1 ROHS FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT AMBIENT TEMPERATURE, C 1.1 INSTANTANEOUS REVERSE CURRENT, MILLAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 1- FORWARD CURRENT DERATING CURVE PEAK FORWARD SURGE CURRENT, AMPERES SOD123FL Plastic-Encapsulate Schottky Barrier Rectifiers SCHOTTKY FIG. 4-TYPICAL REVERSE CHARACTERISTICS 100 10 1 TJ=75 C 0.1 TJ=25 C 0.01 0.001 INSTANTANEOUS FORWARD VOLTAGE, VOLTS TJ=100 C 0 20 40 60 80 100 PERCENT OF PEAK REVERSE VOLTAGE,% JUNCTION CAPACITANCE, pF FIG. 5-TYPICAL JUNCTION CAPACITANCE 2000 1000 DSS22-DSS24 DSS25-DSS210 100 TJ=25 C 10 0.1 1.0 10 100 REVERSE VOLTAGE,VOLTS SOD-123FL PACKAGE OUTLINE Plastic surface mounted package Rev 8: Nov 2014 www.born-tw.com Page 2 of 2
