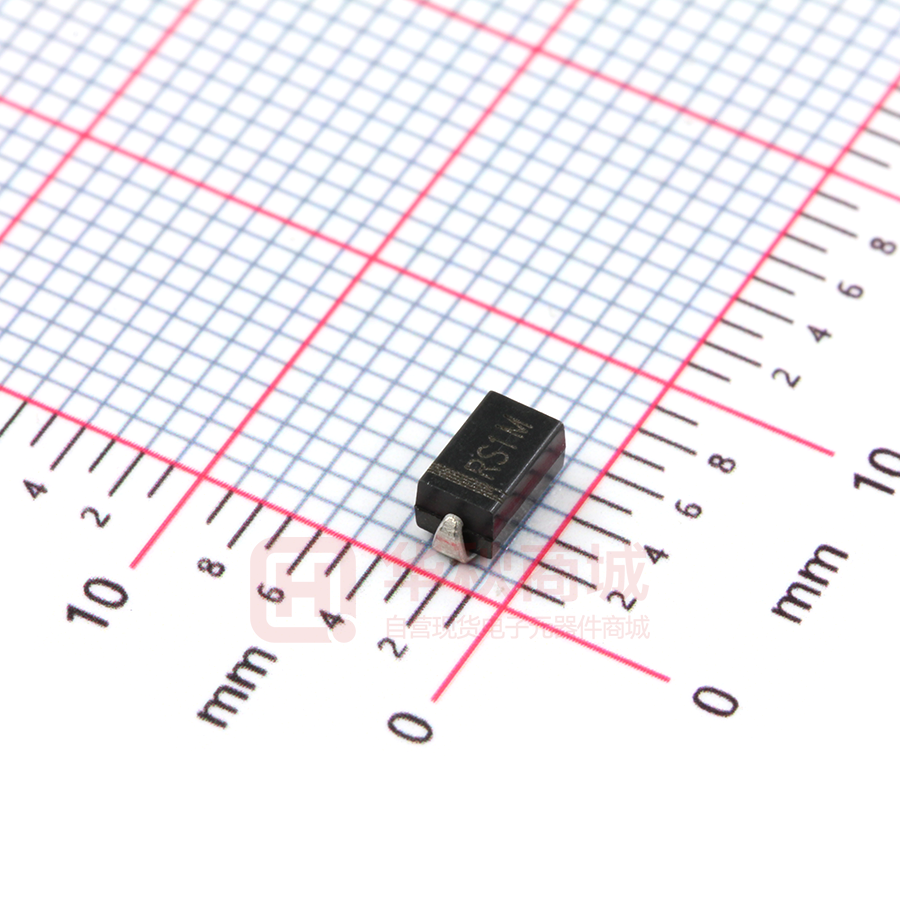

RS1M

RS1A-RS1M SERIES RECTIFIERS SMA FAST SURFACE MOUNT RECTIFIERS ROHS FEATURES       Low cost Diffused junction Low Leakage Low forward voltage drop High current capability Easily cleaned with Freon. Alcohol. Lsopropanol and similar solvents  The plastic material carries U/L recognition 94V-O MECHANICAL DATA . molded plastic  Case: JEDEC DO-214AC  Terminals: Axial leads. Solderable per MIL - STD - 750. Method 2026  Polarity: Color band denotes cathode  Weight: 0.041 ounce. 1.15 grams  Mounting position: Any MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ℃ ambient temperature unless otherwise specified. Single phase. half wave. 60HZ. resistive or inductive load. For capacitive load. derate current by 20％ SYMBOL RS1A RS1B RS1D RS1G RS1J RS1K RS1M UNITS Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at TL = 110℃ I(AV) 1.0 A IFSM 30 A VF 1.3 V Peak Forward Surge Current 8.3ms Single half-sine-wave superimposed on rated Tj = 125℃ Maximum Forward Voltage at 1.0A DC Maximum Reverse Current TA = 25℃ at Rated DC Blocking Voltage T A = 100℃ 10 IR μA 50 Maximum reverse recovery time（Note 1） trr Typical Junction Capacitance ( Note ２ ) Cj 15 pF Typical Thermal Resistance ( Note ３ ) RQJA 55 ℃/W Tj 55 to 150 ℃ TSTG 55 to 150 ℃ Operating Junction Temperature Range Storage Temperature Range NOTE: 150 250 500 ns 1. Reverse revovery condition IF=0.5A IR=1.0A Irr=0.25A. 2. Measured at 1.0MHZ and applied reverse voltage of 4.0V DC. 3. Thermal Resistance Junction to Ambient. Rev 8: Nov 2014 www.born-tw.com 112 Page 1 of 2 RS1A-RS1M SERIES RECTIFIERS SMA FAST SURFACE MOUNT RECTIFIERS ROHS TYPICAL FORWARD CHARACTERISTIC FORWARD CURRENT DERATING CURVE MAXIMUM NON REPETITIVE PEAK FORWARD SURGE CURRENT TYPICAL REVERSE CHARACTERISTICS TYPICAL JUNCTION CAPACITANCE Rev 8: Nov 2014 www.born-tw.com 112 Page 2 of 2
