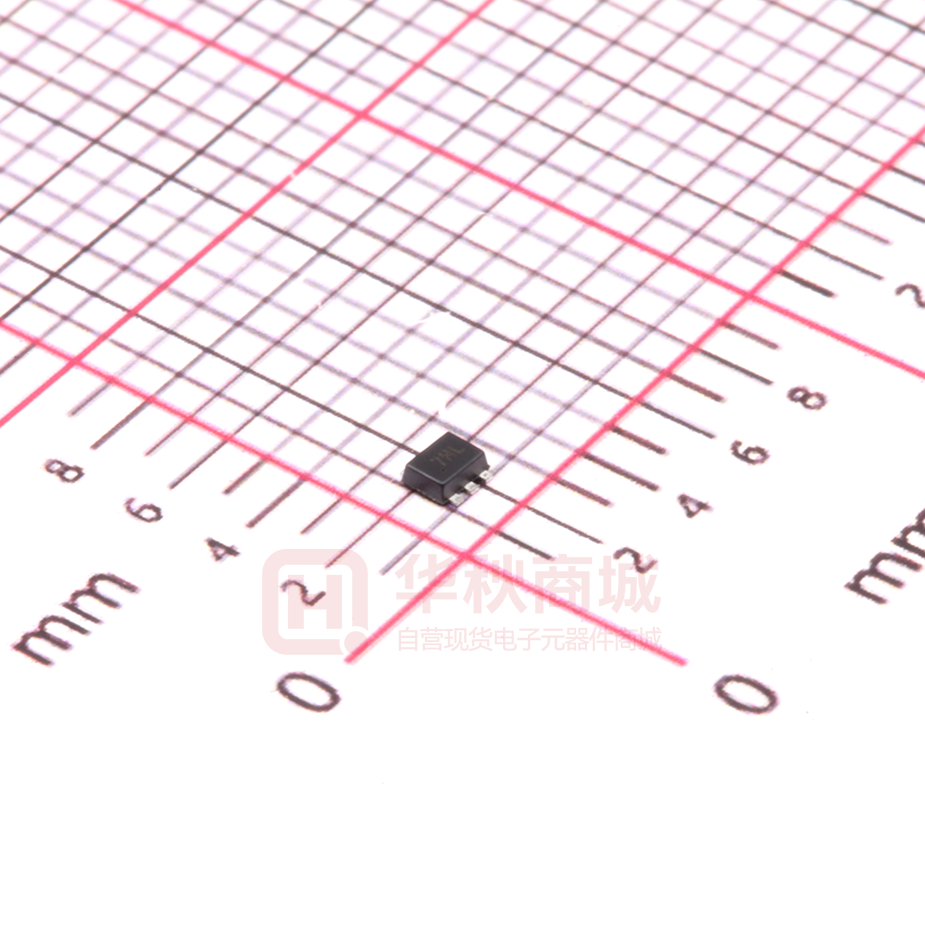

ESDA6V8AV6-6/TR

ESDA6V8AV6 ESDA6V8AV6 Low Junction Capacitance Transient Voltage Suppressors for ESD Protection http://www.willsemi.com Description: The ESDA6V8AV6 array is 5-Line ESD transient voltage suppressor which provides a very high level of protection for sensitive electronic components that may be subjected to electrostatic discharge (ESD). These devices clamp the voltage just above the logic level supply for positive transient, and to a diode drop below ground for negative transients. The ESDA6V8AV6 safely dissipates ESD strikes of ±20kV, exceeding the maximum requirement of the IEC 61000-4-2 international standard. Using the MILSTD-883 (Method 3015) specification for Human Body Model (HBM) ESD, the device provides protection for contact discharges to greater than ±16kV. The ESDA6V8AV6 is available in a SOT-563 SMT package with working voltages of 5 volt. SOTï563 1 6 2 5 3 4 MARKING DIAGRAM xx M Specification Features: zWorking Peak Reverse Voltage: 5 V zLow Leakage current: 20kV per HBM zIEC61000- 4- 2 Level 4 ESD Protection zIEC61000- 4- 4 Level 4 EFT Protection zFive separate unidirectional configurations xx = Specific Device Code M = Date Code Mechanical Characteristics zVoid Free, Transfer-Molded, Thermosetting Plastic Case zCorrosion Resistant Finish, Easily Solderable zSmall Packaging Ordering Information  Package Shipping ESDA6V8AV6-6/TR SOT-563 3000 Tape & Reel Applications zCell Phone Handsets and Accessories zPersonal Digital Assistants (PDA's) zNotebooks, Desktops, and Servers zPortable Instrumentation zDigital Cameras zPeripherals zMP3 Players http://www.willsemi.com Device
Page 1 2/2/2008 Rev2.0 ESDA6V8AV6 Absolute Maximum Rating Rating Peak Pulse Power(tp=8/20us) Maximum Peak Pulse Current(tp=8/20us) ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) Maximum lead temperature for soldering during 10s Storage Temperature Range Operating Temperature Range Symbol Ppp Ipp Value 20 1.6 Units W A Vpp KV TL ±20 ±16 260 Tstg Top -55~+150 -55~+125 o C o C C o Electrical Parameter Symbol IPP VC VRWM IR IT VBR IF VF Parameter Maximum Reverse Peak Pulse Current Clamping Voltage @ IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Test Current Breakdown Voltage @ IT Forward Current Forward Voltage @ IF I IF VF VC VBR VRWM IR V IPP http://www.willsemi.com Page 2 2/2/2008 Rev2.0 ESDA6V8AV6 Electrical Characteristics (T=25oC, Device for 5.0V Working Peak Reverse Voltage) Conditions Minimum Typical IR VRWM=5V VF IF= -10mA -0.4 -0.8 VBR IT=1mA 6.2 6.8 I PP=1A, tp = 8/20us, note1 VC IPP=1.6A, tp = 8/20us, note1 C Pin1 to 2 VR = 0V, f = 1MHz 9 Maximum 0.5 -1.25 7.2 12 14.4 Unit uA V V V V pF Note1: Surge current waveform per Figure 1. Typical Characteristics Figure 2. Power Derating Curve Figure 1. Pulse Waveform 110 WAVEFORM PARAMETERS tr = 8 ms td = 20 ms 90 PERCENT OF IPP 80 70 110 100 cït 60 td = IPP/2 50 90 % of Rated Power or I PP 100 40 30 80 70 60 50 40 30 20 20 10 0 0 10 5 10 15 20 25 0 30 0 25 Figure 3. Non-Repetitive Peak Pulse Power vs. Pulse Time 75 100 125 150 Figure 4. Junction Capacitance vs. Reverse Voltage 10 10 Capacitance - Cj (pF) Peak Pulse Power - P PP (kW) 50 Ambient Temperature - TA (oC) t, TIME (ms) 1 0.1 0.01 0.1 1 10 Pulse Duration - tp (Ps) http://www.willsemi.com 100 1000 8 6 4 2 0 Page 3 1 2 3 Reverse Voltage - VR (V) 4 5 2/2/2008 Rev2.0 ESDA6V8AV6 Package mechanical data C A 6 1 5 4 2 3 D DIM A B C D G J K S K B S 5 PL 6 J MILLIMETERS MIN MAX 1.50 1.70 1.10 1.30 0.50 0.60 0.17 0.27 0.50 BSC 0.08 0.18 0.10 0.30 1.50 1.70 INCHES MIN MAX 0.059 0.067 0.043 0.051 0.020 0.024 0.007 0.011 0.020 BSC 0.003 0.007 0.004 0.012 0.059 0.067 STYLE 6: PIN 1. CATHODE 2. ANODE 3. CATHODE 4. CATHODE 5. CATHODE 6. CATHODE G SOLDERING FOOTPRINT 0.3 0.0118 0.45 0.0177 1.35 0.0531 1.0 0.0394 0.5 0.5 0.0197 0.0197 SCALE 20:1 http://www.willsemi.com Page4 mm Ǔ ǒinches 2/2/2008 Rev2.0
