WPM3401
WPM3401
Single P-Channel, -30V, -4.6A, Power MOSFET
VDS (V)
www.sh-willsemi.com
Max RDS (on) (mΩ)
-30
53@ VGS=-10V
56@ VGS=-4.5V
Descriptions
SOT-23-3L
The WPM3401 is the P-Channel logic enhancement
D
mode power field effect transistors are produced using
3
high cell density, DMOS trench technology. This high
density process is especially tailored to minimize onstate resistance. These devices are particularly suited
for low voltage application, notebook computer power
management and other battery powered circuits where
1
2
G
S
high-side switching.
Pin configuration (Top view)
Features
3
Trench Technology
Supper high density cell design
Excellent ON resistance for higher DC current
Small package SOT-23-3L
WP1U
1
2
WP1= Specific Device Code
U
Applications
Power Management in Note book
Portable Equipment
Battery Powered System
DC/DC Converter
Load Switch
Will Semiconductor Ltd.
= Date Code
Marking
Order information
1
Device
Package
Shipping

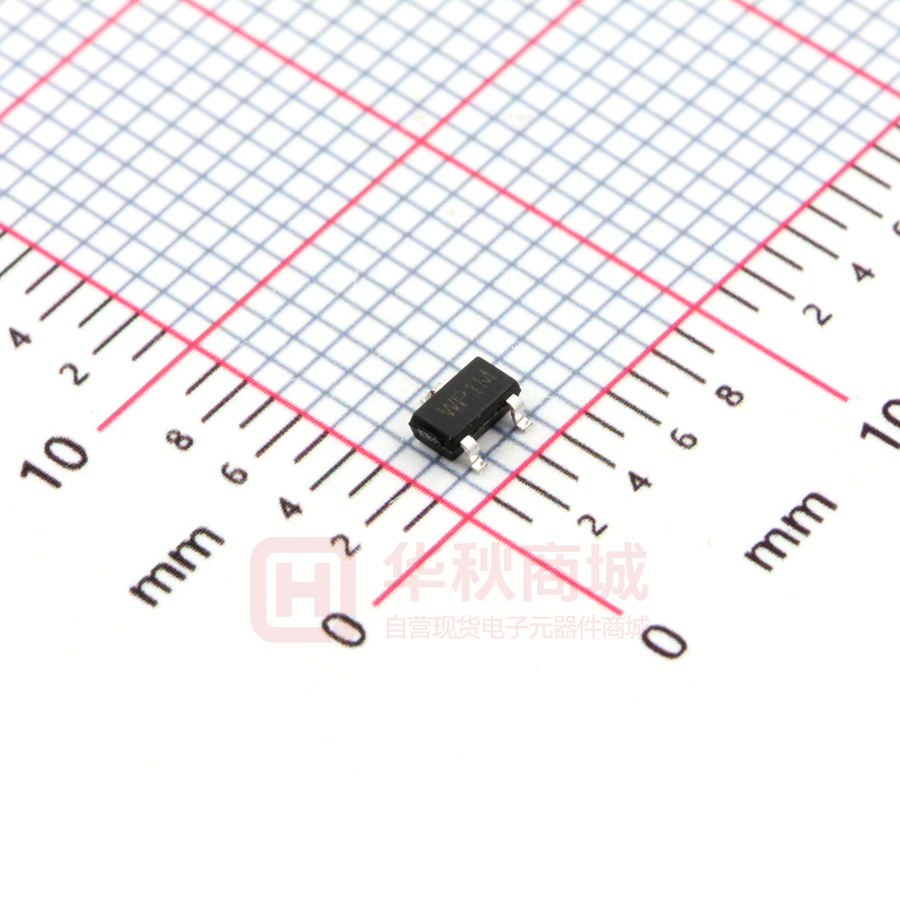

WPM3401-3/TR
SOT-23-3L
3000/Reel&Tape
2016/04/25 – Rev.2.5
WPM3401
Absolute Maximum ratings
Parameter
Symbol
10 s
Steady State
Drain-Source Voltage
VDS
-30
Gate-Source Voltage
VGS
±12
Continuous Drain Current
TA=25°C
a
PD
TA=70°C
TA=25°C
b
Maximum Power Dissipation
Pulsed Drain Current
ID
TA=70°C
Maximum Power Dissipation
Continuous Drain Current
TA=25°C
a
ID
TA=70°C
TA=25°C
b
PD
TA=70°C
c
Unit
V
-5.5
-4.6
-4.4
-3.6
1.7
1.3
1.1
0.8
-5.0
-4.2
-4.0
-3.4
1.4
1.0
0.9
0.6
A
W
A
W
IDM
-20
A
Operating Junction Temperature
TJ
150
°C
Lead Temperature
TL
260
°C
Storage Temperature Range
Tstg
-55 to 150
°C
Thermal resistance ratings
Parameter
Symbol
Junction-to-Ambient Thermal Resistance
a
Junction-to-Ambient Thermal Resistance
b
Junction-to-Case Thermal Resistance
t ≤ 10 s
Steady State
t ≤ 10 s
Steady State
Steady State
RθJA
RθJA
RθJC
Typical
Maximum
70
90
95
125
85
105
120
150
40
60
a
Surface mounted on FR-4 Board using 1 square inch pad size, 1oz copper
b
Surface mounted on FR-4 board using minimum pad size, 1oz copper
c
Pulse width
