WPM1481-6/TR

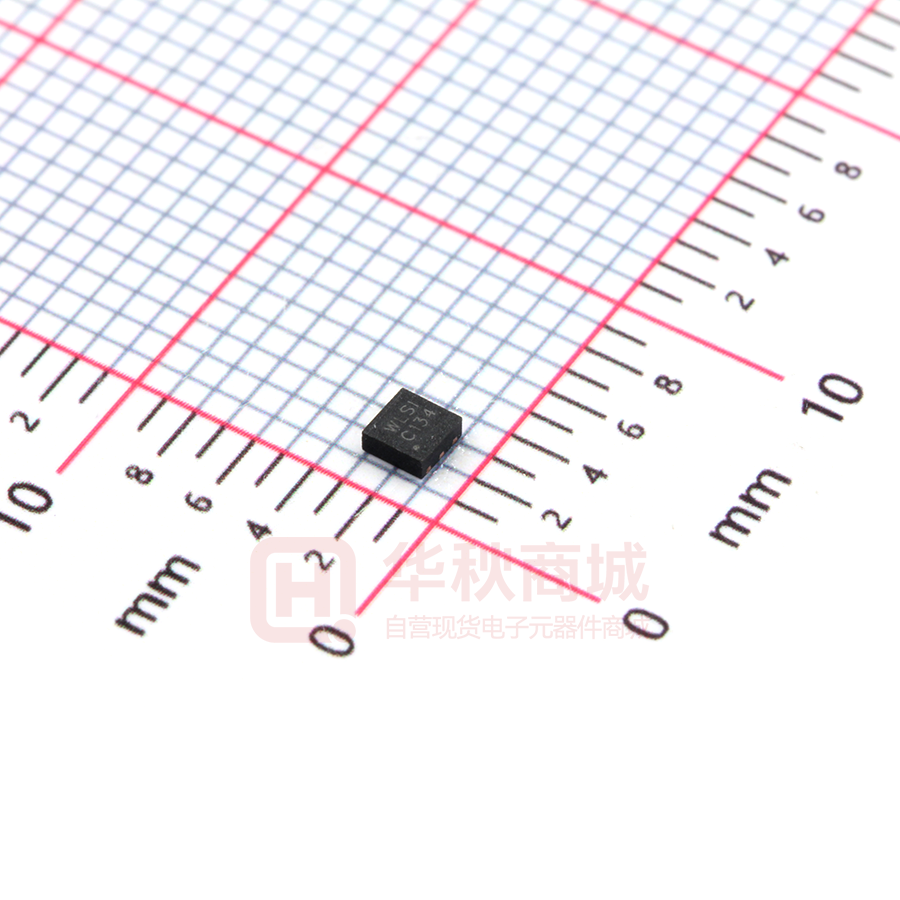

WPM1481 WPM1481 Http://www.sh-willsemi.com Single P-Channel, -12V, -5.1A, Power MOSFET Typical Rds(on) (Ω) ID (A) 0.024@ VGS= - 4.5V -5.5 0.032@ VGS= - 2.5V -4.0 0.047@ VGS= - 1.8V -2.5 VDS (V) -12 DFN2*2-6L Descriptions D 6 The WPM1481 is P-Channel enhancement MOS D 5 S 4 D Field Effect Transistor. Uses advanced trench technology and design to provide excellent RDS (ON) S with low gate charge. This device is suitable for use 1 D in DC-DC conversion, power switch and charging circuit. Standard Product WPM1481 is Pb-free. 2 D 3 G Pin configuration (Top view) Features 6  Trench Technology  Supper high density cell design  Excellent ON resistance for higher DC current  Extremely Low Threshold Voltage  Small package DFN2*2-6L 5 4 WLSI CYWW 1 2 3 WLSI = Company Code C = Device Code Y = Year WW = Week Marking Applications Order information  Driver for Relay, Solenoid, Motor, LED etc.  DC-DC converter circuit  Power Switch  Load Switch  Charging Will Semiconductor Ltd. Device WPM1481- 6/TR 1 Package DFN2*2-6L Shipping 3000/Reel&Tape 2017/08/05- Rev.1.5 WPM1481 Absolute Maximum ratings Parameter Symbol 10 S Steady State Drain-Source Voltage VDS -12 Gate-Source Voltage VGS ±12 Continuous Drain Current ID TA=70°C Maximum Power Dissipation Continuous Drain Current TA=25°C ad TA=25°C ad PD TA=70°C TA=25°C bd ID TA=70°C Maximum Power Dissipation TA=25°C bd PD TA=70°C c Unit V -5.1 -4.3 -4.0 -3.4 1.9 1.4 1.2 0.9 -3.7 -3.0 -3.0 -2.4 1.0 0.6 0.6 0.4 A W A W IDM -24 A Operating Junction Temperature TJ -55~150 °C Lead Temperature TL 260 °C Storage Temperature Range Tstg -55 ~150 °C Pulsed Drain Current Thermal resistance ratings Parameter Symbol Junction-to-Ambient Thermal Resistance a Junction-to-Ambient Thermal Resistance b Junction-to-Case Thermal Resistance t ≤ 10 s Typical Maximum 49 64 66 88 84 118 125 180 32 42 RθJA Steady State t ≤ 10 s RθJA Steady State RθJC Steady State a Surface mounted on FR-4 Board using 1 square inch pad size, 1oz copper b Surface mounted on FR-4 board using minimum pad size, 1oz copper c Pulse width
