B0300TB-AL

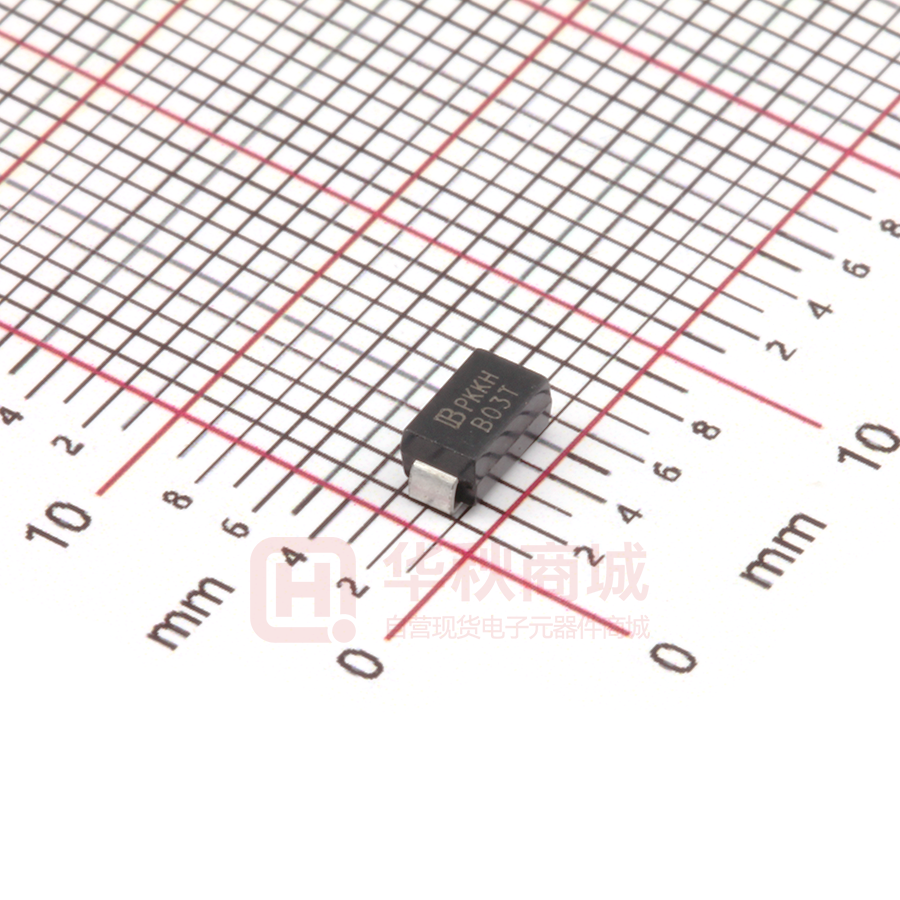

B0300TB-AL Thyristor Surge Suppressors (TSS) Data Sheet Description DO-214AC Thyristor solid state protection thyristor protect telecommunications equipment such as modems, line cards, fax machines, and other CPE. B Series devices are used to enable equipment to meet various regulatory requirements including GR 1089, ITU K.20, K.21 and K.45, IEC 60950, UL 60950, and TIA-968 (formerly known as FCC Part 68). Features Compared to surge suppression using other technologies, B Series devices offer absolute surge protection regardless of the surge current available and the rate of applied voltage (dv/dt). B Series devices: ■ Cannot be damaged by voltage ■ Eliminate hysteresis and heat dissipation typically found with clamping devices ■ Eliminate voltage overshoot caused by fast-rising transients ■ Are non-degenerative ■ Will not fatigue ■ Have low capacitance, making them ideal for high-speed transmission equipment ■ Meets MSL level 1, per J-STD-020 Electrical Parameters Parameter Definition VDRM Peak Off-state Voltage – maximum voltage that can be applied while maintaining off state VS Switching Voltage – maximum voltage prior to switching to on state VT On-state Voltage – maximum voltage measured at rated on-state current IDRM Leakage Current – maximum peak off-state current measured at VDRM IS Switching Current – maximum current required to switch to on state IT On-state Current – maximum rated continuous on-state current IH Holding Current – typical current required to maintain on state CO Off-state Capacitance – typical capacitance measured in off state IPP Peak Pulse Current – maximum rated peak impulse current Revision：TSS-B0300TB-AL-001(A0)-1064360 www.brightking.yageo.com B0300TB-AL Electrical Characteristics Part Number Type ④ VDRM (V) VS (V) VT (V) IDRM (μA) IS (mA) IT (A) IH (mA) CO (pF) IPP 10×1000μs (A) Marking B0300TB AL 25 40 4 5 800 2.2 10 50 75 B03T Notes: ·①All measurements are made at an ambient temperature of 25℃. IPP applies to -40℃ through +85℃ temperature range. ·②Off-state capacitance(CO) is measured at 1 MHz with a 2V bias and is typical value. ·③Rating Surge Voltage: 4KV, ±5 times (10/700μs) ·④Specific code by request. Thermal Considerations Package DO-214AC/SMA Symbol Parameter Value Unit TJ Operating Junction Temperature -40 to +125 ℃ TS Storage Temperature Range -40 to +150 ℃ RθJA Junction to Ambient on printed circuit 120 ℃/W Part Number Code and Marking B 0 3 0 Voltage Series Code 0 T Package B A L Internal Control Code Logo YXXX B03T Date Code Device Marking Code Surge Current Revision：TSS-B0300TB-AL-001(A0)-1064360 www.brightking.yageo.com B0300TB-AL Characteristics Curves Figure 1. V-I Characteristics Figure 2. tr × td Pulse Wave-form +I IT IS IH IDRM -V +V VT VDRM VS IPP - Peak Pulse Current, %IPP tr = rise time to peak value td = decay time to half value Waveform = tr × td 50 0 -I Half Value 0 td tr t-Time (µs) Figure 3. Normalized Vs Change versus Junction Temperature Figure 4. Normalized DC Holding Current versus Case Temperature 16 14 12 10 2.0 8 1.4 1.8 1.6 Ratio of IH/IH(TC=25℃) Percent of VS, Change - % Peak Value 100 6 25℃ 4 2 0 1.2 25℃ 1.0 0.8 -4 0.6 -6 -8 -40 -20 0 20 40 60 80 100 120 140 160 TJ-Junction Temperature (℃) Revision：TSS-B0300TB-AL-001(A0)-1064360 0.4 -40 -20 0 20 40 60 80 100 120 140 160 TC-Case Temperature (℃) www.brightking.yageo.com B0300TB-AL Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) ( tS) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate Time 25℃ to Peak Temperature Revision：TSS-B0300TB-AL-001(A0)-1064360 20-40 seconds 6℃/second max. 8 minutes max. www.brightking.yageo.com B0300TB-AL Dimensions (SMA/DO-214AC) Millimeters Inches Symbol D1 D L Min. Max. Min. Max. L 4.22 4.70 0.166 0.185 D 3.40 3.94 0.134 0.155 D1 1.90 2.20 0.075 0.086 T 5.21 5.59 0.205 0.220 T1 0.91 1.42 0.036 0.056 d 0.05 0.20 0.002 0.008 H 1.95 2.40 0.077 0.095 H d T1 T Packaging Tape P0 P1 P2 D0 B T E F A A D1 B W B0 K0 SECTION B-B A0 SECTION A-A Symbol Dimension (mm) W 12.00±0.20 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.10 D0 Φ1.50±0.10 D1 Φ1.50±0.10 E 1.75±0.10 F 5.50±0.10 A0 2.79±0.10 B0 5.33±0.10 K0 2.55±0.10 T 0.25±0.05 D2 Φ330.0±2.0 D3 Φ13.5±0.5 H 2.5±0.5 W1 16.0±1.0 13”Reel Quantity: 5000PCS Revision：TSS-B0300TB-AL-001(A0)-1064360 www.brightking.yageo.com
