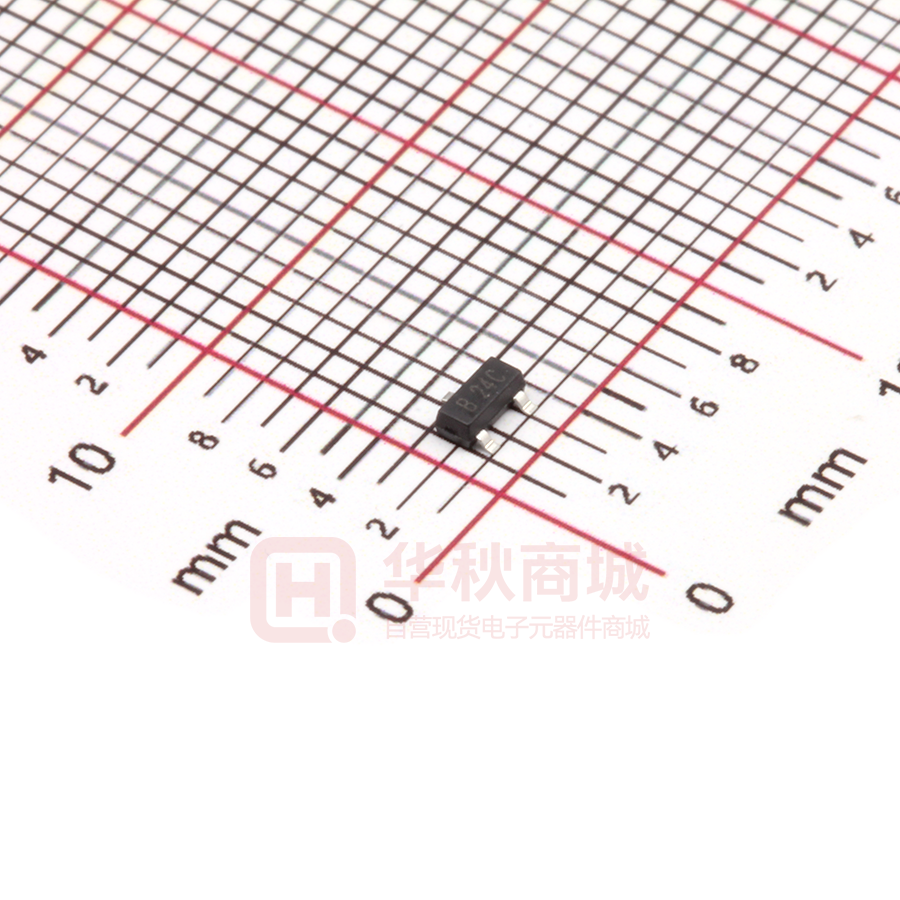

SET23A24L02

SET23AXXL02 SERIES Electrostatic Discharged Protection Devices (ESD) Data Sheet Description Brightking’s SET23AXXL02 series of transient voltage suppressor (TVS) are designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT) and lightning. TVS diodes are characterized by their high surge capability, low operating and clamping voltages, and fast response time. This makes them ideal for use as board level protection of sensitive semiconductor components. The low profile SOT-23 package allows flexibility in the design of crowded circuit boards. Features ● ● ● ● ● ● ● ● ● ● ● IEC61000-4-2 ESD 15KV Air, 8KV contact compliance SOT-23 surface mount package Protects one bidirectional line or two unidirectional lines Working voltage: 3.3V, 5V, 12V, 15V, 24V and 36V Low leakage current Low operating and clamping voltages Solid-state silicon avalanche technology Lead Free/RoHS compliant Solder reflow temperature: Pure Tin-Sn, 260~270℃ Flammability rating UL 94V-0 Meets MSL level 1, per J-STD-020 Applications Pin Configuration LINE 1 LINE 1 SET23AXXL02 ● ● ● ● ● ● ● Cellular handsets and accessories Personal digital assistants (PDA’s) Portable instrumentation Set Top Box (STB) Servers, notebook, and desktop PC Wireless bus protection RS-232, RS-422, RS-423 protection X LINE 2 LINE 2 Bidirectional Protect Line LINE 1 LINE 1 LINE 2 LINE 2 SET23AXXL02 Unidirectional Protect Lines Revision：31-Jul-15 www.brightking.com SET23AXXL02 SERIES Maximum Ratings Rating Symbol Value ESD voltage (Contact discharge) Unit ±8 VESD kV ESD voltage (Air discharge) ±15 Storage & operating temperature range TSTG ,TJ -55~+150 ℃ Electrical Characteristics (TJ=25℃) SET23A03L02 (Marking: B 03C) Parameter Reverse stand-off voltage Reverse breakdown voltage Symbol Condition Min. Typ. VRWM Max. Unit 3.3 V VBR IBR=1mA 4 V Reverse leakage current IR VR=3.3V Each I/O pin 5 μA Clamping voltage (tp=8/20μs) VC IPP=1A 7.5 V Clamping voltage (tp=8/20μs) VC IPP=10A 15 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND Symbol Condition 200 pF SET23A05L02 (Marking: B 05C) Parameter Reverse stand-off voltage Reverse breakdown voltage Min. Typ. VRWM Max. Unit 5 V VBR IBR=1mA Reverse leakage current IR VR=5V Each I/O pin 5 μA Clamping voltage (tp=8/20μs) VC IPP=1A 9.8 V Clamping voltage (tp=8/20μs) VC IPP=15A 20 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND Revision：31-Jul-15 6 V 220 pF www.brightking.com SET23AXXL02 SERIES Electrical Characteristics (TJ=25℃) SET23A12L02 (Marking: B 12C) Parameter Reverse stand-off voltage Reverse breakdown voltage Symbol Condition Min. Typ. VRWM Max. Unit 12 V VBR IBR=1mA 13.3 V Reverse leakage current IR VR=12V Each I/O pin 1 μA Clamping voltage (tp=8/20μs) VC IPP=1A 19 V Clamping voltage (tp=8/20μs) VC IPP=10A 25.9 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND Symbol Condition 100 pF SET23A15L02 (Marking: B 15C) Parameter Reverse stand-off voltage Reverse breakdown voltage Min. Typ. VRWM Max. Unit 15 V VBR IBR=1mA 16.7 V Reverse leakage current IR VR=15V Each I/O pin 1 μA Clamping voltage (tp=8/20μs) VC IPP=1A 24 V Clamping voltage (tp=8/20μs) VC IPP=10A 30 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND Symbol Condition 90 pF SET23A24L02 (Marking: B 24C) Parameter Reverse stand-off voltage Reverse breakdown voltage Min. Typ. VRWM Max. Unit 24 V VBR IBR=1mA Reverse leakage current IR VR=24V each I/O pin 1 μA Clamping voltage (tp=8/20μs) VC IPP=1A 43 V Clamping voltage (tp=8/20μs) VC IPP=5A 49 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND Revision：31-Jul-15 26.7 V 80 pF www.brightking.com SET23AXXL02 SERIES Electrical Characteristics (TJ=25℃) SET23A36L02 (Marking: B 36C) Parameter Symbol Reverse stand-off voltage Condition Min. Typ. VRWM Reverse breakdown voltage Max. Unit 36 V VBR IBR=1mA 40 V Reverse leakage current IR VR=36V each I/O pin 1 μA Clamping voltage (tp=8/20μs) VC IPP=1A 51 V Clamping voltage (tp=8/20μs) VC IPP=5A 76.8 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND 70 pF Typical Characteristics Curves Figure 1. Power Derating Curve Figure 2. Pulse Waveforms 110 100 Peak Power Dissipation (%) 100 90 Peak value Ipp Waveform Parameters: tr=8µs td=20µs 90 80 80 70 70 60 60 50 50 40 40 30 30 20 20 10 10 0 tr 0 25 50 75 100 125 150 TA-Ambient Temperature (℃) 0 0 5 10 15 20 25 30 t-Time (μs) Figure 4. ESD Clamping(8kV Contact IEC61000-4-2) Forward Voltage (V) Figure 3. Forward Voltage vs. Forward Current 175 td=t|IPP/2 Revision：31-Jul-15 www.brightking.com SET23AXXL02 SERIES Recommended Soldering Conditions Reflow Soldering Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate Time 25℃ to Peak Temperature Revision：31-Jul-15 20-40 seconds 6℃/second max. 8 minutes max. www.brightking.com SET23AXXL02 SERIES Dimensions (SOT-23) Dimension Symbol Millimeters Inches Min. Max. Min. Max. A 0.08 0.18 0.003 0.007 B 0.15 - 0.006 - C - 0.13 - 0.005 D 0.89 1.09 0.035 0.043 E 2.80 3.05 0.110 0.120 F 1.90 0.075 G 0.95 0.037 H 1.19 1.40 0.047 0.055 I 2.10 2.49 0.083 0.098 J 0.35 0.50 0.014 0.020 Packaging Tape Reel Symbol Dimension (mm) W 8.00±0.30 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.10 D1 Φ1.00±0.05 E 1.75±0.10 F 3.50±0.10 A 3.10±0.10 A0 2.10±0.10 B 2.75±0.10 B0 0.65±0.10 K 1.10±0.10 t 0.20±0.05 D Φ178.0±2.0 D2 Φ13.0 W1 9.5 Quantity: 3000PCS Revision：31-Jul-15 www.brightking.com
