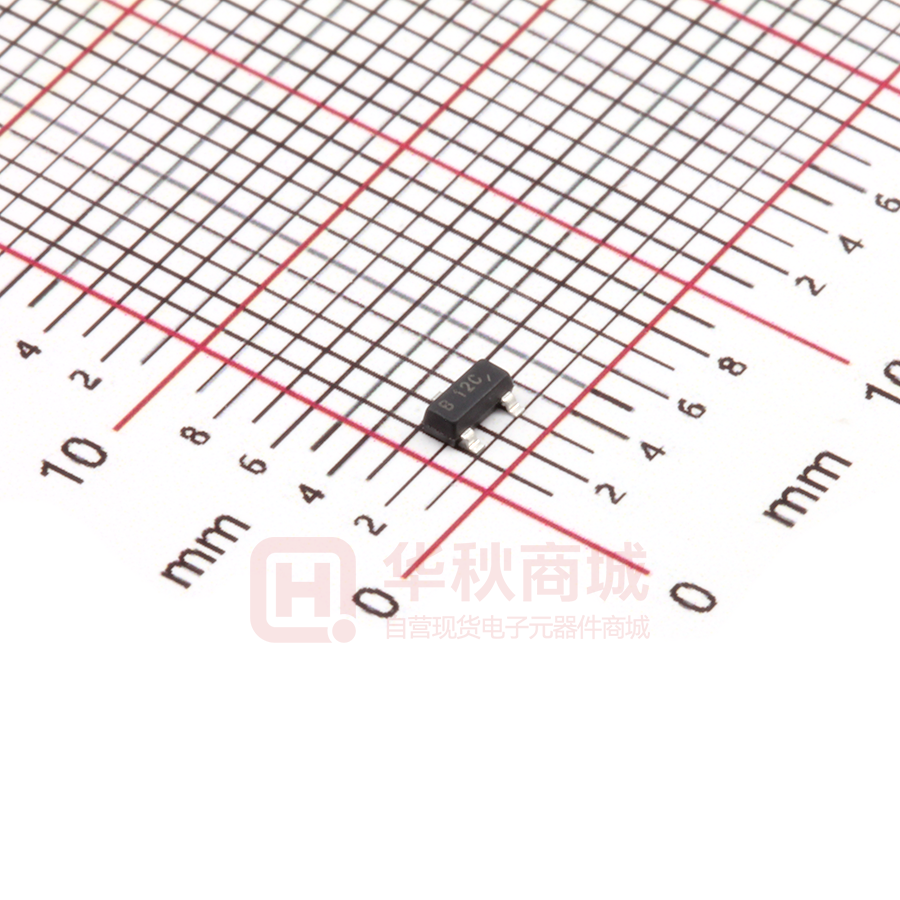

SET23A12L02-E18 Electrostatic Discharged Protection Devices (ESD) Data Sheet Description Brightking’s SET23A12L02-E18 is designed to protect components which are connected to data and transmission lines from voltage surges caused by electrostatic discharge (ESD), electrical fast transients (EFT) and lightning. TVS diodes are characterized by their high surge capability, low operating and clamping voltages, and fast response time. This makes them ideal for use as board level protection of sensitive semiconductor components. The low profile SOT-23 package allows flexibility in the design of crowded circuit boards. Features ● ● ● ● ● ● ● ● ● ● ● ● ● IEC61000-4-2 ESD 30KV Air, 30KV contact compliance SOT-23 surface mount package Protects one bidirectional line or two unidirectional lines Working voltage: 12V Low leakage current Low operating and clamping voltages Solid-state silicon avalanche technology Lead Free/RoHS compliant Solder reflow temperature: Pure Tin-Sn, 260~270℃ Flammability rating UL 94V-0 Meets MSL level 1, per J-STD-020 Marking: B 12C Weight: 0.008g Applications 3 1 Pin Configuration LINE 1 LINE 1 SET23AXXL02 ● ● ● ● ● ● ● Cellular handsets and accessories Personal digital assistants (PDA’s) Portable instrumentation Set Top Box (STB) Servers, notebook, and desktop PC Wireless bus protection RS-232, RS-422, RS-423 protection 2 X LINE 2 LINE 2 Bidirectional Protect Line LINE 1 LINE 1 LINE 2 LINE 2 SET23AXXL02 Unidirectional Protect Lines Revision: ESD-SET23A12L02-E18 -001(A0) 2/7 brightking.yageo.com SET23A12L02-E18 Maximum Ratings Rating Peak pulse power (tp=8/20μs waveform) Symbol Value Unit PPP 500 W ±30 ESD voltage (Contact discharge) kV VESD ESD voltage (Air discharge) ±30 TSTG ,TJ Storage & operating temperature range -55~+150 ℃ Electrical Characteristics (TJ=25℃) Parameter Reverse stand-off voltage Symbol Condition Min. Typ. VRWM Max. Unit 12 V VBR IBR=1mA Reverse leakage current IR VR=12V Each I/O pin 1 μA Clamping voltage (tp=8/20μs) VC IPP=1A 19 V Clamping voltage (tp=8/20μs) VC IPP=18A 27 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND Reverse breakdown voltage Revision: ESD-SET23A12L02-E18 -001(A0) 3/7 13.3 V 100 pF brightking.yageo.com SET23A12L02-E18 Typical Characteristics Curves Figure 1. Power Derating Curve Figure 2. Pulse Waveforms Figure 3. Forward Voltage vs. Forward Current Figure 4. ESD Clamping(8kV Contact IEC61000-4-2) Revision: ESD-SET23A12L02-E18 -001(A0) 4/7 brightking.yageo.com SET23A12L02-E18 Recommended Soldering Conditions Temperature Reflow Soldering Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) 6℃/second max. Ramp-down Rate Time 25℃ to Peak Temperature Revision: ESD-SET23A12L02-E18 -001(A0) 20-40 seconds 8 minutes max. 5/7 brightking.yageo.com SET23A12L02-E18 Dimensions (SOT-23) Dimension Symbol Millimeters Inches Min. Max. Min. Max. A 0.08 0.18 0.003 0.007 B 0.15 - 0.006 - C - 0.13 - 0.005 D 0.89 1.09 0.035 0.043 E 2.80 3.05 0.110 0.120 F 1.90 0.075 G 0.95 0.037 H 1.19 1.40 0.047 0.055 I 2.10 2.49 0.083 0.098 J 0.35 0.50 0.014 0.020 Packaging Tape Reel Symbol Dimension (mm) W 8.00±0.30 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.10 D1 Φ1.00±0.05 E 1.75±0.10 F 3.50±0.10 A 3.10±0.10 A0 2.10±0.10 B 2.75±0.10 B0 0.65±0.10 K 1.10±0.10 t 0.20±0.05 D Φ178.0±2.0 D2 Φ13.0 W1 9.5 Quantity: 3000PCS Revision: ESD-SET23A12L02-E18 -001(A0) 6/7 brightking.yageo.com SET23A12L02-E18 Label Note: E18 is special code for customer’s requirement. Box 180mm*180mm*68mm Revision: ESD-SET23A12L02-E18 -001(A0) 7/7 brightking.yageo.com
