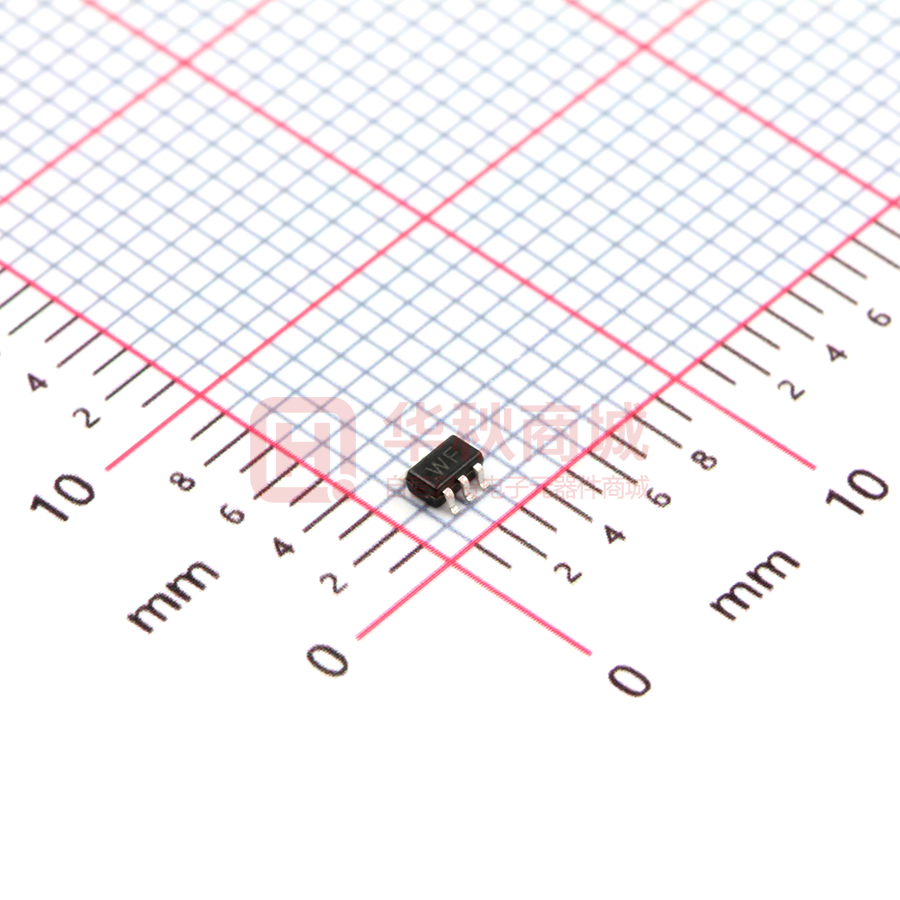

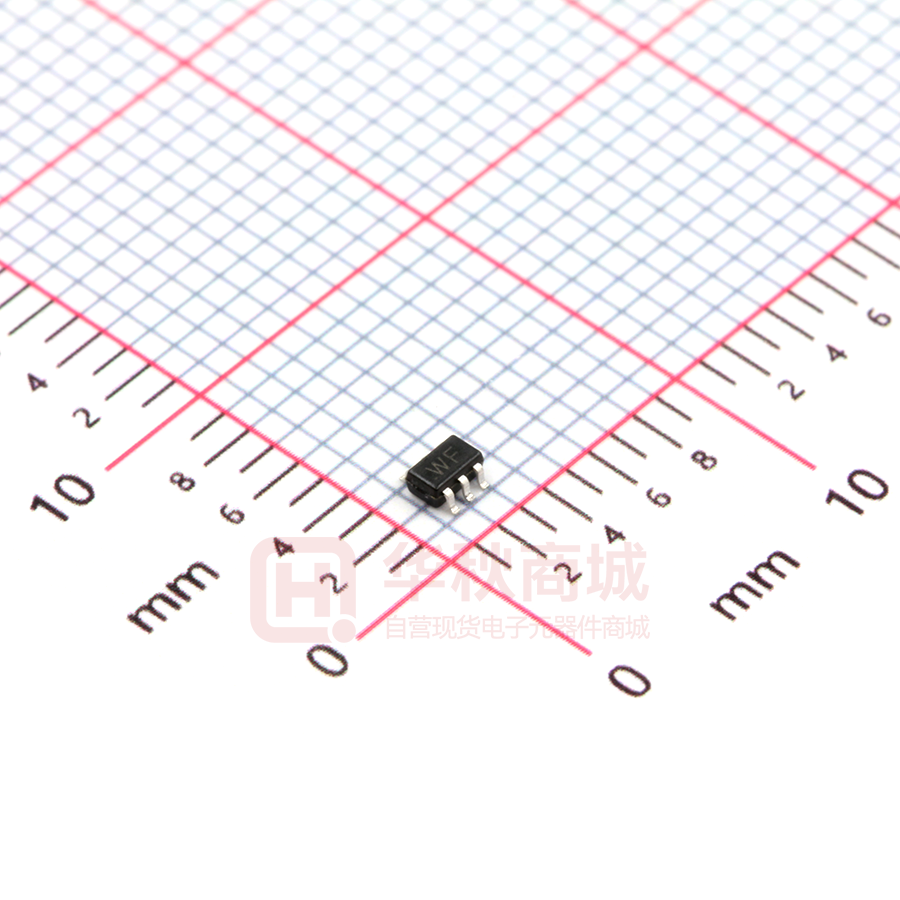

SAT36A05L05 Electrostatic Discharged Protection Devices (ESD) Data Sheet Description Brightking’s SAT36A05L05 is designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage induced transient events. It is designed for use in applications where board space is at a premium. Each device will protect up to five lines. It is unidirectional devices and may be used on lines where the signal polarities are above ground. The low profile SOT-363 package allows flexibility in the design of crowed circuit boards. Features ● ● ● ● ● ● ● ● ● ● ● ● ● IEC61000-4-2 ESD 15KV Air, 8KV contact compliance SOT-363 surface mount package Protects five unidirectional lines Peak power dissipation of 100W under 8/20μs waveform Working voltage: 5V Low leakage current Low operating and clamping voltages Solid-state silicon avalanche technology Lead Free/RoHS compliant Solder reflow temperature: Pure Tin-Sn, 260~270℃ Flammability rating UL 94V-0 Meets MSL level 1, per J-STD-020 Marking: WF or 05C 6 5 4 1 2 3 Pin Configuration ● AEC-Q101 qualified Applications ● ● ● ● ● ● Cell phone handsets and accessories Personal digital assistants (PDA’s) Portable instrumentation Set Top Box (STB) Servers, notebook and desktop PC Digital cameras I/O 1 I/O 2 I/O 3 I/O 4 I/O 5 IC SAT36A05L05 Revision:ESD-SAT36A05L05-001(A1) 1/5 Key Pad Protection http://brightking.pulseelectronics.com SAT36A05L05 Maximum Ratings Rating Peak pulse power (tp=8/20μs waveform) Symbol Value Unit PPP 100 W ESD voltage (Contact discharge) ±8 VESD kV ESD voltage (Air discharge) ±15 Storage & operating temperature range TSTG ,TJ ℃ -55~+150 Electrical Characteristics (TJ=25℃) Parameter Reverse stand-off voltage Reverse breakdown voltage Symbol Condition Min. VRWM Typ. Max. Unit 5 V VBR IBR=1mA Reverse leakage current IR VR=5V Each I/O pin 5 μA Clamping voltage (tp=8/20μs) VC IPP=1A 9.8 V Off state junction capacitance CJ 0Vdc,f=1MHz Between I/O pins and GND 50 pF Revision:ESD-SAT36A05L05-001(A1) 2/5 6 V http://brightking.pulseelectronics.com SAT36A05L05 Typical Characteristics Curves Figure 1. Power Derating Curve Figure 2. Pulse Waveforms 110 100 100 % of Peak Power Current Peak Power Dissipation (%) 90 80 70 60 50 40 30 20 10 0 tr Peak value Ipp 90 80 70 60 50 40 30 td=t|IPP/2 20 10 0 25 50 75 100 125 150 0 175 0 5 10 15 20 25 30 t-Time (μs) TA-Ambient Temperature (℃) Figure 3. Non-Repetitive Peak Pulse vs. Pulse Time Figure 4. Forward Voltage vs. Forward Current 10000 3.5 3.0 Forward Voltage (V) PPP - Peak Pulse Power (W) Waveform Parameters: tr=8µs td=20µs 1000 100 2.5 2.0 1.5 Waveform Parameters: tr=8µs tb=20µs 1.0 0.5 10 0.1 0 1 10 100 1000 tP-Pulse Duration (µs) Revision:ESD-SAT36A05L05-001(A1) 10000 0 1 2 3 4 5 6 7 Peak Pulse Current (A) 3/5 http://brightking.pulseelectronics.com SAT36A05L05 Recommended Soldering Conditions Reflow Soldering Critical Zone TL to TP tP TP Ramp-up TL tL Temperature TS max TS min Ramp-down tS Preheat 25 t 25℃ to Peak Time Recommended Conditions Profile Feature Pb-Free Assembly Average ramp-up rate (TL to TP) 3℃/second max. Preheat -Temperature Min (TS min) -Temperature Max (TS max) -Time (min to max) (ts) 150℃ 200℃ 60-180 seconds TS max to TL -Ramp-up Rate 3℃/second max. Time maintained above: -Temperature (TL) -Time (tL) 217℃ 60-150 seconds Peak Temperature (TP) 260℃ Time within 5℃ of actual Peak Temperature (tP) Ramp-down Rate 6℃/second max. Time 25℃ to Peak Temperature Revision:ESD-SAT36A05L05-001(A1) 20-40 seconds 8 minutes max. 4/5 http://brightking.pulseelectronics.com SAT36A05L05 Dimensions (SOT-363) A B 6 Dimension I 5 Symbol H 4 Millimeters G E D 1 2 A 3 J F C 1.90 0.80 (6X) 0.40 (6X) 0.65 Recommended Soldering Pad Layout Inches Min. Max. Min. Max. 1.85 2.15 0.073 0.085 B 1.30 0.051 C 0.65 0.026 D 1.90 2.30 0.075 0.091 E 1.10 1.40 0.043 0.055 F 0.15 0.30 0.006 0.012 G - 0.10 - 0.004 H 0.25 - 0.010 - I 0.10 0.25 0.004 0.010 J 0.80 1.00 0.031 0.039 Packaging Tape P0 P1 P2 K F Dimension (mm) W 8.00±0.30 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.10 D0 Φ1.55±0.10 D1 Φ1.05±0.05 E 1.75±0.10 F 3.50±0.10 A 2.30±0.10 B 2.45±0.10 K 1.15±0.10 t 0.25±0.05 D Φ178.0±2.0 D2 Φ13.0 W1 9.5 B W E øD0 Symbol A øD1 t Reel D2 D Revision:ESD-SAT36A05L05-001(A1) W1 5/5 Quantity: 3000PCS http://brightking.pulseelectronics.com
