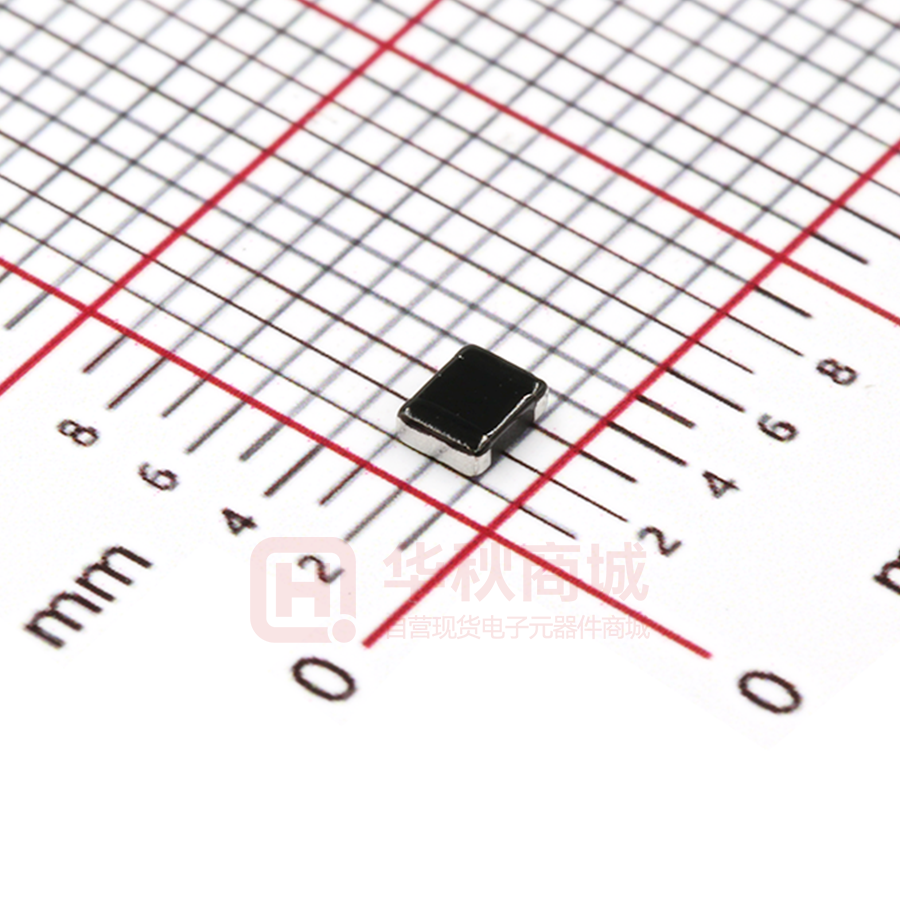

MHCHL252010A-2R2M-Q8A

Form No.: QF-1274 Edition: 2 RoHS & Halogen Free & REACH Compliance. SPECIFICATION FOR APPROVAL Customer： ： Customer P/N: Drawing No： ： Quantity： ： 0 Pcs. Date : 2016/04/15 MHCHL252010A-SERIES-Q8 Chilisin P/N： ： SPECIFICATION ACCEPTED BY: COMPONENT ENGINEER ELECTRICAL ENGINEER MECHANICAL ENGINEER APPROVED REJECTED 奇力新電子股份有限公司 Chilisin Electronics Corp No. 29, Alley 301, Tehhsin Rd., Hukou,Hsinchu 303, Taiwan TEL +886-3- 599-2646 FAX +886-3- 599-9176 E-mail sales@chilisin.com.tw http //www.chilisin.com.tw ： ： ： ： 奇力新電子( 奇力新電子(河南) 河南)有限公司 Chilisin Electronics (Henan) Co., Ltd. XiuWu Xian, industry gathering area JiaoZuo, Henan China Postal Code:454350 TEL:+86-391-717-0682 FAX:+86-391-717-0666 Drawn by 陳瑞揚 ryan.chen 東莞奇力新電子有限公司 Chilisin Electronics (Dongguan) Co., Ltd. No. 78, Puxing Rd., Yuliangwei Administration Area, Qingxi Town, Dongguan City, Guangdong,China TEL +86-769-8773-0251~3 FAX +86-769-8773-0232 E-mail cect@chilisin.com.tw ： ： ： 蘇州奇益新電子有限公司 SUZHOU QI YIXIN Electronics Co., Ltd. No.143,Song Shan Rd., Suzhou New District, Suzhou,China Postal Code:215129 TEL:+86-512-6841-2350 FAX:+86-512-6841-2356 E-mail suzhou@chilisin.com.tw Checked by 邱明傑 Joseph.Chiu Approved by 陳瑞揚 ryan.chen YG16401165 MHCHL252010A Series Specification 1 Scope: This specification applies to Molding power inductors 2 Part Numbering: 3 Rating: Operating Temperature: －４０℃～１２５℃(Including self - temperature rise) Storage Temperature: －４０℃～１２５℃(after PCB) －５℃～３５℃,Humidity ４５％～８５％(before PCB) 4 Marking: 5 Standard Testing Condition Temperature Humidity Unless otherwise specified Ordinary Temperature(15 to 35 ) Ordinary Humidity(25 to 85% RH) ℃ In case of doubt 20 to 30 50 to 80 %RH ℃ MHCHL252010A Series Specification 6 Configuration and Dimensions: 7 Electrical Characteristics: Inductance (uH ) Test Freq. Irms(A) Max.(Typ) Isat(A) Max.(Typ) RDC(mΩ) Max.(Typ) SRF (MHz)Min. Tolerance (±%) MHCHL252010A-R24M-Q8 0.24 2MHz,0.2V 5.5(6.5) 8.0(9.5) 18(13) 126 20 MHCHL252010A-R33M-Q8 0.33 2MHz,0.2V 4.8(5.5) 6.5(8.0) 24(18) 95 20 MHCHL252010A-R47M-Q8 0.47 2MHz,0.2V 3.9(4.5) 5.0(6.2) 35(27) 87 20 MHCHL252010A-R68M-Q8 0.68 2MHz,0.2V 3.7(4.2) 4.5(5.6) 40(32) 53 20 MHCHL252010A-1R0M-Q8 1 2MHz,0.2V 3.0(3.5) 3.7(4.6) 53(45) 41 20 MHCHL252010A-1R5M-Q8 1.5 2MHz,0.2V 2.4(2.8) 3.1(3.8) 75(68) 37 20 MHCHL252010A-2R2M-Q8 2.2 2MHz,0.2V 2.2(2.5) 2.5(3.0) 105(87) 29 20 Part No. NOTE: 1.Operating temperature range －４０℃～１２５℃(Including self - temperature rise) 2.Isat for Inductance drop 30% from its value without current. ℃ temperature rise from 25℃ ambient. ℃ ambient 3.Irms for a 40 4.All test data is referenced to 25 MHCHL252010A Series Specification 8 MHCHL252010A Series 8.1 Construction: 8.2 Material List: MHCHL252010A Series Specification 9 Reliability Of Molding power inductors 1-1.Mechanical Performance No Item 1-1-1 Flexure Strength 1-1-2 Vibration Test Method Specification Test device shall be soldered on the substrate conditions must not damage Substrate Dimension: 100x40x1.6mm the terminal electrode and the Deflection: 2.0mm metal body Keeping Time: 30sec The forces applied on the right Test device shall be soldered on the substrate Appearance:No damage (for microscope of CASTOR MZ-45 20X) Oscillation Frequency: 10 to 55 to 10Hz for 1min Amplitude: 1.5mm Time: 2hrs for each axis (X, Y & Z), total 6hrs 1-1-3 Resistance to Soldering Heat Appearance: No damage Pre-heating: 150 , 1min More than 75% of the terminal. Solder Composition: Sn/Ag3.0/Cu0.5(Pb-Free) electrode should be covered Solder Temperature: 260±5 with solder. Immersion Time: 10±1sec Inductance: within ±20% of initial value 1-1-4 Solder ability The electrodes shall be at Pre-heating: 150 , 1min least 95% covered with new Solder Composition: Sn/Ag3.0/Cu0.5(Pb-Free) solder coating Solder Temperature: 245±5 Immersion Time: 4±1sec Inductance change shall be within ±20% ℃ ℃ ℃ ℃ 1-1-5 Terminal Strength Test No split termination Chip F Test device shall be soldered on the substrate, then apply a force in the direction of the arrow. Force : 5N Keeping Time: 10±1sec Mounting Pad 1-2.Environmental Performance No Item 1-2-1 Temperature Cycle 1-2-2 Humidity Resistance 1-2-3 High Temperature Resistance 1-2-4 Low Temperature Resistance Specification Appearance: No damage Inductance:within±20% of initial value Test Method One cycle: Step Time (min) Temperature ( ) 1 -40±3 30 2 25±2 3 3 125±3 30 4 25±2 3 Total: 100cycles Measured after exposure in the room condition for 24hrs Temperature: 60±2 Relative Humidity: 90 ~ 95% / Time: 500hrs Measured after exposure in the room condition for 24hrs Temperature: 85±3 Relative Humidity: 0% / Time: 500hrs Measured after exposure in the room condition for 24hrs Temperature: -40±3 Relative Humidity: 0% / Time: 500hrs Measured after exposure in the room condition for 24hrs ℃ ℃ ℃ ℃ MHCHL252010A Series Specification MHCHL252010A Series Specification 10 Packaging: 10.1 Packaging -Cover Tape The force for tearing off cover tape is 10 to 100 grams in the arrow direction. 10.2 Packaging Quantity 10.3 Reel Dimensions MHCHL252010A Series Specification 10 Packaging: 10.4 Tape Dimensions in mm 11 Recommended Land Pattern: 12 Note: 1. Please make sure that your product has been evaluated and confirmed against your specifications when our product is mounted to your product. 2. Do not knock nor drop. 3. All the items and parameters in this product specification have been prescribed on the premise that our product is used for the purpose,under the condition and in the environment agreed upon between you and us. You are requested not to use our product deviating from such agreement. 4. Please keep the distance between transformer/coil and other components (refer to the standard IEC 950) 5.After manufacturing process, there might be slight irregular shape on the edge of the products, and it's a normal phenomenon that can be neglected 6.The moisture sensitivity level (MSL) of products is classified as level 1.
