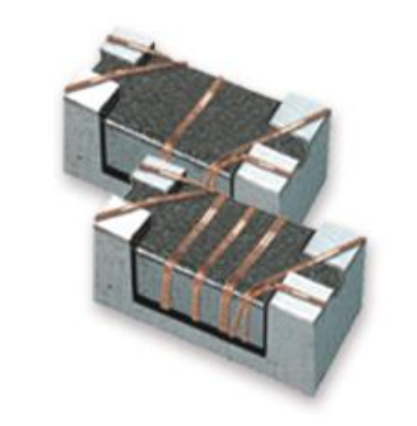

CUWI21T-900Y-N

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BWCU_03 Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUWI Series CUWI Series For HDMI, USB 3.0 A full series of common mode choke is designed for excellent noise attenuation and compact sizing for use in wide range of applications. Both standard series and custom designs are available. Features Applications  RoHS Compliant  HDMI  Miniature SMD type common mode filter for fully automated assembly  USB lines (for personal computers and peripheral), DVC, STB,  Excellent solderability LVDS, panel line for liquid display panels, etc. Product Identification  Packaging: T：Tape and Reel Shape and Dimensions Recommended Pattern CUWI11 CUWI21 Dimensions in mm Dimensions in mm TYPE A B C D E TYPE A B C D CUWI11 1.25±0.2 1.00±0.2 0.80±0.1 0.32 0.33 CUWI11 0.36 1.00 0.59 1.75 CUWI21 2.05±0.2 1.25±0.2 1.20±0.2 0.50 0.40 CUWI21 0.50 1.27 0.80 2.60 SMD Common Mode Choke – CUWI Series Electrical Characteristics Part Number Impedance Tolerance Test Frequency RDC IDC Rated Withstamd Insulation Voltage Voltage Resistance (Vdc) (Vdc) (MΩ) Min (Ω) (±%) (MHz) (Ω) Max (mA) Max CUWI11T-220Y-N 22 25 100 0.20 400 50 125 100 CUWI11T-600Y-N 60 25 100 0.40 250 50 125 100 CUWI11T-900Y-N 90 25 100 0.30 250 50 125 100 Note: When ordering, please specify tolerance code. Tolerance: Y=±25%  Operating temperature range－40℃～105℃(Including self - temperature rise)  IDC for Inductance drop 10% from its value without current.  Measure Equipment： Z：HP4286A/HP4287A/Agilent E4991A+Agilent16197A RDC：Chroma 16502 (Single Wire Test Value) IDC：HP4284A+HP42841A/HP4285A+HP42841A Insulation Resistance：Agilent HP4339B Test Instruments：HP4291A Material/Impedance Analyzer Typical Impedance vs. Frequency Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUWI Series CUWI11T-220Y-N Insertion Loss For HDMI2.0 Testing: Insertion Loss For USB3.0 Testing: TDR For HDMI2.0 Testing: TDR For USB3.0 Testing: Eye Diagram For HDMI2.0 Testing: Eye Diagram For USB3.0 Testing: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUWI Series CUWI11T-600Y-N Insertion Loss For HDMI2.0 Testing: Insertion Loss For USB3.0 Testing: TDR For HDMI2.0 Testing: TDR For USB3.0 Testing: Eye Diagram For HDMI2.0 Testing: Eye Diagram For USB3.0 Testing: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUWI Series CUWI11T-900Y-N Insertion Loss For HDMI2.0 Testing: Insertion Loss For USB3.0 Testing: TDR For HDMI2.0 Testing: TDR For USB3.0 Testing: Eye Diagram For HDMI2.0 Testing: Eye Diagram For USB3.0 Testing: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUWI Series Electrical Characteristics Part Number Impedance Tolerance Test Frequency RDC IDC (Ω) (±%) (MHz) (Ω) Max (mA) Max Rated Withstamd Insulation Voltage Voltage Resistance (Vdc) (Vdc) (MΩ) Min CUWI21T-500Y-N 50 25 100 0.20 500 50 125 10 CUWI21T-670Y-N 67 25 100 0.30 500 50 125 10 CUWI21T-900Y-N 90 25 100 0.30 500 50 125 10 CUWI21T-121Y-N 120 25 100 0.35 330 50 125 10 CUWI21T-131Y-N 130 25 100 0.40 300 50 125 10 Note: When ordering, please specify tolerance code. Tolerance: Y=±25%  Operating temperature range－40℃～105℃(Including self - temperature rise)  IDC for Inductance drop 10% from its value without current.  Measure Equipment： Z：HP4286A/HP4287A/Agilent E4991A+Agilent16197A RDC：Chroma 16502 (Single Wire Test Value) IDC：HP4284A+HP42841A/HP4285A+HP42841A Insulation Resistance：Agilent HP4339B Test Instruments：HP4291A Material/Impedance Analyzer Typical Impedance vs. Frequency 1000 121 COMMON MODE 131 900 670 IIMPEDANCE(Ω) 100 500 10 131 121 900 1 670 NORMAL MODE 500 0.1 1 10 100 1000 FREQUENCY(MHz) Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. 10000 SMD Common Mode Choke – CUWI Series CUWI21T-500Y-N Insertion Loss For HDMI2.0 Testing: Insertion Loss For USB3.0 Testing: TDR For HDMI2.0 Testing: TDR For USB3.0 Testing: Eye Diagram For HDMI2.0 Testing: Eye Diagram For USB3.0 Testing: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUWI Series CUWI21T-670Y-N Insertion Loss For HDMI2.0 Testing: Insertion Loss For USB3.0 Testing: TDR For HDMI2.0 Testing: TDR For USB3.0 Testing: Eye Diagram For HDMI2.0 Testing: Eye Diagram For USB3.0 Testing: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUWI Series CUWI21T-900Y-N Insertion Loss For HDMI2.0 Testing: Insertion Loss For USB3.0 Testing: TDR For HDMI2.0 Testing: TDR For USB3.0 Testing: Eye Diagram For HDMI2.0 Testing: Eye Diagram For USB3.0 Testing: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUWI Series CUWI21T-121Y-N Insertion Loss For HDMI2.0 Testing: Insertion Loss For USB3.0 Testing: TDR For HDMI2.0 Testing: TDR For USB3.0 Testing: Eye Diagram For HDMI2.0 Testing: Eye Diagram For USB3.0 Testing: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke – CUWI Series CUWI21T-131Y-N Insertion Loss For HDMI Testing: Insertion Loss For USB3.0 Testing: TDR For HDMI Testing: TDR For USB3.0 Testing: Eye Diagram For HDMI Testing: Eye Diagram For USB3.0 Testing: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Common Mode Choke - CUWI Series Packaging Specifications Tape Dimensions Reel Dimensions 4.0 ± 0.1 2.0 ± 0.05 1.5 +0.1/-0.0 T 1.75 ± 0.1 F B B W A K Trailer P O C Leader End O End Blank part (160mm min.) O Blank Compartments with Cover Tape and Leader (330mm min.) Dimensions in mm TYPE Tape Dimensions Reel Dimensions Quantity A B T W P F K A B C D PCS / Reel CUWI11 1.15 1.45 0.25 8 4 3.5 1.00 178 60 12 1.5 2000 CUWI21 1.50 2.25 0.24 8 4 3.5 1.35 178 60 12 1.5 2000
