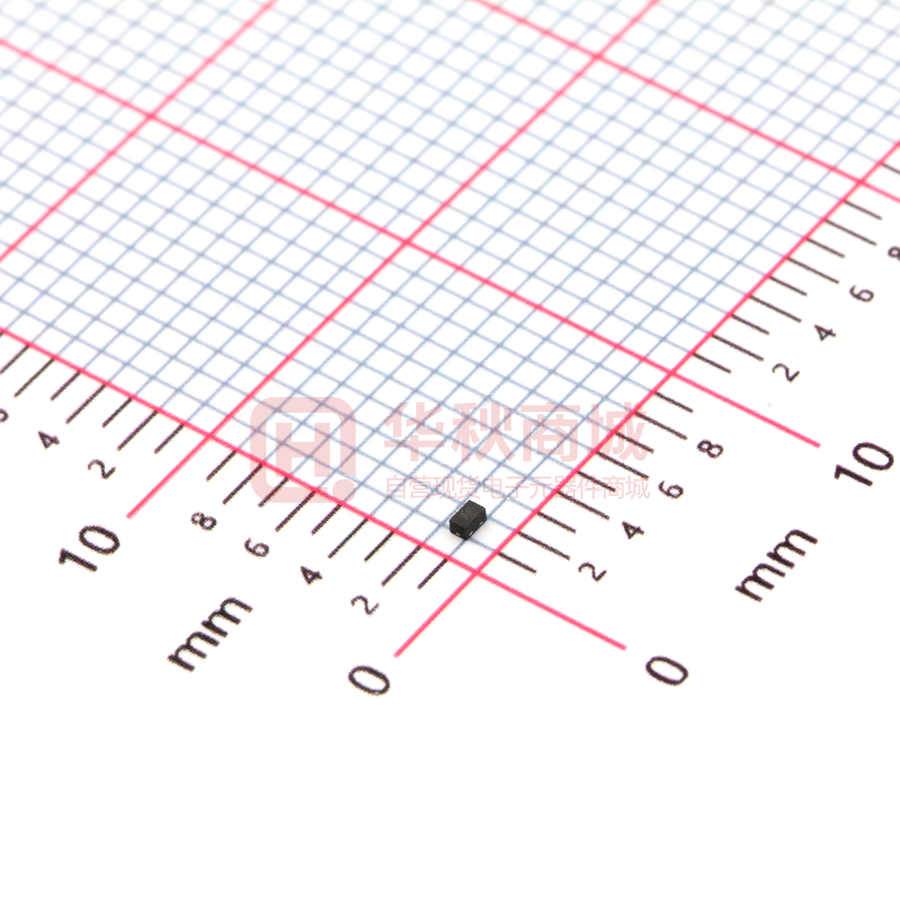

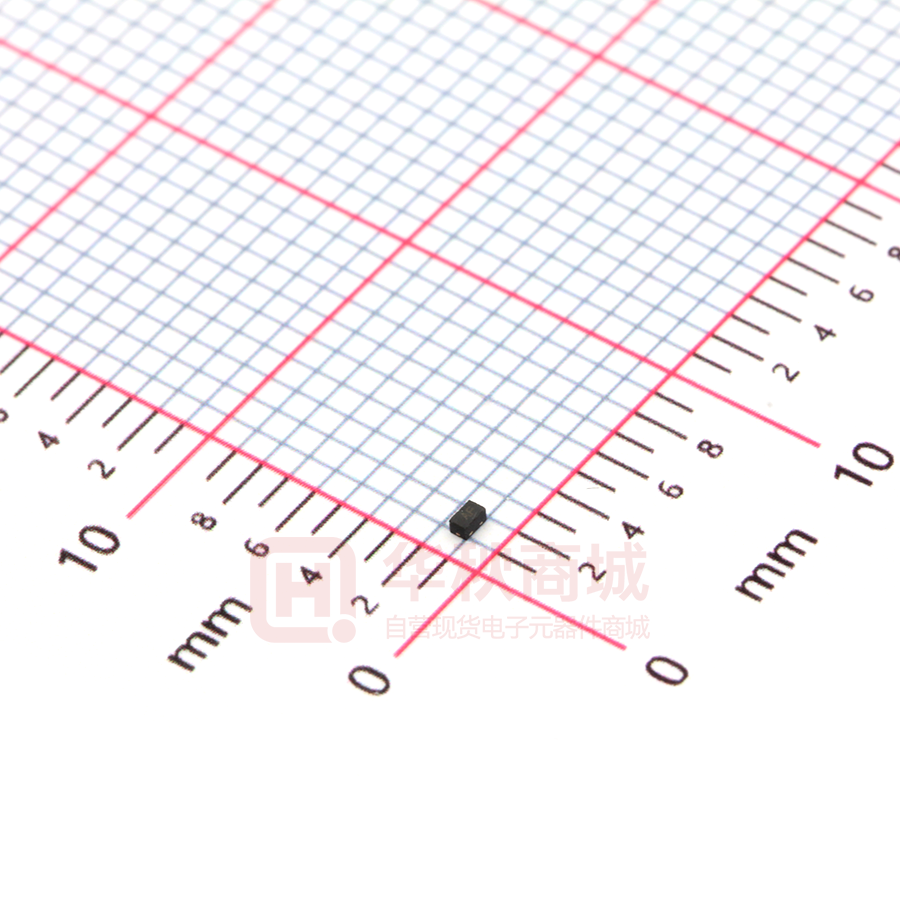

PESD12VV1BL-N

PESD12VV1BL-N ESD Protection Diode »Features ■ 120Watts peak pulse power (tp = 8/20μs) ■ Tiny DFN1006 package ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kV air ■ IEC 61000-4-4 (EFT) 40A(5/50ns) ■ IEC 61000-4-5 (Lightning) 5A(8/20μs) »Applications ■ Cell Phone Handsets andAccessories ■ Microprocessor based equipment ■ Personal Digital Assistants (PDA’s) ■ Notebooks, Desktops, and Servers ■ Portable Instrumentation »Mechanical Data ■ DFN1006 package ■ Molding compound flammability rating: UL 94V-0 ■ Packaging: Tape and Reel ■ RoHS/WEEE Compliant »Schematic & PIN Configuration DFN1006 Revision 2018 www.born-tw.com 1/4 PESD12VV1BL-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 120 Watts Peak Pulse Current ( tp =8/20μs )(note1) Ipp 5 A VESD 30 30 kV Lead SolderingTemperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 125 ℃ StorageTemperature Tstg -55 to + 125 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2(Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Conditions Typical VRWM VBR IT=1mA Reverse LeakageCurrent IR VRWM=12V,T=25℃ Peak Pulse Current IPP tp =8/20μs Clamping Voltage VC IPP=5A,tp=8/20μs Junction Capacitance Cj VR = 0V, f =1MHz Reverse BreakdownVoltage Min Max Units 12.0 V 13.3 V 0.1 0.5 μA 5 A 24 V 10 pF »Electrical Parameters (TA = 25°C unless otherwisenoted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP V RWM IR V BR IT I IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM VC V BR V RWM IT IR I IT R VRWM V BR VC V Breakdown Voltage @ IT Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 PESD12VV1BL-N »TypicalCharacteristics Figure 2: Power Derating Curve 10 110 100 Percent of Rated Power for I pp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 1 120w 8/20µs aveform 0.1 0.01 0.1 1 100 10 90 80 70 60 50 40 30 20 10 0 1,000 td – Pulse Duration - µs Figure3: Pulse Waveform Percent Ipp 80 e-1 50 40 td=Ipp/2 20 75 100 0 5 Revision 2018 10 15 150 35 30 25 20 Test Waveform Paramters tr=8µs td=20µs 15 10 5 10 0 125 40 Clamping Voltage–VC (V) 90 30 50 Ambient Temperature - TA (℃) 45 Waveform Paramters tr=8µs td=20µs 100 60 25 Figure 4: Clamping Voltage vs.Ipp 110 70 0 Time (µs) 20 25 30 0 0 1 2 3 4 5 6 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 PESD12VV1BL-N »Outline Drawing – DFN1006 »Marking AF »Ordering information Order code PESD12VV1BL-N Revision 2018 Package DFN1006 Base qty 10k www.born-tw.com Delivery mode Tape and reel 4/4
