PESD12VL2BT-N

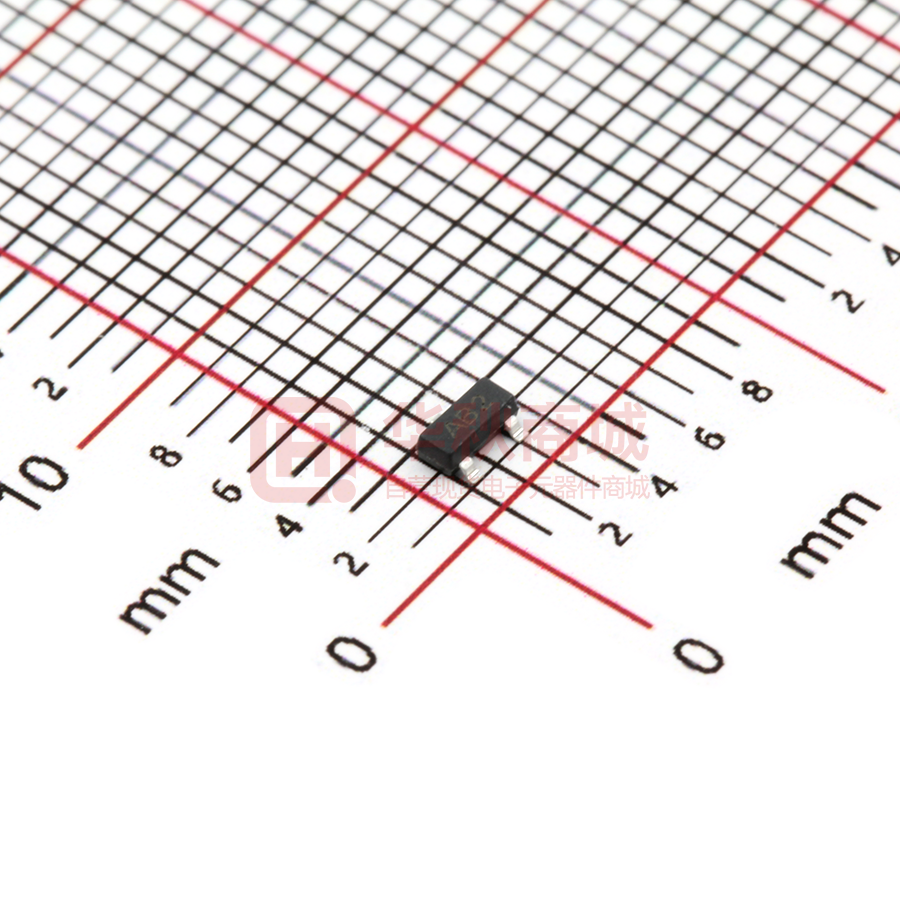

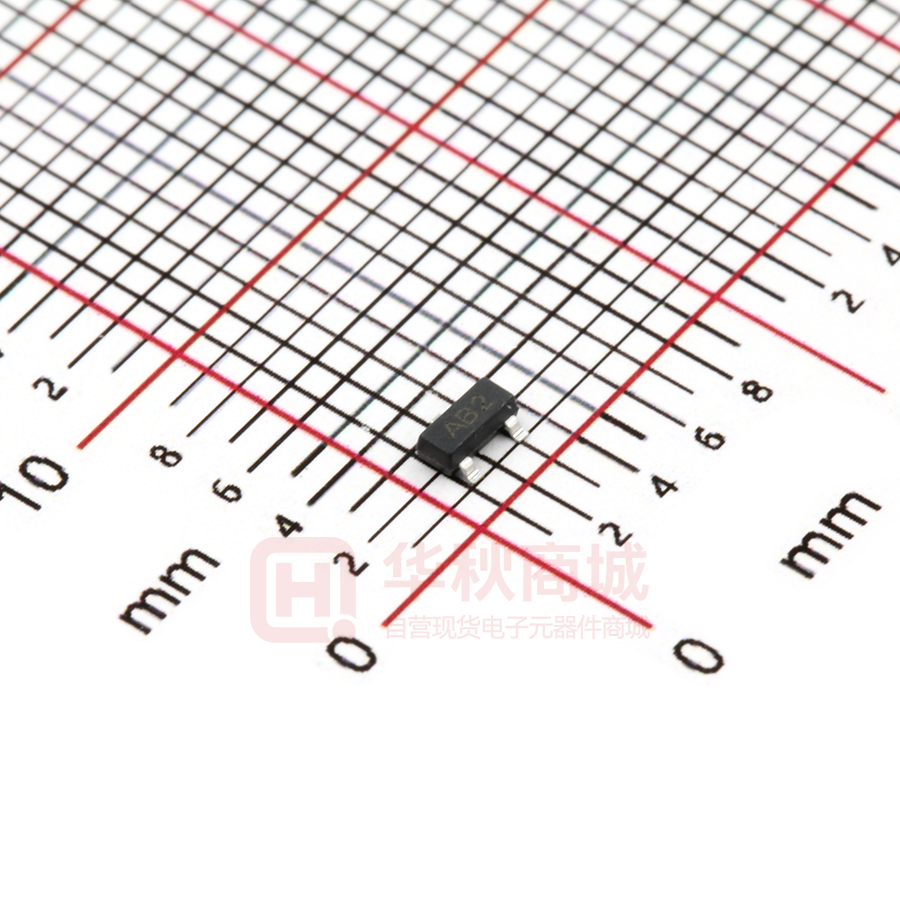

PESD12VL2BT-N ESD Protection Diode Array »Features ■ 350 Watts peak pulse power (tp =8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±30kV contact ±30kVair ■ IEC 61000-4-4 (EFT) 40A(5/50ns) ■ IEC 61000-4-5 (Lightning) 12A(8/20μs) »Mechanical Data »Applications ■ Dataline ■ SOT-23 package ■ Automatic Teller Machines ■ Molding compound flammability rating: UL 94V-0 ■ Net works ■ Packaging: Tape and Reel ■ Power line ■ RoHS/WEEE Compliant »Schematic & PIN Configuration 1 1 3 3 2 2 SOT-23 (Top View) Revision 2018 www.born-tw.com 1/4 PESD12VL2BT-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs ) PPP 350 Watts Peak Pulse Current ( tp =8/20μs )(note1) Ipp 12 A VESD 30 30 kV Lead SolderingTemperature TL 260(10seconds) ℃ JunctionTemperature TJ -55 to + 125 ℃ StorageTemperature Tstg -55 to + 125 ℃ ESD per IEC 61000-4-2(Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-OffVoltage Conditions Min Typical Max Units 12 V 15.0 17.0 V 0.1 0.5 μA VRWM VBR IT=1mA Reverse LeakageCurrent IR VRWM=12V,T=25℃ Peak PulseCurrent IPP tp =8/20μs 12 A Clamping Voltage VC IPP=12A,tp=8/20μs 35 V JunctionCapacitance Cj VR = 0V, f =1MHz (Pin1、Pin2 to Pin3) 35 pF Reverse BreakdownVoltage 13.3 30 »Electrical Parameters (TA = 25°C unless otherwisenoted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP V RW M IR V BR IT I IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RW M VC VBR VRWM Breakdown Voltage @ IT IT IR IR IT VRWM VBR VC V Test Current IPP Note:. 8/20μs pulsewavefor Revision 2018 www.born-tw.com 2/4 PESD12VL2BT-N »TypicalCharacteristics Figure 2: Power Derating Curve 10 110 100 Percent of Rated Power for Ipp P pp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 350w 8/20 sµaveform 1 0.1 0.01 0.1 1 10 100 90 80 70 60 50 40 30 20 10 0 1,000 0 25 td – Pulse Duration - µs Figure3: Pulse Waveform Waveform Paramters tr=8µs td=20µs 90 Percent Ipp 80 50 40 td=Ipp/ 2 20 10 5 Revision 2018 10 15 150 35 30 25 20 Test Waveform Paramters tr=8µs td=20µs 15 10 5 0 0 125 40 e-1 30 100 45 Clamping Voltage–VC (V) 100 60 75 Figure 4: Clamping Voltage vs.Ipp 110 70 50 Ambient Temperature - TA (℃) Time (µs) 20 25 30 0 0 2 4 6 8 10 12 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 PESD12VL2BT-N »Outline Drawing – SOT-23 DIMENSIONS D SYM BOL 3 E1 E θ 1 b L 0.25 2 e INCHES MIN MAX MIN MAX A 0.900 1.150 0.035 0.045 A1 0.000 0.100 0.000 0.004 A2 0.900 1.050 0.035 0.041 D 2.800 3.000 0.110 0.118 b 0.300 0.500 0.012 0.020 E 2.250 2.550 0.089 0.100 E1 1.200 1.400 0.047 0.055 e A A2 MILLIM ETER 0.950 BSC 0.037 BSC L 0.300 0.500 0.012 0.020 θ 0 8 0 8○ A1 ○ »Marking AB2 »Ordering information Order code PESD12VL2BT-N Revision 2018 Package SOT-23 Base qty 3k www.born-tw.com Delivery mode Tape and reel 4/4
