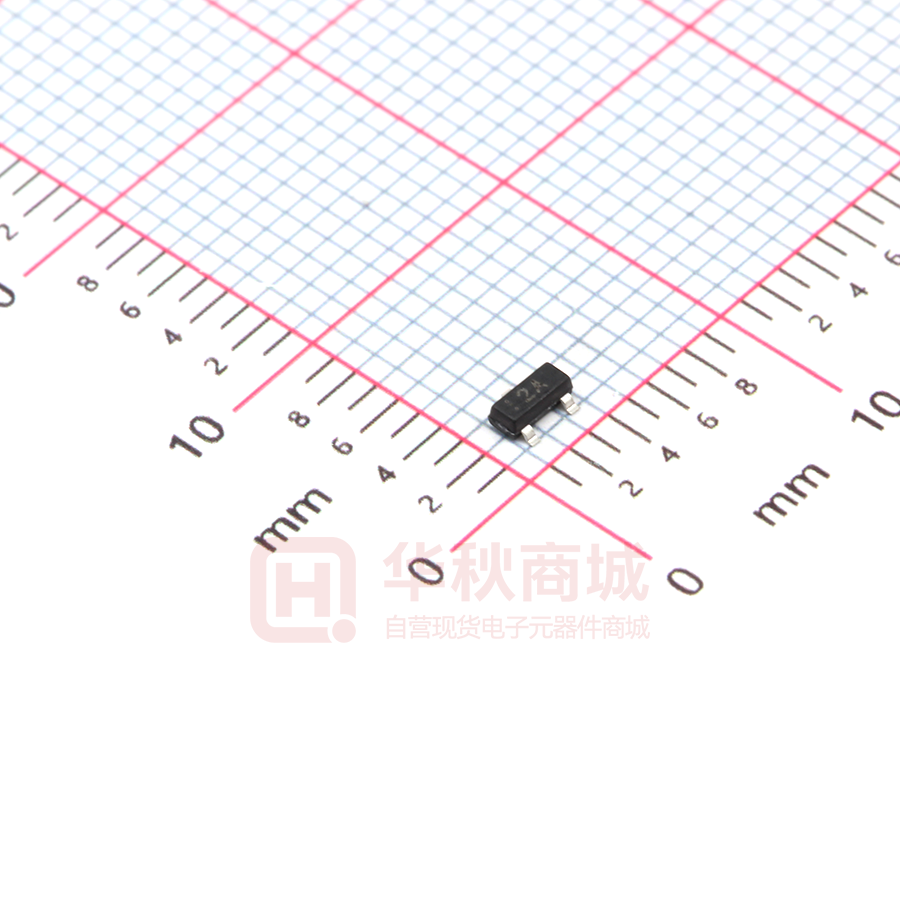

MMBT3906
SOT-23 Plastic-Encapsulate Transistors(PNP)
Transistors
RHOS
Features
SOT-23
As complementary type the NPN transistor MMBT3904 is recommended
Epitaxial planar die construction
Maximum Ratings
(Ratings at 25℃ ambient temperature unless otherwise specified.)
Symbol
Parameter
Value
Units
VCBO
Collector-Base Voltage
-40
V
1. BASE
VCEO
Collector-Emitter Voltage
-40
V
2. EMITTER
VEBO
Emitter-Base Voltage
-5
V
IC
Collector Current -Continuous
-200
mA
PC
Total Device Dissipation
200
mW
RθJA
Thermal Resistance Junction to Ambient
625
℃/W
TJ
Junction Temperature
150
℃
Tstg
Storage Temperature
-55 to +150
℃
3. COLLECTOR
MARKING: 2A
Electrical Characteristics
(Ratings at 25℃
ambient temperature unless otherwise specified).
Parameter
Symbol
Test
conditions
MIN
MAX
UNIT
Collector-base breakdown voltage
VCBO
IC=-10μA, IE=0
-40
V
Collector-emitter breakdown voltage
VCEO
IC=-1mA, IB=0
-40
V
Emitter-base breakdown voltage
VEBO
IE=-10μA, IC=0
-5
V
Collector cut-off
current
ICBO
VCB=-40V, IE=0
-0.1
μA
Collector cut-off
current
ICEX
VCE=-30V,VBE(off)=-3V
-50
nA
IEBO
VEB=-5V, IC=0
-0.1
μA
hFE(1)
VCE=-1V, IC=-10mA
100
hFE(2)
VCE=-1V, IC= -50mA
60
hFE(3)
VCE=-1V, IC= -100mA
30
Collector-emitter saturation voltage
VCE(sat)
IC=-50mA, IB= -5mA
-0.4
V
Base-emitter saturation voltage
VBE(sat)
IC= -50mA, IB=-5mA
-0.95
V
Emitter cut-off
current
DC current gain
300
Transition frequency
fT
VCE=-20V, IC=-10mA,f=100MHz
Delay Time
td
VCC=-3V,VBE=-0.5V
35
nS
Rise Time
tr
IC=-10mA, IB1=-IB2=-1mA
35
nS
Storage Time
ts
VCC=-3V,IC=-10mA,
225
nS
Fall Time
tf
IB1=-IB2=-1mA
75
nS
CLASSIFICATION OF
Rank
Range
Rev 8: Nov 2014
300
MHz
hFE(1)
O
Y
100-200
200-300
www.born-tw.com
Page 1 of 2
MMBT3906
Transistors
Rev 8: Nov 2014
SOT-23 Plastic-Encapsulate Transistors(PNP)
www.born-tw.com
RHOS
Page 2 of 2
