RB520S-30

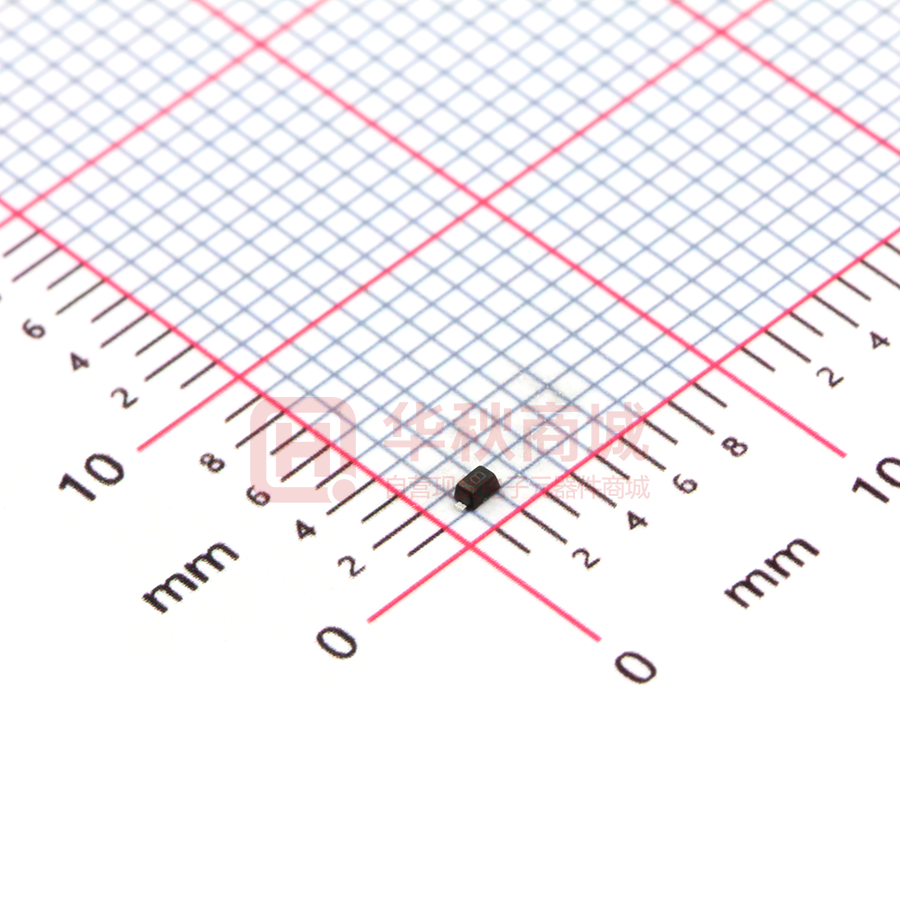

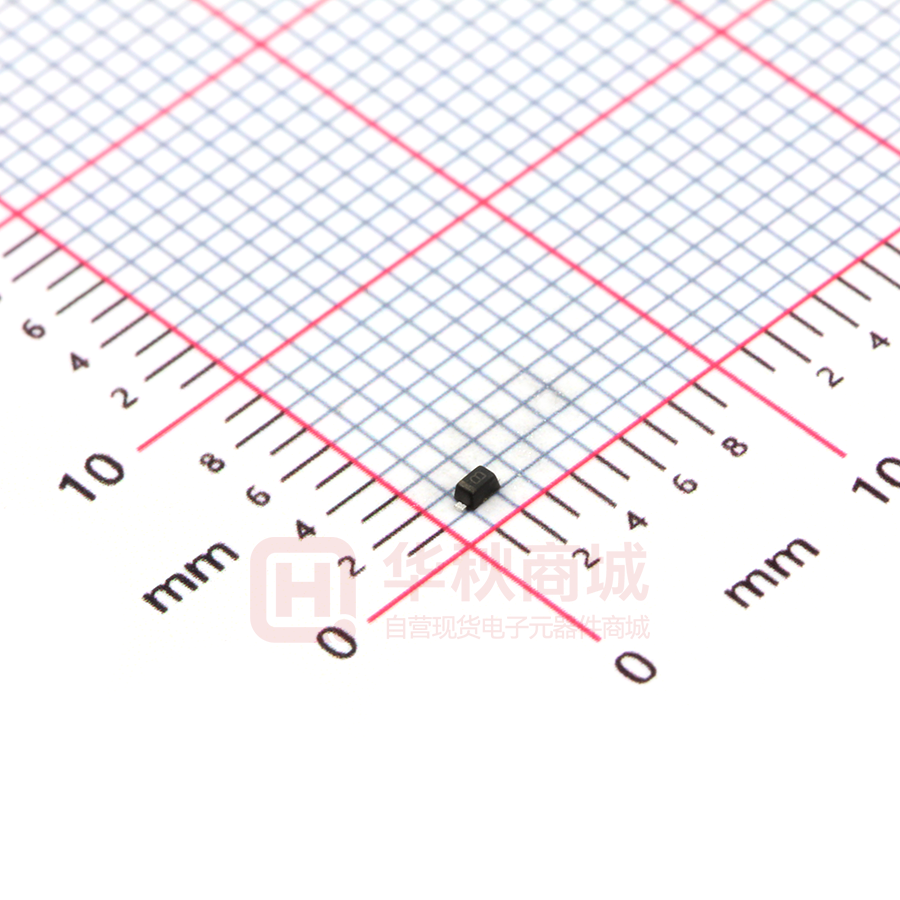

RB520S-30 SCHOTTKY SOD523 Plastic-Encapsulate Schottky Barrier Diode RHOS SOD-523 Features         Marking: Low Forward Voltage Drop Flat Lead SOD-523 Small Outline Plastic Package Extremely Small SOD-523 Package Surface Device Type Mounting RoHS Compliant Green EMC Matte Tin(Sn) Lead Finish Band Indicates Cathode Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Symbol PD TSTG Parameter Power Dissipation Storage Temperature Range Value Units 200 mW -55 to +125 °C +125 °C Reverse Voltage 30 IF(AV) Average Forward Current 200 V mA IFSM Peak Forward Surge Current (At 8.3ms single half sine-wave) 1 A TJ Operating Junction Temperature VR These ratings are limiting values above which the serviceability of the diode may be impaired. Electrical Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified). Symbol Parameter Limits Test Condition Min BV Breakdown Voltage IR=500µA IR Reverse Leakage Current VR=10V VF Forward Voltage Rev 8: Nov 2014 TCBAT42WS, www.born-tw.com IF=200mA Unit Max 30 Volts 1 µA 0.6 Volts Page 1 of 2 RB520S-30 SCHOTTKY SOD523 Plastic-Encapsulate Schottky Barrier Diode RHOS Typical Performance Characteristics Total Capacitance Forward Voltage vs Ambient Temperature Reverse Current vs Reverse VoltageReverse SOD-523 PACKAGE OUTLINE Plastic surface mounted package Rev 8: Nov 2014 www.born-tw.com Page 2 of 2
