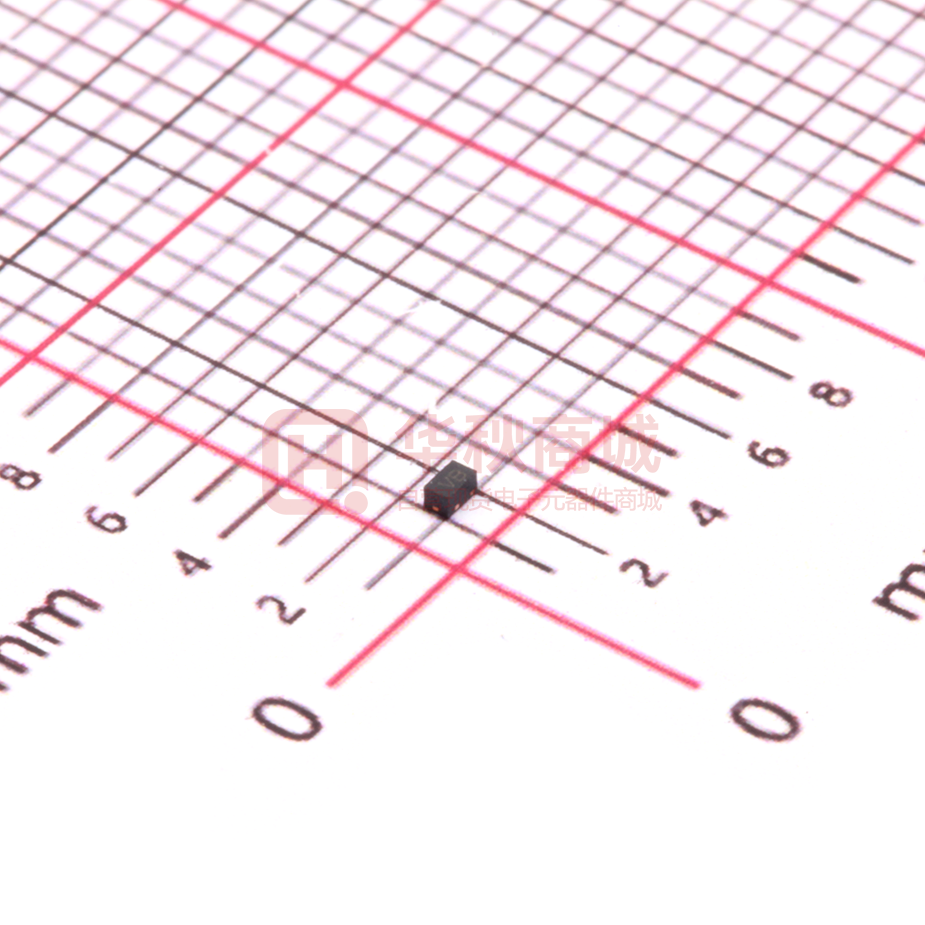

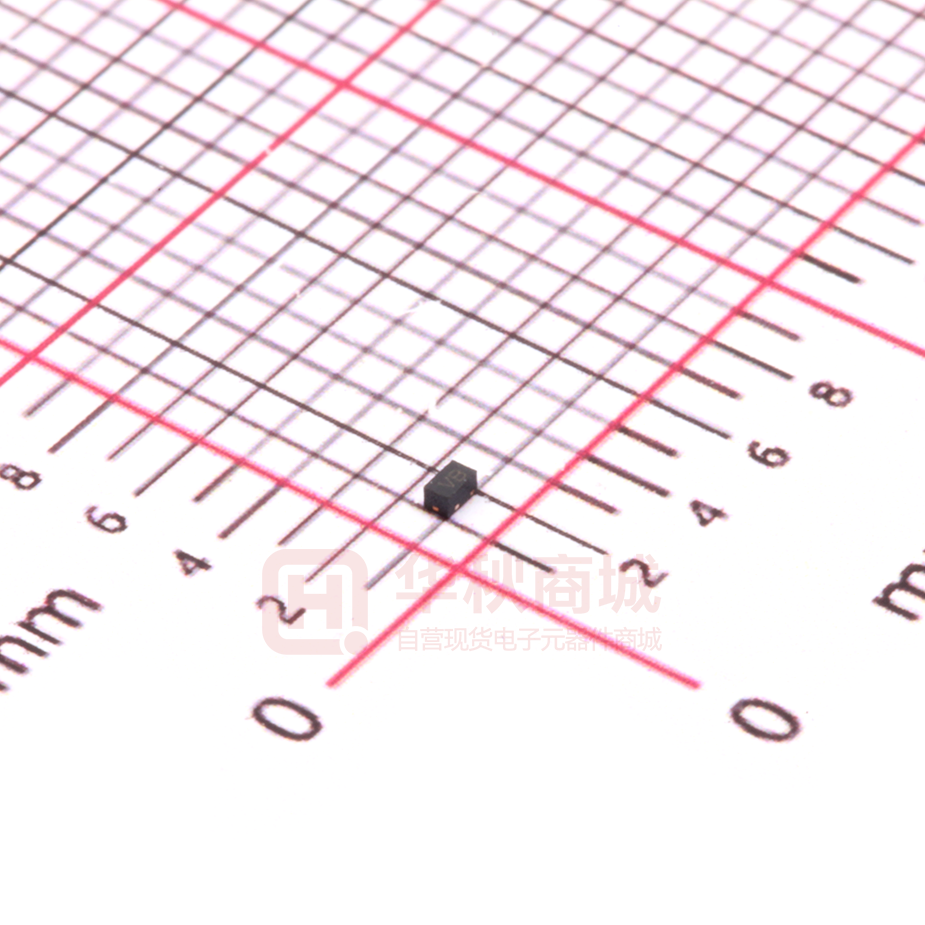

PESD5V0U1BL-N

PESD5V0U1BL-N ESD Protection Diode »Features ■ 40Watts peak pulse power (tp = 8/20μs) ■ Tiny DFN1006 package ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ Low capacitance (Cj=2.7pF typ.) ■ Protection one data/power line ■ IEC 61000-4-2 ±10kV contact ±15kV air ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 3.0A (8/20μs) »Applications »Mechanical Data ■ Cell Phone Handsets and Accessories ■ DFN1006 package ■ Microprocessor based equipment ■ Molding compound flammability rating: UL 94V-0 ■ Personal Digital Assistants (PDA’s) ■ Packaging: Tape and Reel ■ Notebooks, Desktops, and Servers ■ RoHS/WEEE Compliant ■ Portable Instrumentation »Schematic & PIN Configuration DFN1006 Revision 2018 www.born-tw.com 1/4 PESD5V0U1BL-N »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs ) PPP 40 Watts Peak Pulse Current ( tp =8/20μs )(note1) Ipp 3.0 A VESD 15 10 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 125 ℃ Storage Temperature Tstg -55 to + 125 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-Off Voltage Reverse Breakdown Voltage Conditions Min Typical VRWM VBR IT=1mA Reverse Leakage Current IR VRWM=5V,T=25℃ Peak Pulse Current IPP Clamping Voltage Junction Capacitance 5.5 Max Units 5.0 V 6.5 V 0.1 0.5 μA tp =8/20μs 3.0 A VC IPP=3.0A,tp=8/20μs 12 V Cj VR = 0V, f = 1MHz 3.5 pF 2.7 »Electrical Parameters (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR VBR IT I IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM VC V BR V RWM IT IR ITIR VRWM V BR V C V Breakdown Voltage @ IT Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 PESD5V0U1BL-N »TypicalCharacteristics Figure 2: Power Derating Curve 10 110 100 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) Figure 1: Peak Pulse Power vs. Pulse Time 1 40w 8/20 sµaveform 0.1 0.01 0.1 1 10 100 90 80 70 60 50 40 30 20 10 0 1,000 0 25 td – Pulse Duration - µs Figure3: Pulse Waveform Waveform Paramters tr=8µs td=20µs 90 Percent Ipp 80 e-1 50 40 30 td=Ipp/2 20 100 10 5 Revision 2018 10 15 150 16 14 12 10 8 Test Waveform Paramters tr=8µs td=20µs 6 4 2 0 0 125 18 Clamping Voltage–VC (V) 100 60 75 Figure 4: Clamping Voltage vs.Ipp 110 70 50 Ambient Temperature - TA (℃) Time (µs) 20 25 30 0 0 1 2 3 4 5 6 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 PESD5V0U1BL-N »Outline Drawing – DFN1006 »Marking VB »Ordering information Order code PESD5V0U1BL-N Revision 2018 Package DFN1006 Base qty 10k www.born-tw.com Delivery mode Tape and reel 4/4
