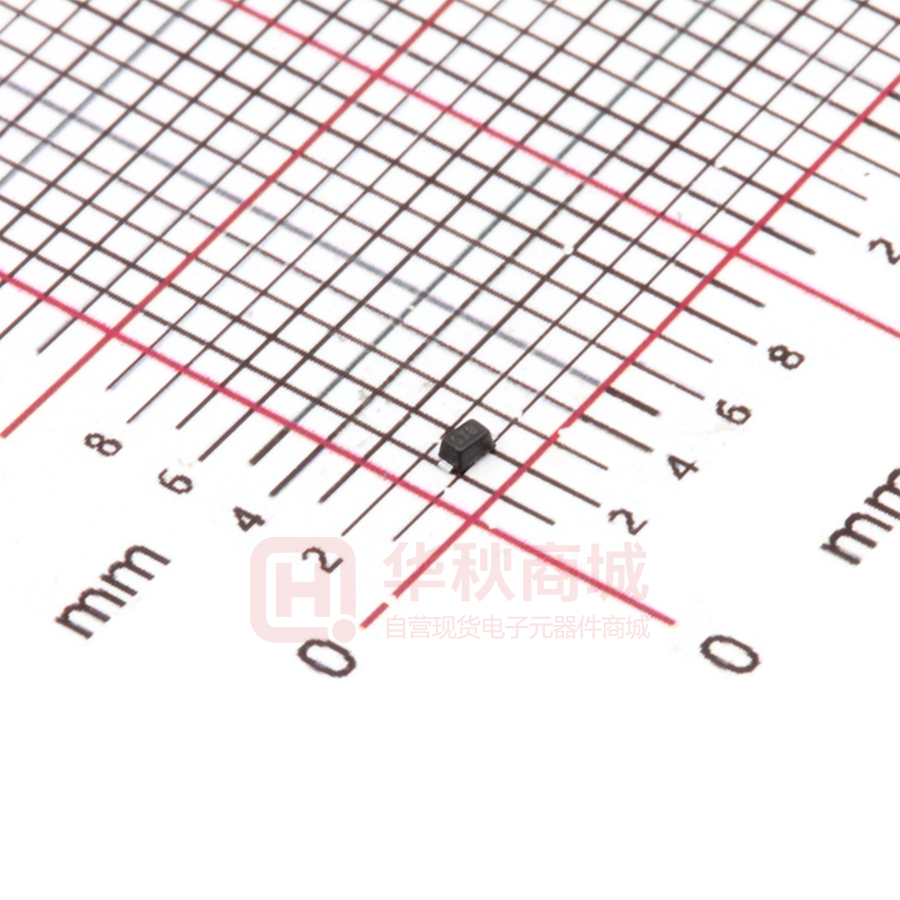

PESD5V0S1BBN

PESD5V0S1BBN ESD Protection Diode »Features ■ 75Watts peak pulse power (tp = 8/20μs) ■ Bidirectional configurations ■ Solid-state silicon-avalanche technology ■ Low clamping voltage ■ Low leakage current ■ IEC 61000-4-2 ±25kV contact ±25kVair ■ IEC 61000-4-4 (EFT) 40A (5/50ns) ■ IEC 61000-4-5 (Lightning) 5A (8/20μs) »Applications »Mechanical Data ■ Microprocessor based equipment ■ SOD523 package ■ Personal Digital Assistants (PDA’s) ■ Molding compound flammability rating: UL 94V-0 ■ Notebooks, Desktops, and Servers ■ Packaging: Tape and Reel ■ Portable Instrumentation ■ RoHS/WEEE Compliant ■ Pagers Peripherals »Schematic & PIN Configuration SOD-523 Revision 2018 www.born-tw.com 1/4 PESD5V0S1BBN »Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power ( tp =8/20μs) PPP 75 Watts Peak Pulse Current ( tp =8/20μs ) (note1) Ipp 5 A VESD 25 25 kV Lead Soldering Temperature TL 260(10seconds) ℃ Junction Temperature TJ -55 to + 150 ℃ Storage Temperature Tstg -55 to + 150 ℃ ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) »Electrical Characteristics Parameter Symbol Reverse Stand-OffVoltage Reverse BreakdownVoltage Conditions Min Typical VRWM Max Units 5.0 V VBR IT=1mA 6.0 V Reverse LeakageCurrent IR VRWM=5V,T=25℃ 0.2 uA Clamping Voltage VC IPP=5A,tp=8/20μs 15 V Junction Capacitance Cj VR = 0V, f =1MHz 10 pF 8 »Electrical Parameters (TA = 25°C unless otherwisenoted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRW M IR VBR IT I IPP Working Peak Reverse Voltage Maximum Reverse Leakage Current @ V RWM VC V BR V RWM IT IR ITIR VRWM V BR V C V Breakdown Voltage @ IT Test Current IPP Note:. 8/20μs pulsewaveform. Revision 2018 www.born-tw.com 2/4 PESD5V0S1BBN »Typical Characteristics Figure 1: Peak Pulse Power vs. Pulse Time Figure 2: Power Derating Curve 10 110 Percent of Rated Power for Ipp Ppp – Peak Pulse Power - Ppp(KW) 100 1 75w 8/20μs waveform 0.1 0.01 0.1 1 10 100 td – Pulse Duration - µs 90 Ipp 80 Percent 50 40 30 20 10 0 0 25 50 75 100 125 Ambient Temperature - TA (℃) 150 Test Waveform Paramters tr=8µs td=20µs 40 Clamping Voltage–VC (V) 100 e -1 50 40 td=Ipp/2 20 60 45 Waveform Paramters tr=8µs td=20µs 30 70 Figure 4: Clamping Voltage vs.Ipp 110 60 80 1,000 Figure3: Pulse Waveform 70 90 10 35 30 25 20 15 10 5 0 0 5 Revision 2018 10 15 Time (µs) 20 25 30 0 1 2 3 4 5 Peak Pulse Current–IPP (A) www.born-tw.com 3/4 PESD5V0S1BBN »Outline Drawing – SOD523 D -X-Y- 1 2 E DIMENSIONS SYMBOL b 2x 0.08 (0.0032) X A b C D E HE L Y A C HE L MILLIMETER INCHES MIN MAX MIN MAX 0.50 0.25 0.07 1.10 0.70 1.50 0.15 0.70 0.35 0.20 1.30 0.90 1.70 0.25 0.020 0.010 0.0028 0.043 0.028 0.059 0.006 0.028 0.014 0.0079 0.051 0.035 0.067 0.010 »Marking 1 5XB 2 »Ordering information Order code Package Base qty Delivery mode PESD5V0S1BBN SOD523 5000 Tape and reel Revision 2018 www.born-tw.com 4/4
