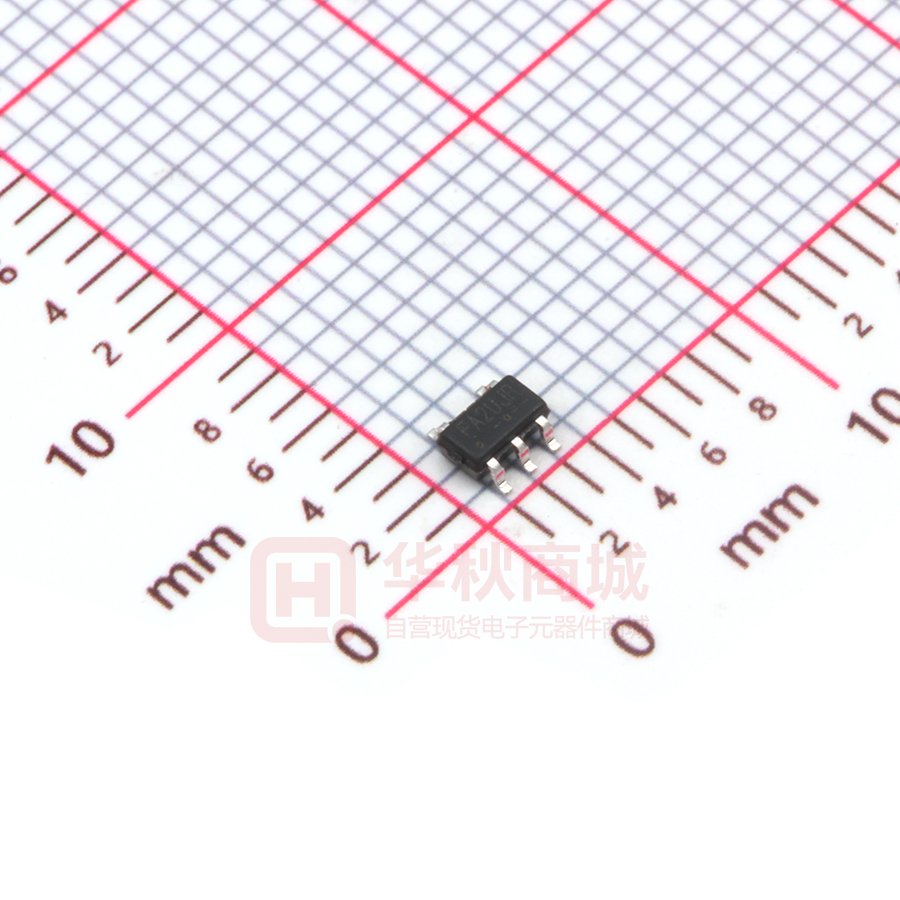

FP6381AS5CTR

FP6381A /a85T High Efficiency 1.5MHz 1.2A Synchronous Step Down Converter Description Features The FP6381A is a high efficiency, high frequency synchronous DC-DC step-down converter. The 100% duty cycle feature provides low dropout operation, extending battery life in portable systems.  The internal synchronous switch increases efficiency and eliminates the need for external Schottky diode. At shutdown mode, the input supply current is less than 1µA. The FP6381A fault protection includes cycle-by-cycle current limit, short circuit protection, UVLO and thermal shutdown. The Internal soft-start function prevents inrush current at turn-on. The FP6381A is offered in SOT-23-5, TSOT-23-5 and SOT-23-6 Packages           Low RDS(ON) for Internal Switch (Top/Bottom): 300/250mΩ 2.5V~6V Input Voltage Range 0.6V Reference Voltage 1.2A Output Current 1.5MHz Switching Frequency Internal 1ms Soft-Start Time Internal Compensation Function 100% Dropout Operation Power Good Indicator Output (SOT-23-6 only) RoHS Compliant and Halogen Free SOT-23-5, TSOT-23-5 and SOT-23-6 Packages Applications      Set Top Box LCD TV & Tablet AP Router & WiFi Dongle 3.5G & 4G Dongle USB3.0 & SSD storage Pin Assignments Ordering Information S5 Package (SOT-23-5) FP6381A□□□ FB VIN 5 4 1 2 TR: Tape/Reel C: Green 3 Package Type S5: SOT-23-5 S6: SOT-23-6 S8: TSOT-23-5 EN GND LX S6 Package (SOT-23-6) FB PG VIN 6 5 4 1 2 3 EN GND LX S8 Package (TSOT-23-5) FB VIN 5 4 1 2 SOT-23-5 Marking Part Number Product Code FP6381AS5CTR FA2 SOT-23-6 Marking Part Number Product Code FP6381AS6CTR FC4 TSOT-23-5 Marking Part Number Product Code FP6381AS8CTR FF5 3 EN GND LX Figure 1. Pin Assignment of FP6381A FP6381A-0.5-SEP-2015 1 FP6381A /a85T Typical Application Circuit OFF ON EN L1 VIN VIN C1 C4 PG LX VOUT FP6381A R3 PG R1 C3 C2 (opt.) FB GND R2 Figure 2. Schematic Diagram VIN=5V, the recommended BOM list is as below. VOUT 3.3V 2.5V 1.8V 1.5V 1.2V 1.05V C1 4.7μF MLCC 4.7μF MLCC 4.7μF MLCC 4.7μF MLCC 4.7μF MLCC 4.7μF MLCC C4 0.1μF MLCC 0.1μF MLCC 0.1μF MLCC 0.1μF MLCC 0.1μF MLCC 0.1μF MLCC R1 453kΩ 316kΩ 200kΩ 150kΩ 100kΩ 75kΩ R2 100kΩ 100kΩ 100kΩ 100kΩ 100kΩ 100kΩ L1 2.2μH 2.2μH 2.2μH 1.8μH 1.8μH 1.5μH C2 10μF MLCC 10μF MLCC 10μF MLCC 10μF MLCC 10μF MLCC 10μF MLCC Table 1. Recommended Component Values FP6381A-0.5-SEP-2015 2 FP6381A /a85T Functional Pin Description Pin Name Pin No. (SOT-23-5) (TSOT-23-5) Pin No. (SOT-23-6) VIN 4 4 Power Supply Input Pin. to avoid noise influence. GND 2 2 Ground Pin. EN 1 1 Enable Control Pin. Pull high to turn the IC on, and pull low to disable the IC. Don’t leave this pin floating. FB 5 6 Voltage Feedback Input Pin. Connect FB and VOUT with a resistive voltage divider. This IC senses feedback voltage via FB and regulates it at 0.6V. PG -- 5 Open Drain Power Good Output Pin. LX 3 3 Power Switching Output. Pin Function Placed input capacitors as close as possible from VIN to GND Connect an external inductor to this switching node. Block Diagram PG (SOT-23-6) Power Good EN VIN 1M Undervoltage Lockout Bias Supply Enable Control Slope Compensation 90% VREF FB COMP EA Control Logic Current Limit Logic Control and Driver Logic 1 X LX Compensation VREF Soft Start Oscillator COMP GND Figure 3. Block Diagram of FP6381A FP6381A-0.5-SEP-2015 3 FP6381A Absolute Maximum Ratings (Note 1) /a85T ● VIN to GND -------------------------------------------------------------------------------------------------- -0.3V to +6.5V ● LX to GND --------------------------------------------------------------------------------------------------- -0.3V to VIN+0.3V ● EN, FB, PG to GND --------------------------------------------------------------------------------------- -0.3V to VIN ● Package Thermal Resistance, (θJA) SOT-23-5 ---------------------------------------------------------------------------------------- +250°C/W TSOT-23-5 -------------------------------------------------------------------------------------- +250°C/W SOT-23-6 ---------------------------------------------------------------------------------------- +250°C/W ● Package Thermal Resistance, (θJC) SOT-23-5 ---------------------------------------------------------------------------------------- +130°C/W TSOT-23-5 -------------------------------------------------------------------------------------- +130°C/W SOT-23-6 ---------------------------------------------------------------------------------------- +110ºC/W ● Maximum Junction Temperature (TJ) ----------------------------------------------------------------- +150°C ● Lead Temperature (Soldering, 10sec.) --------------------------------------------------------------- +260°C ● Storage Temperature (TS) ------------------------------------------------------------------------------- -65°C to +150°C Note 1：Stresses beyond those listed under “Absolute Maximum Ratings" may cause permanent damage to the device. Recommended Operating Conditions (Note 2) ● Supply Voltage (VIN) ------------------------------------------------------------------------------------------- +2.5V to +6V ● Operation Temperature Range (TOPR) -------------------------------------------------------------------- -40°C to +85°C Note 2：The device is not guaranteed to function outside its operating conditions. FP6381A-0.5-SEP-2015 4 FP6381A /a85T Electrical Characteristics (VIN=5V, VOUT=2.5V, TA=25°C, unless otherwise specified.) Parameter Symbol Shutdown Current ISHDN Quiescent Current Iq Reference Voltage VREF FB Input Leakage Current P-Channel MOSFET On-Resistance (Note 3) N-Channel MOSFET On-Resistance (Note 3) IFB Conditions Min Typ Max Unit EN=0V 0.1 1 μA VFB=0.65V, IOUT=0A 80 0.588 VFB=VIN μA 0.6 0.612 V 0.01 1 µA RDS(ON) 300 mΩ RDS(ON) 250 mΩ P-Channel Current Limit (Note 3) ILIM 1.6 A EN High-Level Input Voltage VIH 1.5 V EN Low-Level Input Voltage VIL Under Voltage Lockout Voltage 0.4 V UVLO 2.4 V UVLO Hysteresis VHYS 0.2 V Oscillation Frequency FOSC IOUT=200mA 1.2 Minimum On Time 50 Maximum Duty Cycle Internal Soft Start Time PG Rising Threshold PG Sink Current 100 TSS 1.8 MHz ns % 1 ms VPG (H) VFB Rising 90 % IPG VPG=0.1V 1 mA 100 Ω 150 °C LX Discharge Resistance Thermal Shutdown Temperature (Note 3) 1.5 TSD Note 3：Guarantee by design. FP6381A-0.5-SEP-2015 5 FP6381A /a85T Typical Performance Curves VIN=5V, C1=4.7μF//0.1μF, C2=10μF, C3=22pF, L1=1.8μH, TA=+25°C, unless otherwise noted. VOUT=3.3V VOUT=1.2V Figure 5. Efficiency vs. Load Current 1.8 0.604 0.602 0.6 0.598 0.596 0.594 0.592 0.59 0.588 0.586 0.584 0.582 0.58 1.7 Frequency (KHz) Feedback Voltage (V) Figure 4. Efficiency vs. Load Current VIN=5V IOUT=0.2A 1.6 1.5 1.4 VIN=5V, VOUT=1.2V IOUT=0.4A 1.3 1.2 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 -40 -30 -20 -10 Temperature (°C) 10 20 30 40 50 60 70 80 Temperature (°C) Figure 6. Feedback Voltage vs. Temperature IOUT=0A 0 Figure 7. Frequency vs. Temperature IOUT=1.2A VIN 2V/div. VOUT 20mV/div. VLX 2V/div. IL 100mA/div. 2V/div. VOUT 20mV/div. VLX 2V/div. IL 4ms/div. Figure 8. Steady State Waveform FP6381A-0.5-SEP-2015 VIN 500mA/div. 400ns/div. Figure 9. Steady State Waveform 6 FP6381A /a85T Typical Performance Curves (Continued) VIN=5V, VOUT=1.2V, C1=4.7μF//0.1μF, C2=10μF, C3=22pF, L1=1.8μH, TA=+25°C, unless otherwise noted. IOUT=1.2A IOUT=0A VIN 2V/div. VIN 2V/div. VOUT 500mV/div. VOUT 500mV/div. VLX 2V/div. VLX 2V/div. IL 200mA/div. IL 1A/div. 400μs/div. 400μs/div. Figure 10. Power On through VIN Waveform IOUT=0A Figure 11. Power On through VIN Waveform IOUT=1.2A VIN 2V/div. VIN 2V/div. VOUT 500mV/div. VOUT 500mV/div. VLX 2V/div. IL VLX IL 1A/div. 2V/div. 1A/div. 20ms/div. 1ms/div. Figure 12. Power Off through VIN Waveform Figure 13. Power Off through VIN Waveform IOUT=0A IOUT=1.2A VEN VEN 5V/div. VOUT 500mV/div. VLX IL 5V/div. VOUT 500mV/div. VLX 5V/div. 5V/div. 500mA/div. IL 1A/div. 200μs/div. 200μs/div. Figure 14. Power On through EN Waveform Figure 15. Power On through EN Waveform FP6381A-0.5-SEP-2015 7 FP6381A /a85T Typical Performance Curves (Continued) VIN=5V, VOUT=1.2V, C1=4.7μF//0.1μF, C2=10μF, C3=22pF, L1=1.8μH, TA=+25°C, unless otherwise noted. IOUT=0A IOUT=1.2A VEN 5V/div. VEN 5V/div. VOUT 500mV/div. VOUT 500mV/div. VLX 2V/div. VLX 2V/div. IL 100mA/div. IL 1A/div. 2ms/div. 40μs/div. Figure 16. Power Off through EN Waveform Figure 17. Power Off through EN Waveform IOUT=0.3A to 1.2A VOUT IL 100mV/div. 500mA/div. 200μs/div. Figure 18. Load Transient Waveform FP6381A-0.5-SEP-2015 8 FP6381A /a85T Function Description The FP6381A is a high efficiency, internal compensation and constant frequency current mode step-down synchronous DC/DC converter. It has integrated high-side (300mΩ, typ.) and low-side (250mΩ, typ.) power switches, and provides 1.2A continuous load current. It regulates input voltage from 2.5V to 6V, and down to an output voltage as low as 0.6V. Control Loop Slope compensated current mode PWM control provides stable switching and cycle-by-cycle current limit for superior load, line response, protection of the internal main switch and synchronous rectifier. The FP6381A switches at a constant frequency (1.5MHz) and regulates the output voltage. During each cycle, the PWM comparator modulates the power transferred to the load by changing the inductor peak current based on the feedback error voltage. During normal operation, the main switch is turned on for a certain time to ramp the inductor current at each rising edge of the internal oscillator, and switched off when the peak inductor current is above the error voltage. When the main switch is off, the synchronous rectifier will be turned on immediately and stay on until next cycle starts. Enable The FP6381A EN pin provides digital control to turn on/off the regulator. When the voltage of EN exceeds the threshold voltage, the regulator will start the soft start function. If the EN pin voltage is below the shutdown threshold voltage, the regulator will turn into the shutdown mode and the shutdown current will be smaller than 1μA. For auto start-up operation, connect EN to VIN. Soft Start The FP6381A employs internal soft start function to reduce input inrush current during start up. The internal soft start time will be 1ms. Over Current Protection The FP6381A over current protection function is implemented by using cycle-by-cycle current limit architecture. The inductor current is monitored by measuring the high-side MOSFET series sense resistor voltage. When the load current increases, the inductor current will also increase. When the peak inductor current reaches the current limit threshold, the output voltage will start to drop. When the over current condition is removed, the output voltage will return to the regulated value. Short Circuit Protection The FP6381A provides short circuit protection function to prevent the device damaged from short condition. When the short condition occurs and the feedback voltage drops lower than 40% of the regulation level, the oscillator frequency will be reduced to prevent the inductor current increasing beyond the current limit. In the meantime, the current limit will also be reduced to lower the short current. Once the short condition is removed, the frequency and current limit will return to normal. Over Temperature Protection The FP6381A incorporates an over temperature protection circuit to protect itself from overheating. When the junction temperature exceeds the thermal shutdown threshold temperature, the regulator will be shutdown. And the hysteretic of the over temperature protection is 30°C (typ). PG Signal Output PG pin is an open-drain output and requires a pull up resistor. PG is actively held low in soft-start, standby and shutdown. It is released when the output voltage rises above 90% of nominal regulation point. Under Voltage Lockout When the FP6381A is power on, the internal circuits will be held inactive until VIN voltage exceeds the UVLO threshold voltage. And the regulator will be disabled when VIN is below the UVLO threshold voltage. The hysteretic of the UVLO comparator is 200mV (typ). FP6381A-0.5-SEP-2015 9 FP6381A /a85T Application Information Output Voltage Setting The output voltage VOUT is set by using a resistive divider from the output to FB. The FB pin regulated voltage is 0.6V. Thus the output voltage is: T= . 1+ A low ESR capacitor is required to keep the noise minimum. Ceramic capacitors are better, but tantalum or low ESR electrolytic capacitors may also suffice. Output Capacitor Selection R1 R2 Table 2 lists recommended values of R1 and R2 for most used output voltage. Table 2 Recommended Resistance Values VOUT R1 R2 3.3V 453kΩ 100kΩ 2.5V 316kΩ 100kΩ 1.8V 200kΩ 100kΩ 1.5V 150kΩ 100kΩ 1.2V 100kΩ 100kΩ The output capacitor is used to keep the DC output voltage and supply the load transient current. When operating in constant current mode, the output ripple is determined by four components: R PPL t = R PPL + C t + R PPL ( SL R PPL SR t t + S t The following figures show the form of the ripple contributions. VRIPPLE(ESR)(t) Place resistors R1 and R2 close to FB pin to prevent stray pickup. Input Capacitor Selection The use of the input capacitor is filtering the input voltage ripple and the MOSFETS switching spike voltage. Because the input current to the step-down converter is discontinuous, the input capacitor is required to supply the current to the converter to keep the DC input voltage. The capacitor voltage rating should be 1.25 to 1.5 times greater than the maximum input voltage. The input capacitor ripple current RMS value is calculated as: (RMS = = 1 T T + VRIPPLE(ESL) (t) (t) + VRIPPLE(C) (t) (t) + VNOISE (t) (t) Where D is the duty cycle of the power MOSFET. This function reaches the maximum value at D=0.5 and the equivalent RMS current is equal to IOUT/2. The following diagram is the graphical representation of above equation. = VRIPPLE(t) 0.6 1.2A IIN(RMS) (A) 0.5 (t) 0.4 0.3 0.5A 0.2 0.1 0 10 20 30 40 50 60 70 80 90 D (%) FP6381A-0.5-SEP-2015 10 FP6381A /a85T Application Information (Continued) R PPL ( SR = R PPL ( SL = R PPL (C = T F SC T 1 L SR SL L+ SL L= T F SC2 That will lower ripple current and result in lower output ripple voltage. The Δ L is inductor peak-to-peak ripple current: L C 1 T F SC T T The following diagram is an example to graphically represent Δ L equation. Where FOSC is the switching frequency, L is the inductance value, VIN is the input voltage, ESR is the equivalent series resistance value of the output capacitor, ESL is the equivalent series inductance value of the output capacitor and the COUT is the output capacitor. Probe Ground 0.45 L=1.5μH 0.4 ΔIL (A) Low ESR capacitors are preferred to use. Ceramic, tantalum or low ESR electrolytic capacitors can be used depending on the output ripple requirements. When using the ceramic capacitors, the ESL component is usually negligible. It is important to use the proper method to eliminate high frequency noise when measuring the output ripple. The figure shows how to locate the probe across the capacitor when measuring output ripple. Remove the scope probe plastic jacket in order to expose the ground at the tip of the probe. It gives a very short connection from the probe ground to the capacitor and eliminates noise. 0.35 L=1.8μH 0.3 L=2.2μH 0.25 0.2 0.15 2.5 3 3.5 4.5 6 . T(MA T F T SC L To guarantee sufficient output current, peak inductor current must be lower than the FP6381A high-side MOSFET current limit. The peak inductor current is shown as below: P A = Load Current Inductor Selection FP6381A-0.5-SEP-2015 5.5 A good compromise value between size and efficiency is to set the peak-to-peak inductor ripple current Δ L equal to 30% of the maximum load current. But setting the peak-to-peak inductor ripple current Δ L between 20%~50% of the maximum load current is also acceptable. Then the inductance can be calculated with the following equation: Ceramic Capacitor The output inductor is used for storing energy and filtering output ripple current. But the trade-off condition often happens between maximum energy storage and the physical size of the inductor. The first consideration for selecting the output inductor is to make sure that the inductance is large enough to keep the converter in the continuous current mode. 5 VOUT=1.2V, FOSC=1.5MHz L= GND 4 VIN (V) L= VOUT T 1 L T(MA + L 2 IPEAK IOUT(MAX) ∆IL Time 11 FP6381A /a85T Application Information (Continued) Feedforward Capacitor Selection PCB Layout Recommendation Internal compensation function allows users saving time in design and saving cost by reducing the number of external components. The use of a feedforward capacitor C6 in the feedback network is recommended to improve transient response or higher phase margin. The device’s performance and stability are dramatically affected by PCB layout. It is recommended to follow these general guidelines shown as below: 1. Place the input capacitors and output capacitors as close to the device as possible. The traces which connect to these capacitors should be as short and wide as possible to minimize parasitic inductance and resistance. FB R2 For optimizing the feedforward capacitor, knowing the cross frequency is the first thing. The cross frequency (or the converter bandwidth) can be determined by using a network analyzer. When getting the cross frequency with no feedforward capacitor identified, the value of feedforward capacitor C6 can be calculated with the following equation: C = 2 1 FCR SS 1 R1 1 1 + R1 R2 2. Place feedback resistors close to the FB pin. 3. Keep the sensitive signal (FB) away from the switching signal (LX). 4. Multi-layer PCB design is recommended. GND C1 VOUT L1 VIN VIN 4 3 LX PG 5 2 GND FB 6 1 EN R1 C3 C3 R1 FP6381A R3 VOUT C2 GND R2 Figure 19. Recommended Layout Diagram Where FCROSS is the cross frequency. To reduce transient ripple, the feedforward capacitor value can be increased to push the cross frequency to higher region. Although this can improve transient response, it also decreases phase margin and causes more ringing. In the other hand, if more phase margin is desired, the feedforward capacitor value can be decreased to push the cross frequency to lower region. In general, the feedforward capacitor range is between 10pF to 330pF. FP6381A-0.5-SEP-2015 12 FP6381A /a85T Outline Information SOT-23-5 Package (Unit: mm) SYMBOLS UNIT DIMENSION IN MILLIMETER MIN MAX A 0.90 1.45 A1 0.00 0.15 A2 0.90 1.30 B 0.30 0.50 D 2.80 3.00 E 2.60 3.00 E1 1.50 1.70 e 0.90 1.00 e1 1.80 2.00 L 0.30 0.60 Note：Followed From JEDEC MO-178-C. Carrier Dimensions FP6381A-0.5-SEP-2015 13 FP6381A /a85T Outline Information (Continued) TSOT-23-5 Package (Unit: mm) SYMBOLS UNIT DIMENSION IN MILLIMETER MIN MAX A 0.70 0.90 A1 0.00 0.10 A2 0.70 1.00 B 0.30 0.50 D 2.80 3.00 E 2.60 3.00 E1 1.50 1.70 e 0.90 1.00 e1 1.80 2.00 L 0.30 0.60 Carrier Dimensions Tape Size (W1) mm Pocket Pitch (P) mm 8 4 FP6381A-0.5-SEP-2015 Reel Size (A) in mm Reel Width (W2) mm 7 180 8.4 Empty Cavity Length mm Units per Reel 300~1000 3,000 14 FP6381A /a85T Outline Information (Continued) SOT-23-6 Package (Unit: mm) SYMBOLS UNIT DIMENSION IN MILLIMETER MIN MAX A 0.90 1.45 A1 0.00 0.15 A2 0.90 1.30 B 0.30 0.50 D 2.80 3.00 E 2.60 3.00 E1 1.50 1.70 e 0.90 1.00 e1 1.80 2.00 L 0.30 0.60 Note：Followed From JEDEC MO-178-C. Carrier Dimensions Life Support Policy Fitipower’s products are not authorized for use as critical components in life support devices or other medical systems. FP6381A-0.5-SEP-2015 15
