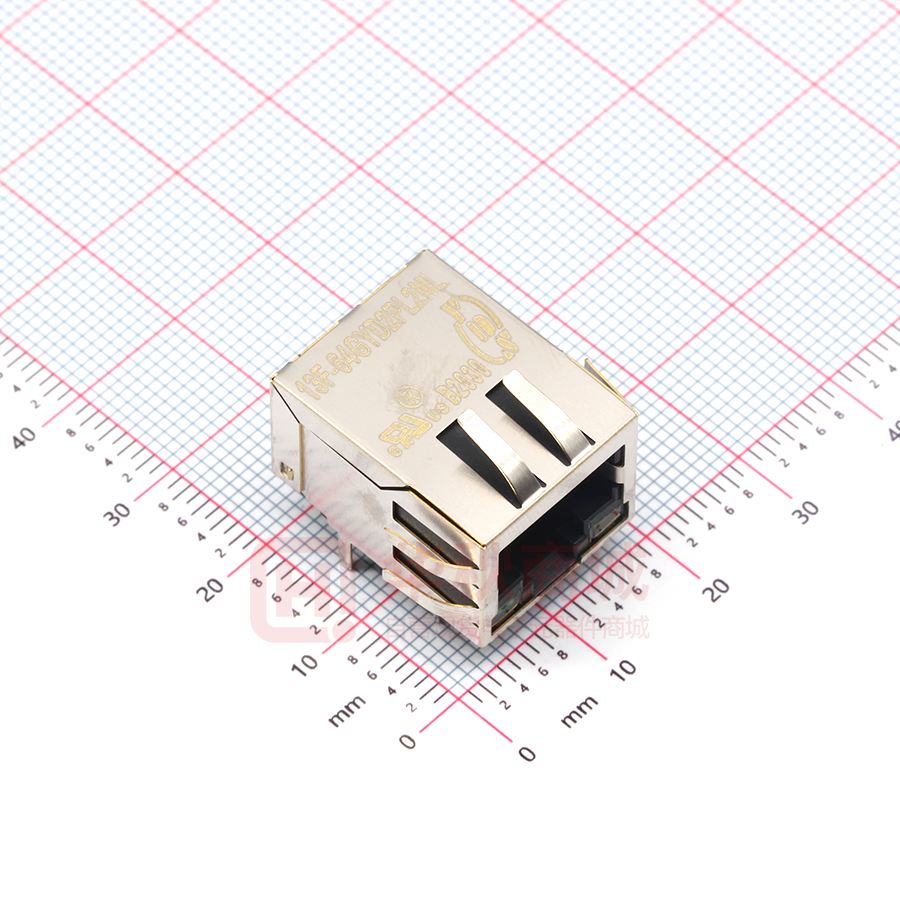

13F-64GYD2PL2NL

REV. Mechanicals Dimensions DESCRIPTION DATE DWN AP’PD ELECTRICAL SPECFICATIONS@25℃: Turn Ratio(±5%):TX&RX=1CT:1CT Inductance(100KHz/0.1V@8mA):350uH MIN Insertion Loss (dB MAX):-1.0dB(0.3-100MHz) Return Loss (dB MIN): -18dB(1-30MHz), -16dB(40MHz), -12dB(50MHz), -10dB(60-80MHz) Cross talk(dB MIN): -40dB(30MHz), -35dB(60MHz), -30dB(100MHz) CMR (dB MIN): -30dB(30MHz), -20dB(60MHz), -20dB(100MHz) HI-POT:1500Vrms/0.5mA/2Sec Operating Temperature:-40℃ TO +85℃ RoHS compliance:YES UNIT: mm Unless otherwise specified, all tolerances are ±0.25 Schematics 1000pF/2KV J8 75Ω P8 J7 P7 RD CT CT RD + TD TD + Ref:BOM-AE45 75Ω P6 75Ω P5 TX P4 J3 P2 J2 P1 J1 9 RX + TX TX + Yellow Green LEFT RX - J4 75Ω P3 J6 J5 10 RIGHT 11 RJ-45 Front View PCB Top View RX 元冊科技股份有限公司 YUAN DEAN SCIENTIFIC CO., LTD. TITLE 10/100 BASE-T SINGLE PORT RJ-45 JACK MAGNETICS P/N 13F-64GYD2PLXNL REV. 0 PAGE NO 1-2 DATE 2008-7-30 AP’PD Li YueSheng DWN Chen JiaPei 12 REV. Mechanicals DESCRIPTION DATE DWN AP’PD Housing Material: MATERIAL:NYLON GF (Fr50) UL94V-0 STANDARD COLOR:BLACK Insert Material: MATERIAL:Phos–Bronze C5210 EH---0.35mm Thickness Insert –PBT GF UL94V-0 Packaging 1. packaging unit : 60 PCS/tray 2. packaging material : PET 1.PLATING(1) NICKEL 17.5±0.5 2.PLATING(2) 100%Sn 3.PLATING(3) GOLD (3u＂～50u＂) Plate Material: PBT GF UL 94V-0 29.4±0.5 Contact pin Material: MATERIAL: Phos–Bronze C5210 EH---0.35mm Thickness 1.PLATING(1) NICKEL 2.3±0.2 Unit=cm 3. outer carton unit：1320 pcs/ 22 Trays/box 2.PLATING(2) 100%Sn Shielding Material: BRASS C2680 H.---0.25mm THICKNESS PLATING NICKEL Operating Life:750 Cycles MIN. Environmental Unit=cm 1.Storage Temp:-40℃TO +85℃. 2.Operating Temp:-40℃TO +85℃. 3.Wave Soldering Temperature:230～250℃(3～5 SECONDS) 元冊科技股份有限公司 4. MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPART F. Part Number YUAN DEAN SCIENTIFIC CO., LTD. TITLE 13F-64GYD2PLXNL RoHS version Gold Plating:1=3u",2=6u",3=15u",4=30u",5=50u", 10/100 BASE-T SINGLE PORT RJ-45 JACK MAGNETICS P/N 13F-64GYD2PLXNL REV. 0 PAGE NO 2-2 DATE 2008-7-30 AP’PD Li YueSheng DWN Chen JiaPei
