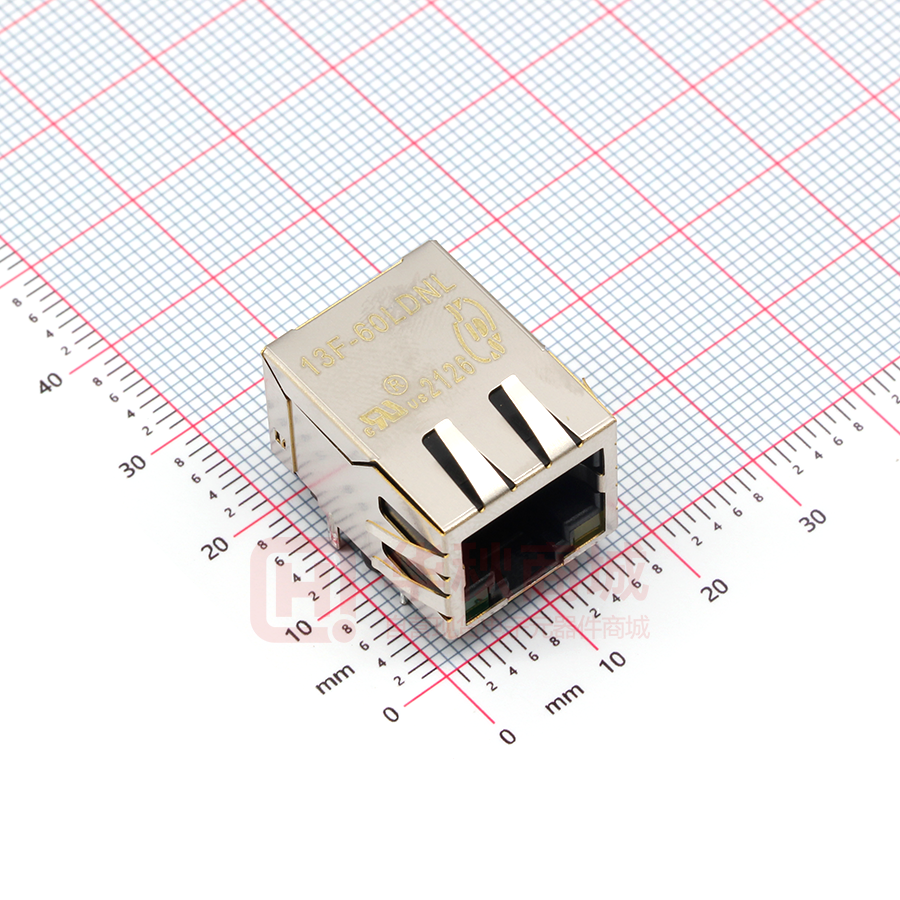

13F-60LDNL

REV. 一、Mechanicals Dimensions DESCRIPTION DATE DWN AP’PD 三、ELECTRICAL SPECFICATIONS@25℃: 1. Turn Ratio(±5%):1CT:1CT 2. Inductance(100KHz/0.1V@8mA):350uH MIN 3. CWW(100KHz/0.1V):28pF MAX 4. Insertion Loss (dB MAX):-1.0dB(1-100MHz) 5. Return Loss (dB MIN): -18dB(1-30MHz),-16dB(40MHz),-14dB(50MHz), -12dB(60-80MHz) 6. Cross talk(dB MIN):-35dB(1-80MHz) 7. HI-POT:1500Vrms/0.5mA/60Sec or 1650Vrms/0.5mA/2Sec 8. Operating Temperature:-40℃ TO +85℃ 9. RoHS compliance:YES UNIT:mm Unless otherwise specified, all tolerances are ±0.25 二、Schematics TD TD + CT J7 P7 P6 75Ω 1000pF/2KV Shield P5 RX P4 CT RD RD + J8 75Ω P8 Ref: BOM-Y19 75Ω J5 J3 P2 J2 P1 J1 9 TX + RX RX + 元冊科技股份有限公司 YUAN DEAN SCIENTIFIC CO., LTD. TITLE 10/100 BASE-T SINGLE PORT RJ-45 JACK MAGNETICS P/N 13F-60LDNL REV. 0 PAGE NO 1-4 DATE 2009-02-14 AP’PD Li YueSheng DWN Hu XiaoLan Yellow Green LEFT TX - J4 75Ω P3 J6 RJ-45 Front View PCB Top View TX 10 RIGHT 11 12 REV. 四、Mechanicals DESCRIPTION DATE DWN AP’PD Housing Material: MATERIAL:NYLON GF (Fr50) UL94V-0 STANDARD COLOR:BLACK Insert Material: MATERIAL:Phos–Bronze C5210 EH---0.35mm Thickness Insert –PBT GF UL94V-0 七、Packaging 1. packaging unit : 60 PCS/tray 2. packaging material : PET 1.PLATING(1) NICKEL 17.5±0.5 2.PLATING(2) 100%Sn 3.PLATING(3) GOLD (3u＂～50u＂) Plate Material: PBT GF UL 94V-0 29.4±0.5 Contact pin Material: MATERIAL: Phos–Bronze C2680---0.35mm Thickness 2.3±0.2 Unit=cm 3. outer carton unit：1320 pcs/ 22 Trays/box 1.PLATING(1) NICKEL 2.PLATING(2) 100%Sn Shielding Material: BRASS SUS430---0.25mm THICKNESS PLATING NICKEL Operating Life:750 Cycles MIN. 五、Environmental Unit=cm 1.Storage Temp:-40℃TO +85℃. 2.Operating Temp:. -40℃TO +85℃ 3. MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68,SUBPARTF. 元冊科技股份有限公司 六、Part Number YUAN DEAN SCIENTIFIC CO., LTD. 13F-60LDNL TITLE RoHS version 10/100 BASE-T SINGLE PORT RJ-45 JACK MAGNETICS P/N 13F-60LDNL REV. 0 PAGE NO 2-4 DATE 2009-02-14 AP’PD Li YueSheng DWN Hu XiaoLan REV. DESCRIPTION DATE DWN AP’PD 八、RJ PLUG SPECIFICATION 元冊科技股份有限公司 YUAN DEAN SCIENTIFIC CO., LTD. TITLE 10/100 BASE-T SINGLE PORT RJ-45 JACK MAGNETICS P/N 13F-60LDNL REV. 0 PAGE NO 3-4 DATE 2009-02-14 AP’PD Li YueSheng DWN Hu XiaoLan REV. DESCRIPTION DATE DWN AP’PD 九、PROFILE OF WAVE SOLDER 元冊科技股份有限公司 YUAN DEAN SCIENTIFIC CO., LTD. SUGGESTED WAVE SOLDER CURVER TITLE 1. Peak temperature(Tp) : 250±10℃ 2. Peak temperature(Tp) time : 5sec max 10/100 BASE-T SINGLE PORT RJ-45 JACK MAGNETICS P/N 13F-60LDNL REV. 0 PAGE NO 4-4 DATE 2009-02-14 AP’PD Li YueSheng DWN Hu XiaoLan
