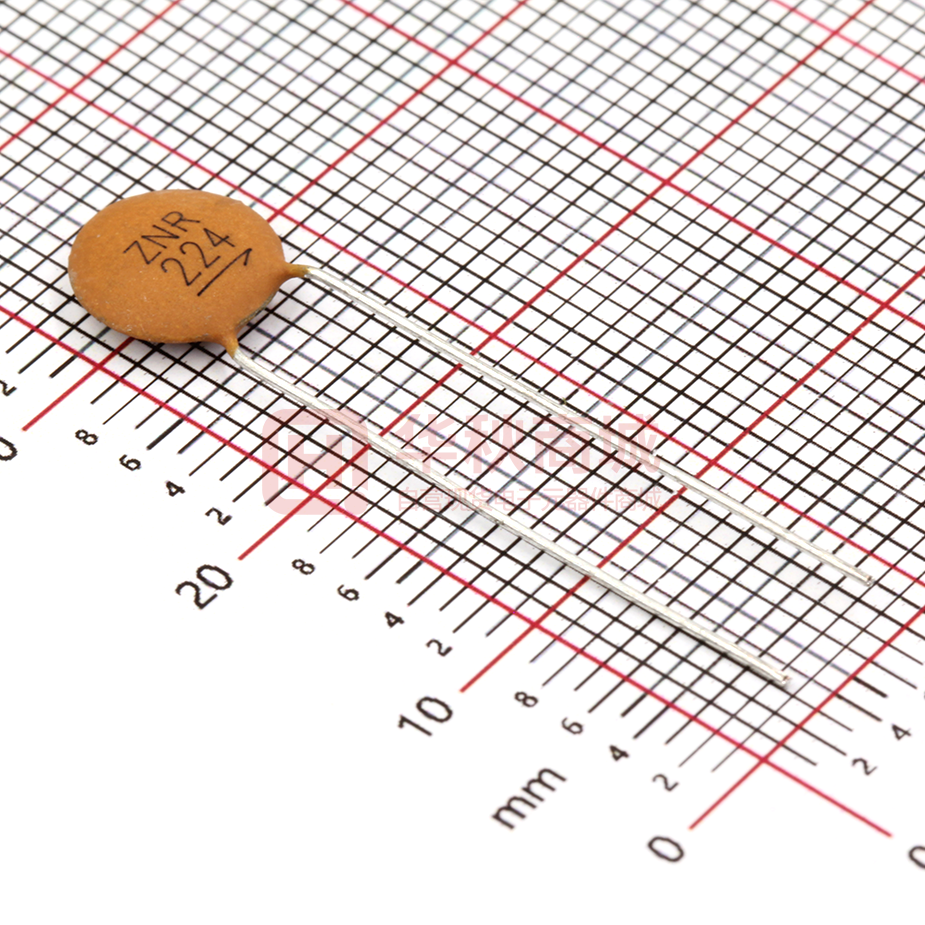

CC1H224ZC1GD3F8A3100

编号DOC NO.: DEC-SA-WI003 版本REV.: B/3 瓷片电容器规格承认书 日期DATE: 2021/3/17 APPROVAL SPECIFICATION FOR DISC CERAMIC CAPACITORS 页码PAGE: 1 / 10 目 录 CONTENTS 1. 规格表 DATA SHEET …………………………………………………………… 2 2. 总则 GENERAL …………………………………………………………… 3 3. 适用标准 APPLICABLE STANDARD …………………………………………………………… 3 4. 产品结构 STRUCTURE …………………………………………………………… 3 5. 产品编码 PART NUMBER …………………………………………………………… 4 6. 测量和试验 MEASUREMENT AND TEST …………………………………………………………… 5 7. 包装和储存 PACKAGING AND STORAGE …………………………………………………………… 7 …………………………………………………………… 8. 测量和使用注意事项 8 MEASURING AND APPLICATION NOTICE 9. 编带尺寸规格 TAPING SPECIFICATIONS …………………………………………………………… 10 请确保我们的产品安装到您的产品上前，已根据您的需求进行了评估。 Please make sure that your product has been evaluated in view of your specifications with our product being mounted to your product. 请您在使用我们的产品时，不要偏离此标准。 You are requested not to use our product deviating from this specification. 编号DOC NO.: DEC-SA-WI003 版本REV.: B/3 瓷片电容器规格承认书 日期DATE: 2021/3/17 APPROVAL SPECIFICATION FOR DISC CERAMIC CAPACITORS 页码PAGE: 2 / 10 1. 规格表 DATA SHEET 产品编码 Part number CC1H224ZC1GD3F8A3100 规格描述 Description 50V/224/Z/F5.08/直脚/L20/酚醛(黄)/Y5V(Ⅲ)/8A/ZNR 客户料号 Customer P/N C2761732 介质类别 Dielectric class Class 3 (Surface insulation type) 额定电压 Rated voltage 电容量 Capacitance 损耗角正切 Tangent of loss angle 耐电压 Testing voltage 50VDC 0.22uF+80%/-20% @ 1kHz 0.1Vrms 25ºC 0.05 max @1kHz 0.1Vrms 25ºC 75VDC (Charge/discharge current 2mA max) 3s PASS 绝缘电阻 Insulation resistance 114MΩ min @ 50V 60s, RH
