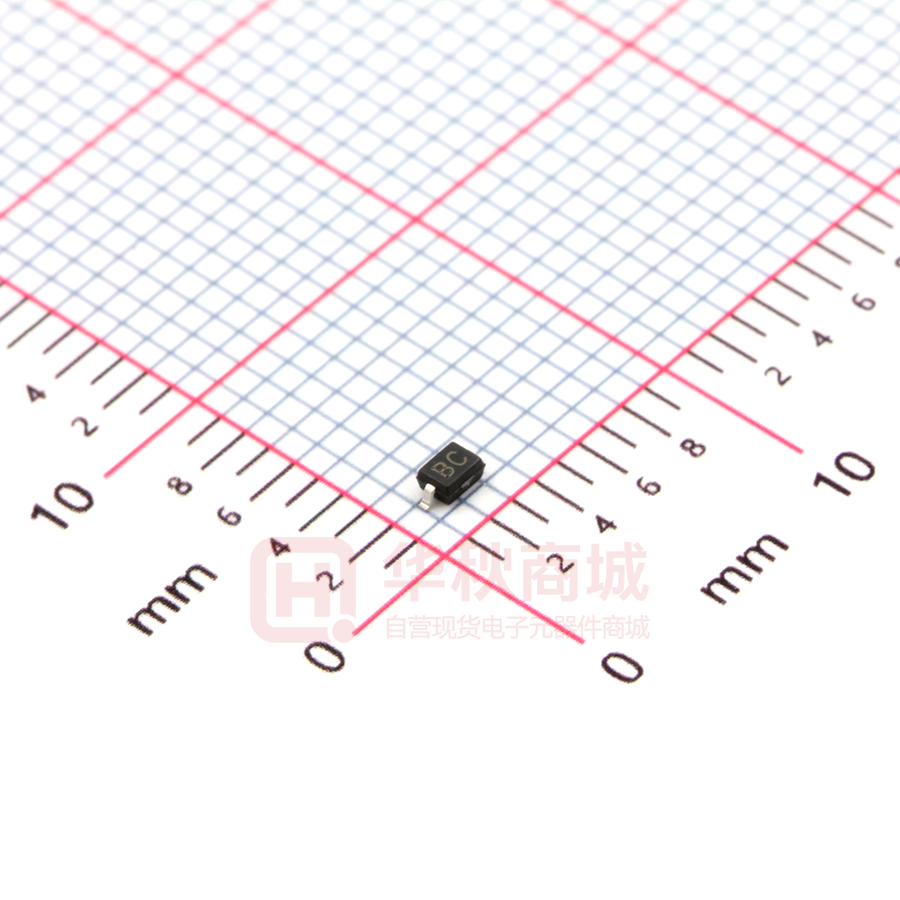

BV08C

BV08C Order Code: BV08C Version: A2 2016-08-15 Transient Voltage Suppressor Features Exterior IEC 61000-4-2(ESD)±15KV(air), ±8KV(contact) 150Watts peak pulse power (tp=8/20μS) Ultra low capacitance: 1.5pF maximum Low clamping voltage Moisture sensitivity level：Level 1 Weight 5.0 mg Small package: SOD323 2 1 SOD323 Agency Approvals Application Information xDSL Icon Description Compliance with 2011/65/EU Compliance with IEC61249-2-21:2003 Mean lead free Part Number and Electrical Parameter IDRM@ VDRM Part Number BV08C μA V MAX 2 VBR①@ IR V mA MIN 8 8.5 Vc@Ipp② V A MAX 1 13.4 Vc@Ipp② V A MAX 1 18.5 CO③ pF MAX 8 1.5 Absolute maximum ratings measured at T= 25ºC RH = 45%-75% (unless otherwise noted). ① VBR is measured at IR=1mA ② Surge Waveform: 8/20μS. ③ Off-state capacitance is measured in VDC=0V,VRMS=1V,f=1MHz Part Numbering System BV 08 C (1) (2) (3) (1) Bencent Transient Voltage Suppressor (2) Series: 08 etc. (3)Bidirectional TVS 1/4 www.bencent.com.cn Mark B42LC B006U2G BC 0909 0909 BC: Part Number Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV08C Order Code: BV08C Version: A2 2016-08-15 Transient Voltage Suppressor V-I Curve Parameters Definition VC Clamping voltage Ipp Surge waveform 8/20μs VDRM Stand-off Voltage VBR Breakdown Voltage IDRM Reverse Leakage Current IR Test current Ppp Peak Pulse Power Dissipation IPP VC VBR VDRM IR IDRM IDRM IR V VDRM VBR VC IPP Typical Characteristics Thermal Considerations symbol Parameter Value Unit TJ Operating Junction Temperature Range -55 to +150 ℃ TS Storage Temperature Range -55 to +150 ℃ 2/4 www.bencent.com.cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV08C Order Code: BV08C Version: A2 2016-08-15 Transient Voltage Suppressor Environmental Characteristics Technical standards Testing items High temperature Reverse Bias Test High Temperature Life Test High-low Temperature Cycle test High Temperature &High Humidity Test Pressure cooker Test Resistance of soldering heat Temperature: 150±3℃ Bias=80%VDRM Time:168H Temperature: 150℃ Time:168H Temperature: From -40℃ to125℃ Dwell time ：30min,10cycles Temperature: 85℃Humidity:85% Time:168H Temperature: 121℃，2atm. Humidity:100% Time:24H Temperature: 260±5℃ Time of dip soldering：10s，3times Note: The above testing items can be specified by customer’s special request Product Dimensions REF mm inch A 1.17(max) 0.046(max) A1 0.10(max) 0.004(max) b 0.34±0.10 0.013±0.0039 c 0.17±0.08 0.007±0.0032 D 1.66±0.14 0.065±0.0055 E 1.28±0.17 0.050±0.0066 H 2.5±0.2 0.098±0.0079 L 0.28±0.18 0.011±0.0071 Q1 0.25±0.15 0.010±0.0059 Recommended Soldering Pad A D C 3/4 B www.bencent.com.cn REF mm inch A 3.20 0.126 B 1.08 0.043 C 1.06 0.042 D 0.54 0.021 Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications BV08C Order Code: BV08C Version: A2 2016-08-15 Transient Voltage Suppressor Reflow Profile Pb-Free assembly Reflow Condition 150°C Temperature Max 200°C Time （min to max） 60 – 180 secs Average ramp up rate（Liquid） Tamp（TL） to peal 3°C/s max - Temperature (TL) (Liquid) 217°C - Temperature (TL) 60 – 150 secs Peak Temperature (TP) 260+0/-5 °C Time within 5°C of actual peak Temperature (TP) 30secs Ramp-down Rate 6°C/s max Time 25°C to peak Temperature (TP) 8 mins Max. Do not exceed 260°C Package Reel Critical Zone TL to TP Ramp-up TL 3°C/s max TS(max) to TL - Ramp-up Rate Reflow TP TP Temperature Pre Heat Temperature Min TL TS(max) Ramp-down Preheat TS(min) TS 25 Time time to peak temperature Information REF mm inch A 1.46+/-0.1 0.057+/-0.004 B 3.10+/-0.3 0.122+/-0.012 d 1.50+/-0.1 0.059+/-0.004 D 178+/-1.0 7.008+/-0.039 D1 55+/-3 2.165+/-0.118 D2 13+/-0.5 0.512+/-0.020 E 1.75+/-0.1 0.069+/-0.004 F 3.5+/-0.2 0.138+/-0.008 P 4.0+/-0.2 0.157+/-0.008 P0 4.0+/-0.2 0.157+/-0.008 P1 2.0+/-0.2 0.079+/-0.008 W 8.0+/-0.2 0.315+/-0.008 W1 12.3+/-1.0 0.484+/-0.039 OUTLINE REEL (PCS) PER CARTON (PCS) REEL DIAMETERS (mm) L W H TAPING 3,000 90,000 177 360 370 220 4/4 www.bencent.com.cn CARTON SIZE(mm) Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications
