产品承认书
SPECIFICATION FOR APPROVAL
CUSTOMER:
CUSTOMER P/N:
JXD P/N. :

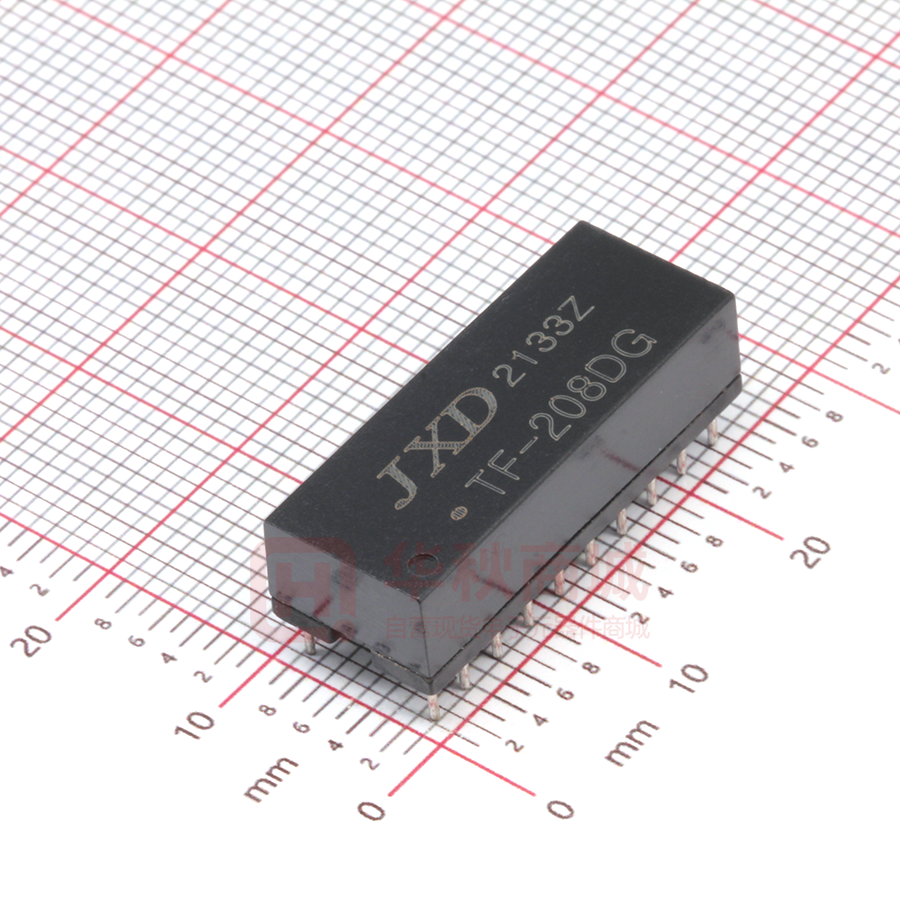

TF-208DG
DESCRIPTION:
10/100 BASE-T MAGNETICS MODULES
REF NO:
QTC-005
REV/NO:
A/0
DATE:
2014-9-15
ATTACHMENT:
■ SPECIFICATION
■ SAMPLE
Q’TY OF SAMPLES
√
PCS
CUSTOMER'S
SIGNATURE
REMARK
FULL APPROVED
CONDITIONAL
APPROVED
REJECTED
深圳磁联达电子有限公司
Shenzhen CND-TEK Industrial Co.,Ltd
公司地址: 深圳市南山区西丽镇阳光工业区5栋3楼
TEL: 86-755-29016433
FAX: 0755-27652977
Email: cd001@cd-tek.com
Http: //www.cd-tek.com
1. FEATURES:
1.1 Quad Port transformer Modules (10/100 Base-TX) for Auto MDI/MDIX applications.
1.2 Compatible with IEEE 802.3 and ANSI X3.236 standard.including baseline wander compensation
specification OF 350μH OCL when Biased at 8mA from 0℃ to 70℃.
1.3 Availiable in Through Hole package.
1.4 Operating Temperature range: 0℃ TO +70℃
1.5 Storage temperature range: -25℃ TO +125℃
2. DIMENSIONS & MARKING
7.62mm
25.50±0.30mm
xxxx
TF-208DG
JXD
? 0.85mm
10.00±0.30mm
2.54mm
22.86mm
Recommended Land Pattern
3.50±0.30mm
6.90±0.30mm
0.50mm
2.54mm
22.86mm
7.62mm
Note:1、Dimension:mm
2、Unless otherwise specified,all tolerances are:±0.05mm
DRAWN BY: CHECKED BY: APPROVED BY: CUSTOMER:
liyonghua
guojunhui
jiuguijiang
深圳磁联达电子有限公司
Shenzhen CD.com Industrial Co.,Ltd
PART NO. :TF-208DG
REV.: A/0
PAGE: 2 OF 4
3. SCHEMATICS:
1CT:1CT
1CT:1CT
1
6
20
TD1
15
RX2
TX1 RD2
2
3
4
7
8
9
19
18
17
1CT:1CT
1CT:1CT
14
13
12
TX2
RX1 TD2
RD1
5
16
10
11
4.ELECTRICAL SPECIFICATIONS @25℃
4.1 OCL : 350 μH Min. @ 100 KHz, 100mV with 8mA DC Bias
4.2 Leakage Inductance: 0.5 μH Max. @ 100KHz, 0.2V
4.3 Cw/w: 56 pF Max. @ 100KHz, 0.2V
4.4 DCR: 0.90Ω Max.
4.5 Turns Ratio(±5%): 1CT:1(TX), 1CT:1(RX)
4.6 Polarity: 1-20, 4-17, 6-15, 9-12 In-Phase
4.7 Insertion Loss: -1.1 dB Max. (TX & RX)@ 1-100 MHz
4.8 Return Loss: -18 dB Min @ 0.5-30MHz
-15 dB Min @ 40 MHz
-13 dB Min @ 60 MHz
-11 dB Min @ 80 MHz
-10 dB Min.@ 100 MHz
4.9 Cross Talk: -45 dB Min.@ 30 MHz
-40 dB Min.@ 60 MHz
-35 dB Min.@ 100 MHz
4.10 Common Mode Rejection : -43 dB Min.@ 1-30 MHz
-37 dB Min.@ 60 MHz
-33 dB Min.@ 80-100 MHz
4.11 Isolation HI-POT: 1500Vrms 1mA 1Second
DRAWN BY: CHECKED BY: APPROVED BY: CUSTOMER:
liyonghua
PART NO. :TF-208DG
guojunhui
jiuguijiang
REV.: A/0
深圳磁联达电子有限公司
Shenzhen CD.com Industrial Co.,Ltd
PAGE: 3 OF 4
5. Recommended Lead Free Wave Soldering Curve :
Item
Soldertechnique
simulation
1
Solder iron
2
Vapor phase reflow
3
4
5
Wave:TopsideBoar
d-mount product
Wave:BottomsideB
oard-mount
product
Vapor phase reflow
Temperature
(℃)
350±10
(solder irno temp)
215±5
(vapor temp)
260±5
(solder temp)
260±5
(solder temp)
215±5
(vapor temp)
Time(s)
Temperature ramp/immersion
and emersion rate
4~5
10±1
25mm/s±6mm/s
20±1
10±1
215±5
(vapor temp)
Preheat 1℃/s~4℃/s to within
100℃ of solder temp 25mm/s±
6mm/s
6. Reliability Test Criteria:
6.1 Terminal strength: Pull test withstand 9.8N 60+/-0.5S no looseness or movement.
6.2 Solderbility: Dipped in 245℃+/-5℃ molten solder for 3+/-0.5 seconds,95% min shall be smooth any and bright.
6.3 Resistance to soldering heat : Dip in 260℃+/- 5℃ molten solder for 5+/- 0.5 seconds. Shall not be any
abnormality.
6.4 Vibration: 1.5mm amplitude total excursion 10-55-10 Hz traversed in 1minute, x.y.z, axis for 2 hours. Shall not be any abnormality.
6.5 Random drop (Packing condition): Height 60cm, 3 times on the wood floorboard ,shall not be any
abnormality.
6.6 Dry heat: 100+/-2℃ 96 hours.
6.7 Cold: -20+/-2℃ 96 hours.
6.8 Damp Heat: 60+/-2℃, 93+/-3% RH 96 hours.
6.9 Change of temperature: exposed 5 cycle; each consisting of 30 minutes at -20+/-2℃,2-3minutes at 20+/2℃,30 minutes at 85+/-2℃, 2-3 minutes at 20+/-2℃.
DRAWN BY: CHECKED BY: APPROVED BY: CUSTOMER:
liyonghua
PART NO. :TF-208DG
guojunhui
jiuguijiang
REV.: A/0
深圳磁联达电子有限公司
Shenzhen CD.com Industrial Co.,Ltd
PAGE: 4 OF 4
