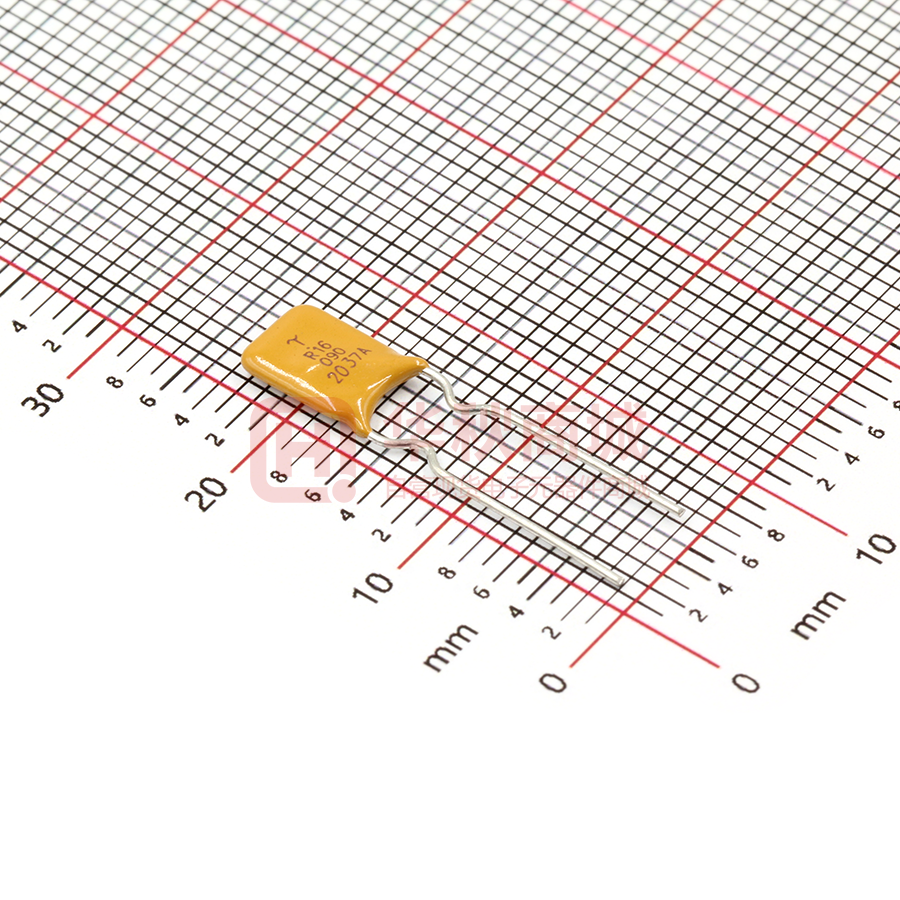

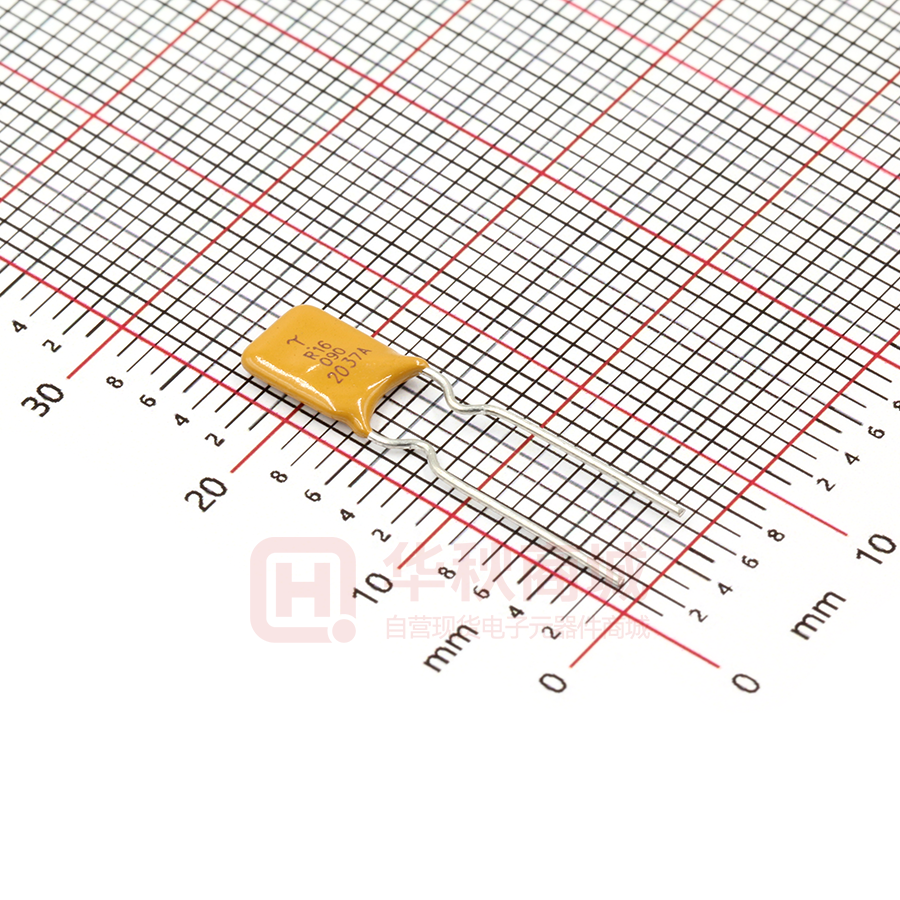

R16-090

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Fax.: 886-2-2225-7268 PRODUCT: DOCUMENT: ECN. NO.: REV LETTER: REV DATE: PAGE NO.: Resettable Fuse R16 Series QR0429 A 2014/12/30 1 of 1 Specification Sheet Insulating Material: Meets UL94 V-0 Requirements Lead-Free, RoHS Compliant Lead Material: R16-090~250 : Tin Plated Copper-Clad Steel, 24 AWG (0.51mm/0.020" Dia.) R16-300~1100 : Tin Plated Copper, 20 AWG (0.81mm/0.032" Dia.) R16-1200~1800 : Tin Plated Copper, 18 AWG (1.0mm/0.04" Dia.) Marking: A Sea&Land Logo R16 090 XXXXY E Radial Type 16V Hold Current Date Code & Factory Code B B TABLE I. DIMENSIONS: (Unit: mm/inch) Model Number A Max. B Max. C Typ. D Min. E Max. R16-090 R16-110 R16-135 R16-160 R16-185 R16-250 R16-300 R16-400 R16-500 R16-600 R16-700 R16-800 R16-900 R16-1000 R16-1100 R16-1200 R16-1400 R16-1800 7.40 7.40 8.90 8.90 10.20 10.40 8.80 9.50 9.80 11.60 13.00 14.50 14.50 17.50 17.50 17.50 20.50 25.70 12.20 14.20 13.50 15.20 15.70 14.30 11.80 12.50 14.60 14.60 17.20 20.00 20.00 24.50 24.50 24.50 28.00 32.30 5.10 5.10 5.10 5.10 5.10 5.10 5.10 5.10 5.10 5.10 5.10 5.10 5.10 10.20 10.20 10.20 10.20 10.20 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 7.60 3.0 3.0 3.0 3.0 3.0 3.0 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.1 3.5 3.5 3.5 Itrip Pd Max. D D C Note : Stand-offs only used for R16-090 ~ R16-250 TABLE II. PERFORMANCE RATINGS: Maximum Time Model Vmax Imax Current Time (Vdc) (A) (A) (A) (W) (A) (Sec) 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 40 40 40 40 40 100 100 100 100 100 100 100 100 100 100 100 100 100 0.90 1.10 1.35 1.60 1.85 2.50 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 14.00 18.00 1.80 2.20 2.70 3.20 3.70 5.00 5.10 6.80 8.50 10.20 11.90 13.60 15.30 17.00 18.70 20.40 23.80 30.40 0.60 0.70 0.80 0.90 1.00 1.20 2.30 2.40 2.60 2.80 3.00 3.00 3.30 3.60 3.70 4.20 4.60 5.10 8.00 8.00 8.00 8.00 8.00 12.50 15.00 20.00 25.00 30.00 35.00 40.00 45.00 50.00 55.00 60.00 70.00 54.00 Number R16-090 R16-110 R16-135 R16-160 R16-185 R16-250 R16-300 R16-400 R16-500 R16-600 R16-700 R16-800 R16-900 R16-1000 R16-1100 R16-1200 R16-1400 R16-1800 Ihold @23°C @23°C Recognition: UL Approval Resistance To Trip Ri min R1 max (W) (W) 1.2 0.070 0.180 2.3 0.050 0.140 4.5 0.040 0.120 9.0 0.030 0.110 10.0 0.030 0.090 5.0 0.020 0.060 1.0 0.034 0.105 1.7 0.020 0.063 2.0 0.014 0.044 3.3 0.009 0.030 3.5 0.006 0.021 5.0 0.005 0.018 5.5 0.004 0.015 6.0 0.003 0.012 7.0 0.003 0.010 7.5 0.0026 0.009 9.0 0.0026 0.008 30.0 0.0026 0.008 R16-500, 600, 700, 800, 900, 1000, 1100, 1200, 1400
