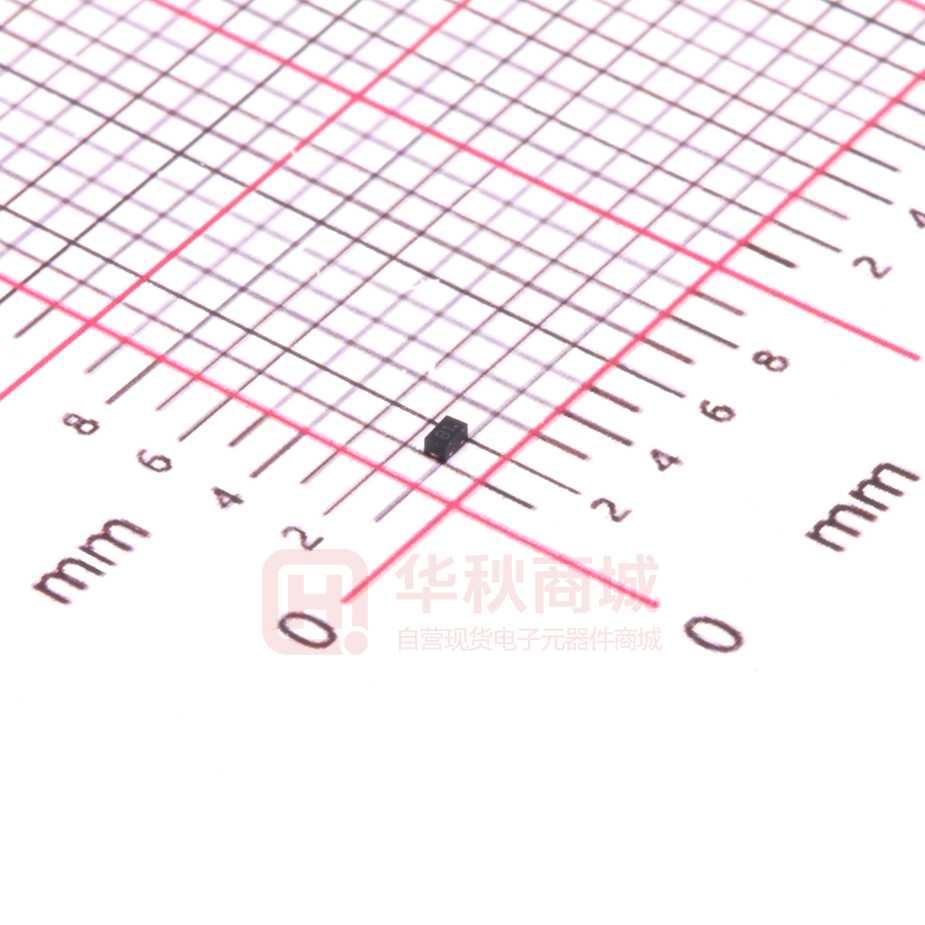

PESDSC2FD5VB

PESDSC2FD5VB Bi-directional 5V Low Capacitance ESD Protector Description The PESDSC2FD5VB protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, low operating voltage. It gives designer the flexibility to protect one bi-directional DFN1006-2L(Bottom View) line in applications where arrays are not practical. Feature  80W peak pulse power per line (tP = 8/20μs)  DFN1006-2L package  Replacement for MLV(0402)  Bidirectional configurations  Response time is typically < 1ns  Low clamping voltage  RoHS compliant  Transient protection for data lines to Pin 1 Pin 2 Circuit Diagram IEC61000-4-2(ESD) ±15KV(air), ±8KV(contact); IEC61000-4-4 (EFT) 40A (5/50ns) Applications  Cellular phones  Portable devices  Digital cameras  Power supplies B1 Marking (Top View) Mechanical Characteristics  Mounting position: Any  Qualified max reflow temperature:260℃  Device meets MSL 1 requirements  DFN1006-2L without plating Rev.06.6 1 www.prisemi.com ESD Protector PESDSC2FD5VB Electronics Parameter Symbol VRWM IR VBR Parameter Peak Reverse Working Voltage Reverse Leakage Current @ VRWM IPP I Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ IF VC VBR VRWM IT IR V IR IT VRWM VBR VC IPP Electrical characteristics per line@25℃ (unless otherwise specified) Parameter Peak Reverse Working Voltage Breakdown Voltage Symbol Conditions Min. Typ. Max. Units 5 V 9.0 V 1.0 μA VRWM VBR It = 1mA Reverse Leakage Current IR VRWM = 5V T=25℃ Maximum Reverse Peak Pulse Current IPP Clamping Voltage VCL IPP=16A tp=100ns Clamping Voltage VC IPP=1A 10 V Clamping Voltage VC IPP=3A 15 V Clamping Voltage VC IPP=4A 21 V Junction Capacitance Cj 0.45 pF VR=0V 5.6 f = 1MHz 5.5 A 31 V 0.3 Absolute maximum rating@25℃ Rating Symbol Value Units Peak Pulse Power (tp=8/20μs) Ppp 80 W Peak Pulse Current (tp=8/20μs) Ipp 4 A Operating Temperature TJ -55 to 150 ℃ TSTG -55 to 150 ℃ Storage Temperature Rev.06.6 2 www.prisemi.com ESD Protector PESDSC2FD5VB Typical Characteristics 80 80 % Of Rated Power 100 IPP – Peak Pulse Current - % of IPP tf=8μs 100 60 tP =20μs(IPP /2) 40 20 60 40 20 0 0 0 5 10 15 20 25 0 30 25 50 t - Time -μs 75 100 125 150 TL – Lead Temperature - ℃ Fig 1.Pulse Waveform Fig 2.Power Derating Curve 20 1000 100 IR(nA) Peak Pulse Power (W) 16 12 8 10 4 1 0 1 1000 100 10 0 25 50 100 125 150 Temperature (ºC) Pulse Duration(us) Fig 3.Non-Repetitive Peak Pulse Power vs. Pulse time Fig 4.Typical Leakage Current vs. Temperature 20 25 16 Pulse waveform: tp=8/20us 12 TLP Current(A) 20 VC-Clamping Voltage (V) 75 15 10 8 4 0 -4 -8 -12 5 -16 0 0 1 2 3 4 5 -20 -40 -32 6 IPP-Peak pulse current (A) -16 -8 0 8 16 24 32 40 TLP Voltage(v) Fig 5. Clamping voltage vs. Peak pulse current Rev.06.6 -24 Fig 6.Typical Leakage Current vs. Temperature 3 www.prisemi.com ESD Protector PESDSC2FD5VB Solder Reflow Recommendation Preliminary Heating 300 Soldering Cooling(in air) Temperature of Soldering 260℃ (20,-5℃) 250 245℃ (20,-5℃) 200 150 120℃ 100 100℃ 50 0 2 to 5 min more than 1 min Less than 10s Remark: Pb free for 260℃；Pb for 245℃. PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06.6 4 www.prisemi.com ESD Protector PESDSC2FD5VB Product dimension (DFN1006-2L) Inches A Millimeters Dim B C R D E MIN MAX MIN MAX A 0.013 0.020 0.34 0.498 B 0.000 0.002 0.00 0.05 C 0.037 0.043 0.95 1.080 D 0.022 0.027 0.55 0.680 E 0.016 0.024 0.40 0.60 F 0.008 0.012 0.20 0.30 H R F 0.015Typ. 0.001 0.005 0.40Typ. 0.05 0.15 H 1.20 0.50 0.60 0.70 Unit:mm Suggested PCB Layout Ordering information Device Package Reel Shipping PESDSC2FD5VB DFN1006-2L (Pb-Free) 7" 10000 / Tape & Reel Rev.06.6 5 www.prisemi.com ESD Protector PESDSC2FD5VB Load with information USER DIRECTION OF FEED Φ1.50 ± 0.10 2.00 ± 0.05 2.00 ± 0.05 1.75 ± 0.10 4.00 ± 0.10 3.50 ± 0.05 8.00 ± 0.10 Φ0.50 ± 0.05 Unit：mm Rev.06.6 6 www.prisemi.com
