PESDMC2FD5VB

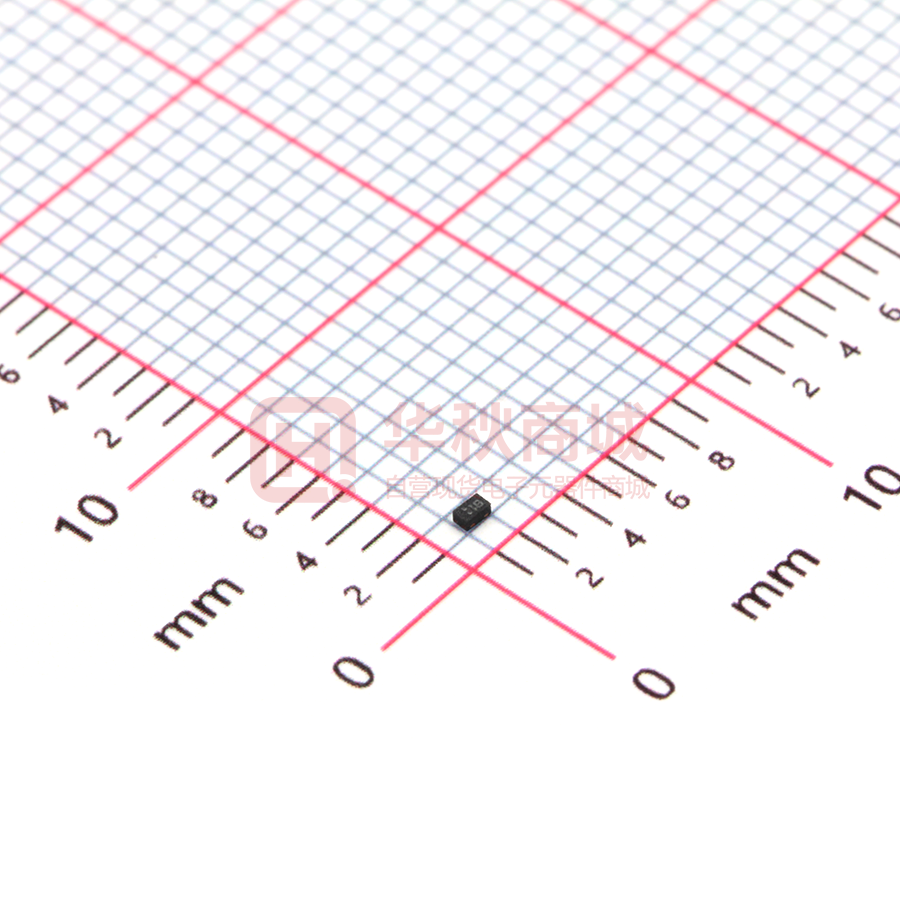

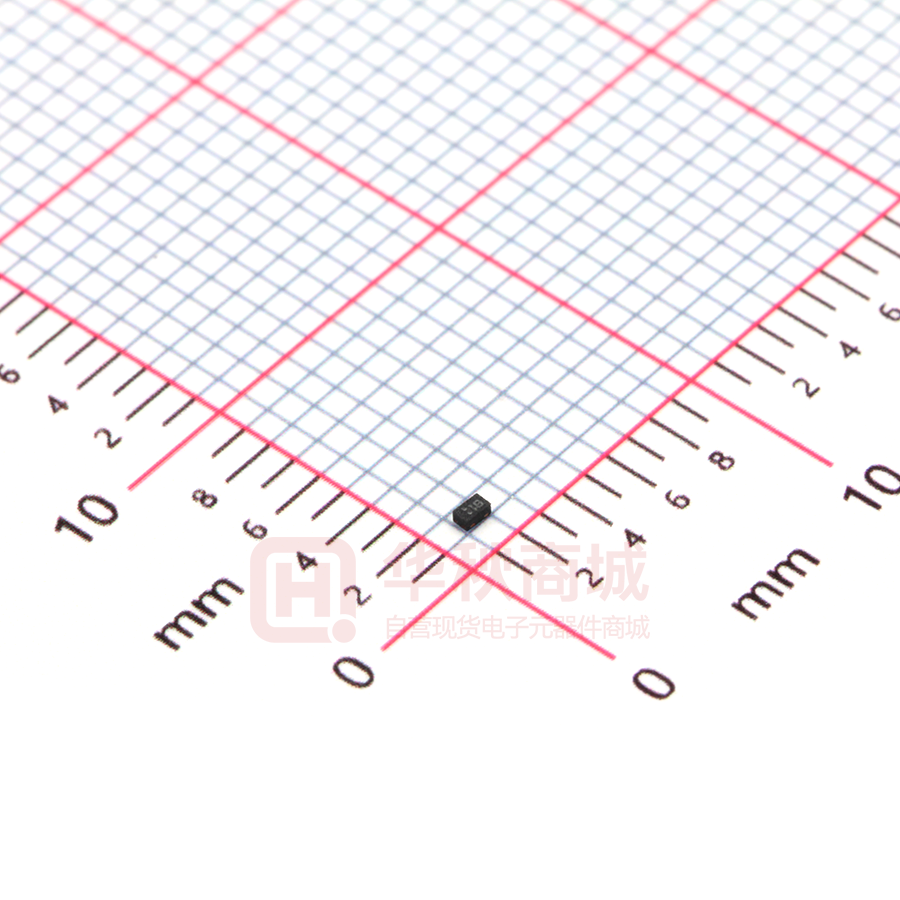

PESDMC2FD5VB Bi-directional 5V Low Capacitance ESD Protector Description The PESDMC2FD5VB protects sensitive semiconductor components from damage or upset due to electrostatic discharge (ESD) and other voltage induced transient events. They feature large cross-sectional area junctions for conducting high transient currents, offer desirable electrical characteristics for board level protection, such as fast response time, low operating voltage. It gives designer the flexibility to protect one bi-directional DFN1006-2L(Bottom View) line in applications where arrays are not practical. Feature  40W peak pulse power per line (tP = 8/20μs)  DFN1006-2L package  Replacement for MLV(0402)  Bidirectional configurations  Response time is typically < 1ns  Low clamping voltage  RoHS compliant  Transient protection for data lines to B1 Marking (Top View) IEC61000-4-2(ESD) ±15KV(air), ±15KV(contact); IEC61000-4-4 (EFT) 40A (5/50ns) Applications  Cellular phones  Portable devices  Digital cameras  Power supplies Pin 1 Pin 2 Circuit Diagram Mechanical Characteristics  Lead finish:100% matte Sn(Tin)  Mounting position: Any  Qualified max reflow temperature:260℃  Device meets MSL 1 requirements Rev.06.3 1 www.prisemi.com ESD Protector PESDMC2FD5VB Electronics Parameter Symbol VRWM IR VBR Parameter Peak Reverse Working Voltage I Reverse Leakage Current @ VRWM IPP Breakdown Voltage @ IT IT Test Current IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP PPP Peak Pulse Power CJ Junction Capacitance IF Forward Current VF Forward Voltage @ IF VC VHOLD VTRIG VRWM IT IR IR IT VRWM VC VTRIG VHOLD V IPP Electrical characteristics per line@25℃ (unless otherwise specified) Parameter Symbol Conditions Min. Typ. Max. Units 5.0 V Peak Reverse Working Voltage VRWM Reverse trigger voltage VTRIG ITRIG=40mA 9.2 V Reverse holding voltage VHOLD IHOLD=60mA 7.0 V Reverse Leakage Current IR VRWM = 5V T=25℃ Maximum Reverse Peak Pulse Current IPP Clamping Voltage VCL Clamping Voltage VC IPP=1A 8.8 9.2 V Clamping Voltage VC IPP=3A 9.2 9.5 V Clamping Voltage VC IPP=4A 10 11 V Junction Capacitance Cj 0.42 0.5 pF IPP=16A VR=0V tp=100ns f = 1MHz 1.0 μA 4.2 A 15.6 V Absolute maximum rating@25℃ Rating Symbol Value Units Peak Pulse Power (tp=8/20μs) Ppp 40 W Operating Temperature TJ -55 to 150 ℃ TSTG -55 to 150 ℃ Storage Temperature Rev.06.3 2 www.prisemi.com ESD Protector PESDMC2FD5VB Typical Characteristics tf=8μs IPP – Peak Pulse Current - % of IPP 100 100 60 % Of Rated Power 80 tP =20μs(IPP /2) 40 20 80 60 40 20 0 0 5 10 15 20 25 0 30 0 25 50 75 100 125 150 TL – Lead Temperature - ℃ t - Time -μs Fig 1.Pulse Waveform Fig 2.Power Derating Curve 20 1000 100 IR(nA) Peak Pulse Power (W) 16 12 8 10 4 1 1 0 1000 100 10 0 25 50 Pulse Duration(us) 100 125 150 Temperature (ºC) Fig 3.Non-Repetitive Peak Pulse Power vs. Pulse time Fig 4.Typical Leakage Current vs. Temperature 20 10.4 Pulse waveform: tp=8/20us 15 10 10 TLP Current(A) VC-Clamping Voltage (V) 75 9.6 5 0 -5 -10 9.2 -15 8.8 0 Rev.06.3 1 2 3 4 -20 5 -20 -10 0 10 IPP-Peak pulse current (A) TLP Voltage(V) Fig 5. Clamping voltage vs. Peak pulse current Fig 6. TLP Measurement 3 20 www.prisemi.com ESD Protector Clamping Voltage PESDMC2FD5VB ESD clamping Fig 7. (8kV contact discharge per IEC61000-4-2) Solder Reflow Recommendation Peak Temp=257℃, Ramp Rate=0.802deg. ℃/sec 280 240 200 160 120 80 40 0 0 30 60 90 120 150 180 240 210 270 300 330 360 390 420 450 480 Time (sec) PCB Design For TVS diodes a low-ohmic and low-inductive path to chassis earth is absolutely mandatory in order to achieve good ESD protection. Novices in the area of ESD protection should take following suggestions to heart:  Do not use stubs, but place the cathode of the TVS diode directly on the signal trace.  Do not make false economies and save copper for the ground connection.  Place via holes to ground as close as possible to the anode of the TVS diode.  Use as many via holes as possible for the ground connection.  Keep the length of via holes in mind! The longer the more inductance they will have. Rev.06.3 4 www.prisemi.com ESD Protector PESDMC2FD5VB Product dimension (DFN1006-2L) A Dim B C R D E Millimeters MIN MAX MIN MAX A 0.013 0.020 0.34 0.50 B 0.000 0.002 0.00 0.05 C 0.037 0.043 0.95 1.080 D 0.022 0.027 0.55 0.680 E 0.016 0.024 0.40 0.60 F 0.008 0.012 0.20 0.30 H R F Inches 0.015Typ. 0.001 0.005 0.40Typ. 0.05 0.15 H 1.10 0.60 0.40 Suggested Unit:mm PCB Layout Ordering information Device Package Reel Shipping PESDMC2FD5VB DFN1006-2L (Pb-Free) 7" 10000 / Tape & Reel Rev.06.3 5 www.prisemi.com ESD Protector PESDMC2FD5VB Load with information USER DIRECTION OF FEED Φ1.50 ± 0.10 2.00 ± 0.05 2.00 ± 0.05 1.75 ± 0.10 4.00 ± 0.10 3.50 ± 0.05 8.00 ± 0.10 Φ0.50 ± 0.05 Unit：mm Rev.06.3 6 www.prisemi.com ESD Protector PESDMC2FD5VB IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06.3 7 www.prisemi.com
