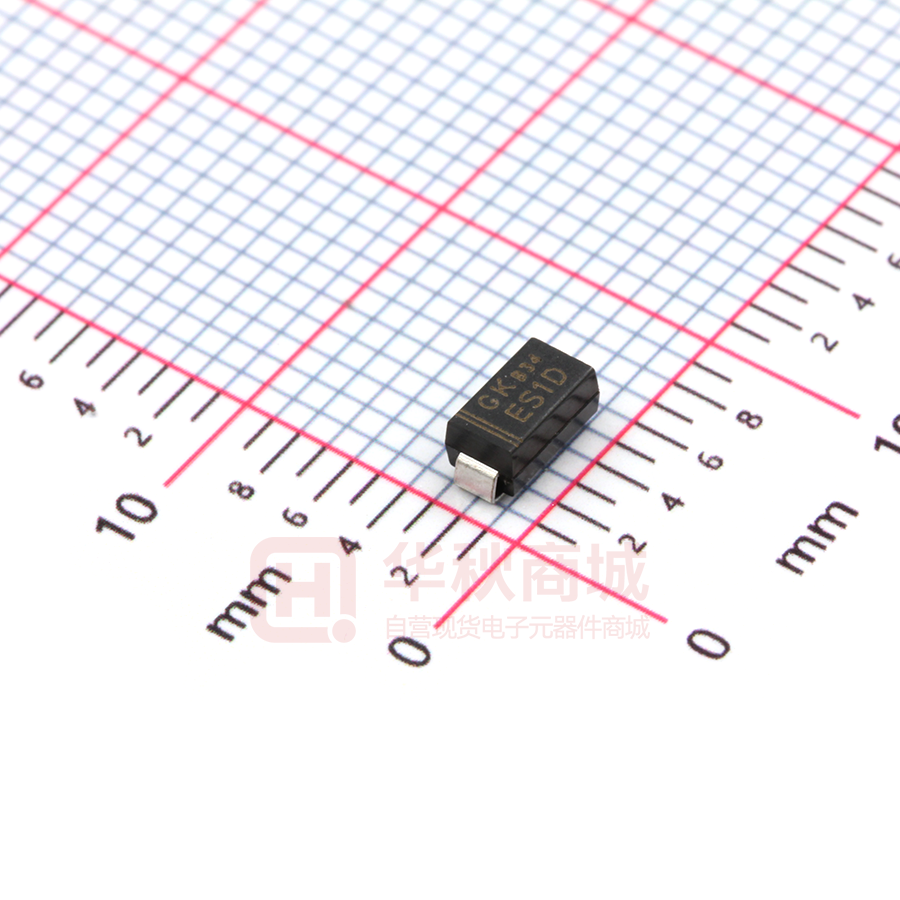

ES1D

ES1A ES1J THRU 1.0 AMP SURFACE MOUNT SUPER FAST RECTIFIERS VOLTAGE RANGE 50 to 400 Volts CURRENT 1.0 Ampere FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Super fast recovery time for high speed switching DO-214AC(SMA) .110(2.79) .100(2.54) .058(1.47) .052(1.32) MECHANICAL DATA .173(4.40) .153(3.90) * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.063 gram .012(0.31) .006(0.15) .095(2.40) .079(2.00) .005 MAX. (.127) .205(5.20) .189(4.80) .060(1.52) .030(0.76) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current ES1A 50 35 50 ES1B ES1C 100 70 100 150 105 150 at TL=110 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 1.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Ta=100 C Maximum Reverse Recovery Time (Note 1) Typical Junction Capacitance (Note 2) Operating and Storage Temperature Range TJ, TSTG ES1D 200 140 200 ES1E ES1G ES1J UNITS 300 210 300 400 280 400 600 420 600 A 1.0 30 1.25 0.95 V V V 1.7 A V 5.0 500 35 nS 10 -65 +150 pF C NOTES: 1. Reverse Recovery Time test condition: IF=0.5A, IR=1.0A, IRR=0.25A 2. Measured at 1MHz and applied reverse voltage of 4.0V D.C. REV 1.0 2015 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (ES1A THRU ES1J) FIG.1-TYPICAL FORWARD FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS Tj=25 C 10 Pulse Width 300us 1% Duty Cycle MU 1 1.2 1.0 0.8 Single Phase 0.6 Half Wave 60Hz Resistive Or Inductive Load 0.4 0.2 0 5A ~S 0 20 40 60 SM U1 1.0 6A 4A 3.0 SM U1 1A ~S MU 1 80 100 120 140 160 180 200 LEAD TEMPERATURE ( C) 0.1 .01 0 .2 .4 .6 .8 1.0 1.2 1.4 FORWARD VOLTAGE,(V) FIG.3- TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTICS 50W NONINDUCTIVE 10W NONINDUCTIVE ( ) (+) D.U.T. 25Vdc (approx.) PULSE GENERATOR (NOTE 2) ( ) PEAK FORWAARD SURGE CURRENT,(A) FIG.4-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 50 40 30 Sine Wave 20 JEDEC method 10 0 1 5 2. Rise Time= 10ns max., Source Impedance= 50 ohms. | | | | | | | | 0 -0.25A 100 FIG.5-TYPICAL JUNCTION CAPACITANCE NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF. +0.5A 50 10 NUMBER OF CYCLES AT 60Hz OSCILLISCOPE (NOTE 1) trr 8.3ms Single Half Tj=25 C (+) 1W NONINDUCTIVE 35 JUNCTION CAPACITANCE,(pF) INSTANTANEOUS FORWARD CURRENT,(A) 50 30 25 20 15 10 5 0 -1.0A 1cm SET TIME BASE FOR .01 .05 .1 .5 1 5 10 50 100 REVERSE VOLTAGE,(V) 50 / 10ns / cm REV 1.0 2015 JAN PAGE:2/2
