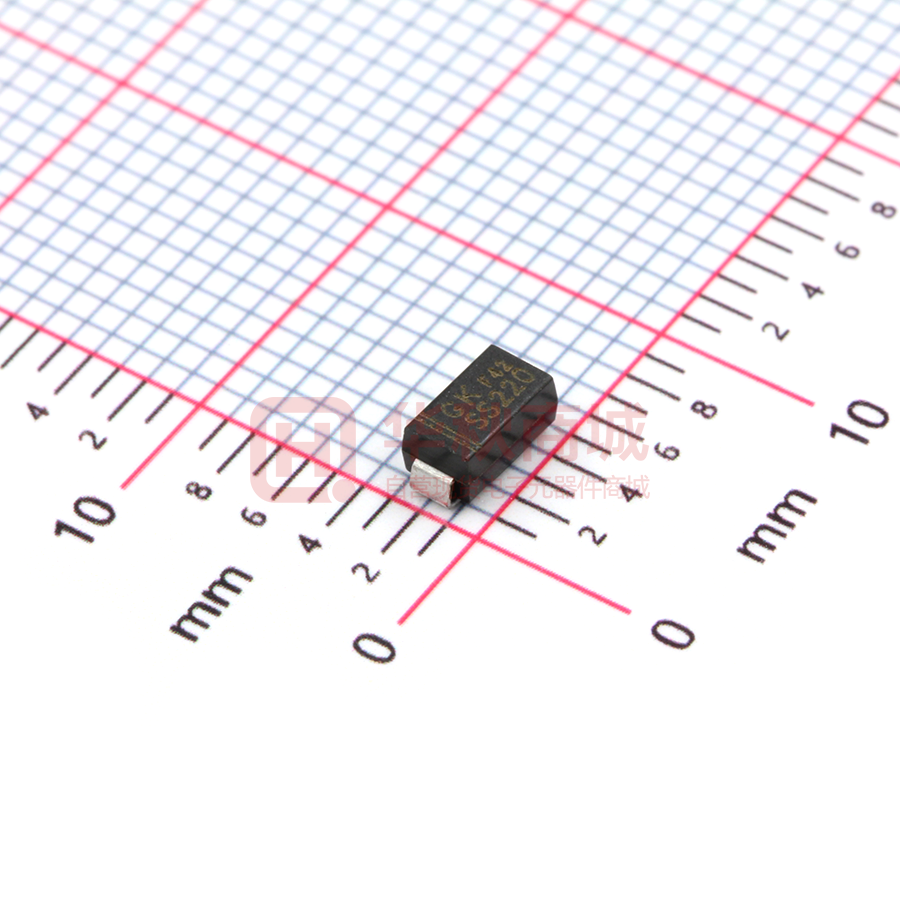

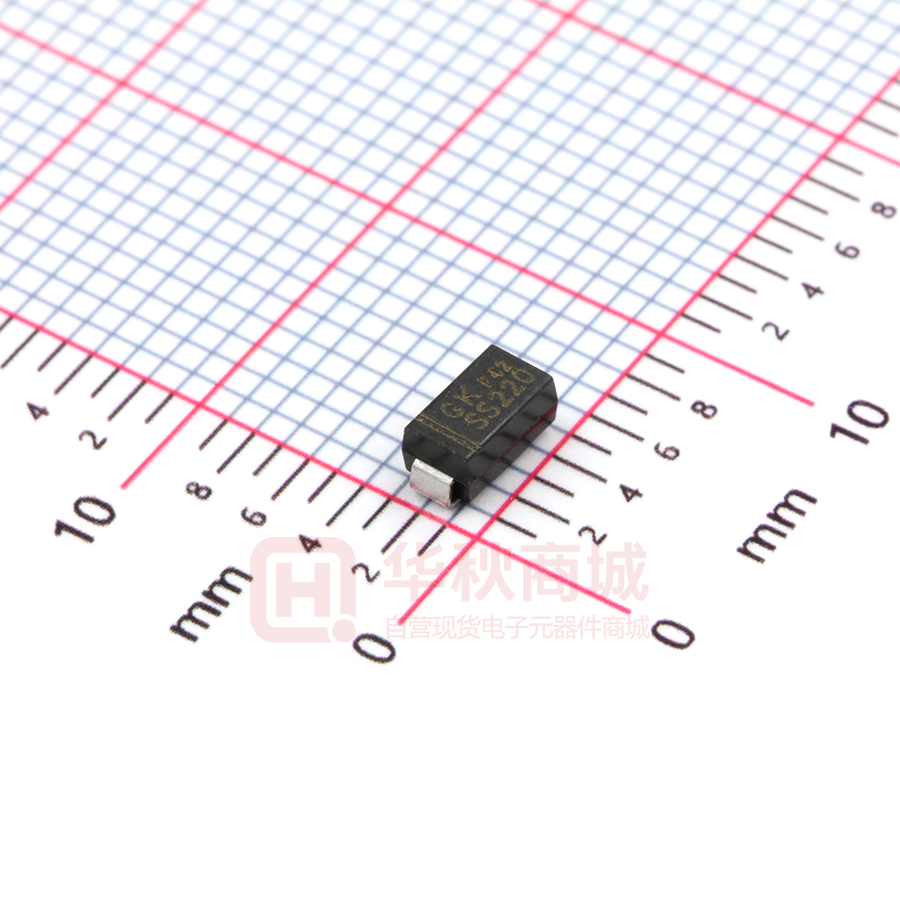

SS220

SS215 THRU SS220 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 150 to 200 Volts CURRENT 2.0 Ampere FEATURES DO-214AC(SMA) * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Low forward voltage drop .110(2.79) .100(2.54) .058(1.47) .052(1.32) .177(4.50) .157(3.99) MECHANICAL DATA .012(0.31) .006(0.15) * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.063 grams .090(2.29) .078(1.98) .005 MAX. (.127) .208(5.28) .194(4.93) .060(1.52) .030(0.76) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER SS215 SS220 Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current 150 105 150 200 140 200 at TL=100 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 2.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Typical Junction Capacitance (Note1) Typical Thermal Resistance R JL (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG A 50 A V mA 10 170 -65 -65 V V V 2.0 0.92 0.05 Ta=100 C UNITS 12 +150 +150 mA PF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Lead Vertical PC Board Mounting 0.375"(9.5mm) Lead Length. REV 1.0 2017 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (SS215 THRU SS220) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-TYPICAL FORWARD 50 2.0 1.6 1.2 0.8 0.4 0 0 20 40 60 80 100 120 140 160 180 200 LEAD TEMPERATURE,( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT INSTANTANEOUS FORWARD CURRENT,(A) AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 2.4 10 3.0 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 50 .01 40 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 30 8.3ms Single Half Tj=25 C Sine Wave 20 JEDEC method 10 FIG.5 - TYPICAL REVERSE 0 CHARACTERISTICS 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 700 600 500 400 300 200 10 Tj=100 C 1.0 .1 Tj=25 C 100 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENTAGE RATED PEAK REVERSE VOLTAGE REV 1.0 2017 JAN PAGE:2/2
