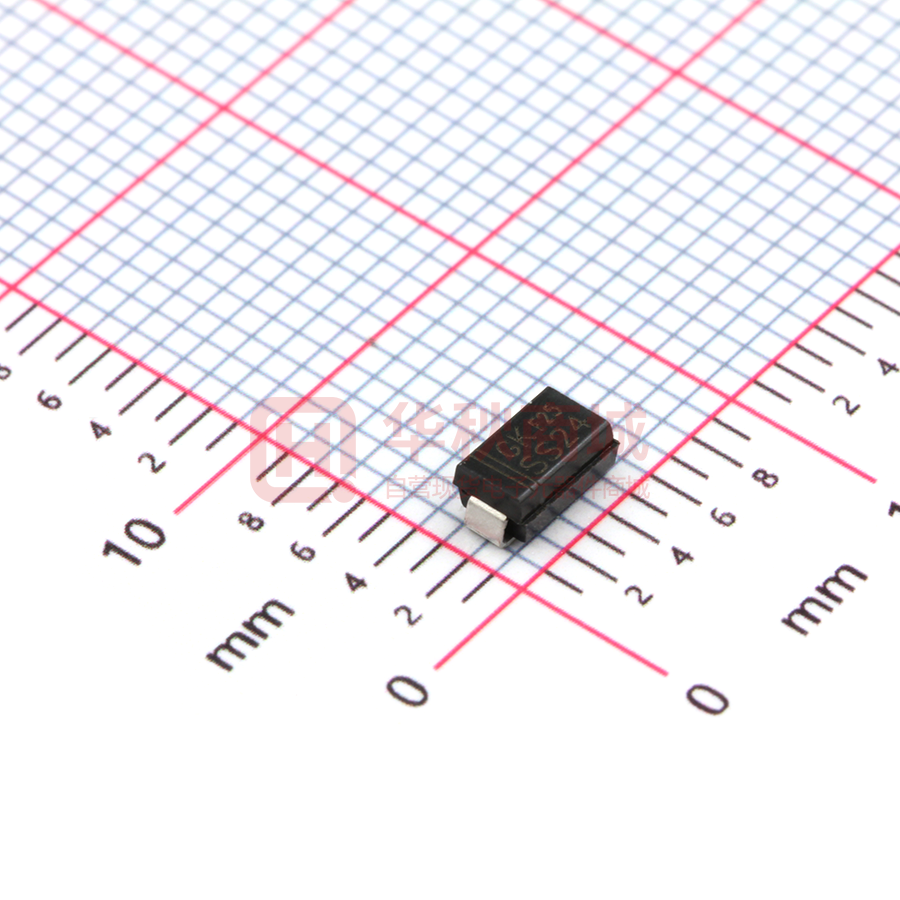

SS24

SS22 SS210 THRU 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 20 to 100 Volts CURRENT 2.0 Ampere FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Low forward voltage drop DO-214AC(SMA) .110(2.79) .100(2.54) .058(1.47) .052(1.32) MECHANICAL DATA .177(4.50) .157(3.99) * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.063 grams .012(0.31) .006(0.15) .090(2.29) .078(1.98) .005 MAX. (.127) .208(5.28) .194(4.93) .060(1.52) .030(0.76) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER SS22 Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current 20 14 20 SS23 SS24 SS25 SS26 SS28 SS29 30 21 30 40 28 40 50 35 50 60 42 60 80 56 80 90 63 90 See Fig. 1 Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 2.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Typical Junction Capacitance (Note1) Typical Thermal Resistance RqJA (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG SS210 UNITS 100 70 100 V V V A 2.0 50 0.70 0.2 0.55 0.85 20 170 Ta=100 C 75 -65 +125 -65 -65 +150 +150 A V mA mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Ambient. REV 1.0 2017 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (SS22 THRU SS210) FIG.2-TYPICAL FORWARD FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE 10 6 20 40 60 80 100 120 140 160 180 200 AMBIENT TEMPERATURE ( C) PEAK FORWAARD SURGE CURRENT,(A) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT S 26 S ~ ~S S 22 S S2 S2 0 3.0 25 S S 0.4 S 8~ 2 ~ 0.8 10 SS 2 SS 1.2 INSTANTANEOUS FORWARD CURRENT,(A) 1.6 24 50 2.0 2 SS AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 2.4 S SS 1.0 28 21 0 ~S Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 50 .01 40 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 30 8.3ms Single Half Tj=25 C Sine Wave 20 JEDEC method 10 FIG.5 - TYPICAL REVERSE 0 CHARACTERISTICS 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 350 300 250 200 150 100 10 1.0 Tj=75 C .1 Tj=25 C 50 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENTAGE RATED PEAK REVERSE VOLTAGE REV 1.0 2017 JAN PAGE:2/2
