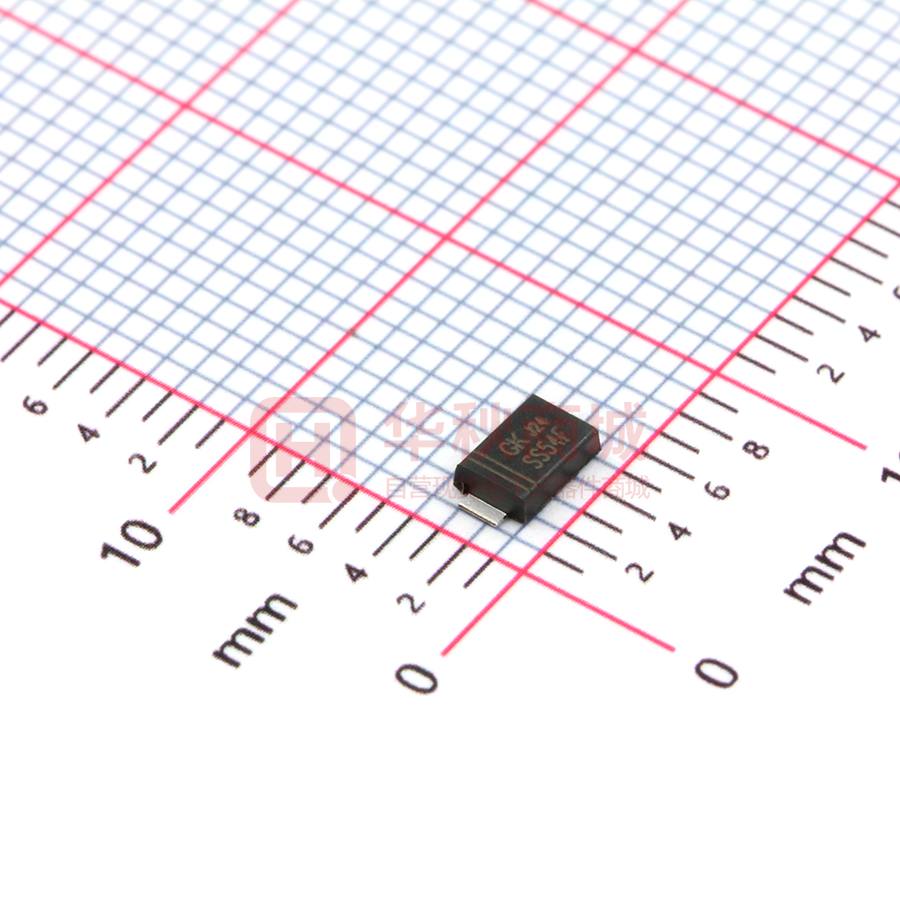

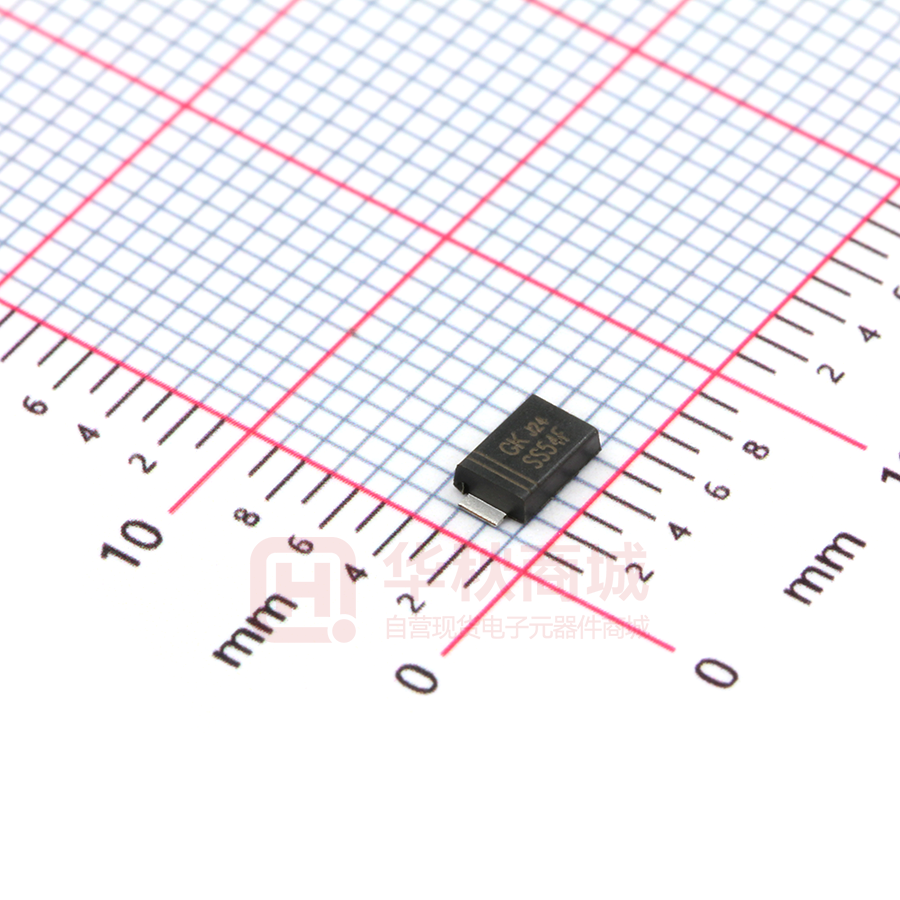

SS54F

SS52F SS510F THRU 5.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 20 to 100 Volts CURRENT 5.0 Ampere FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Low forward voltage drop SMAF .146(3.7) .130(3.3) .063(1.6) .051(1.3) MECHANICAL DATA .193(4.9) .173(4.4) * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any .008(0.20) .005(0.12) .047(1.20) .035(0.90) .106(2.7) .094(2.4) .047(1.2) .031(0.8) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current SS52F SS53F SS54F SS55F SS56F SS58F 20 14 20 30 21 30 40 28 40 50 35 50 60 42 60 At TL=100 C Peak Forward Surge Current, 8.3 ms single half sine-wave 90 63 90 120 0.55 0.85 0.70 0.2 20 380 Ta=100 C 10 -65 +125 -65 -65 +150 SS510F UNITS 100 70 100 V V V A 5.0 superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 5.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Typical Junction Capacitance (Note1) Typical Thermal Resistance RqJL (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG SS59F 80 56 80 +150 A V mA mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Lead. REV 1.0 2017 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (SS52F THRU SS510F) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-TYPICAL FORWARD 0 0 20 40 60 80 100 120 140 160 180 200 AMBIENT TEMPERATURE,( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 8F ~S S 51 0F 6F 54 2F ~S S 5F ~S S5 3.0 SS 5 1.0 SS 5 F 10 S5 ~S 4F S5 ~S 2.0 10 SS 5 F 55 SS 3.0 INSTANTANEOUS FORWARD CURRENT,(A) 4.0 F 50 5.0 F 52 SS AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 6.0 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 150 .01 120 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 90 8.3ms Single Half Tj=25 C Sine Wave 60 JEDEC method 30 FIG.5 - TYPICAL REVERSE CHARACTERISTICS 0 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 1400 1200 1000 800 600 400 10 Tj=75 C 1.0 .1 Tj=25 C 200 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) REV 1.0 2017 JAN PAGE:2/2
