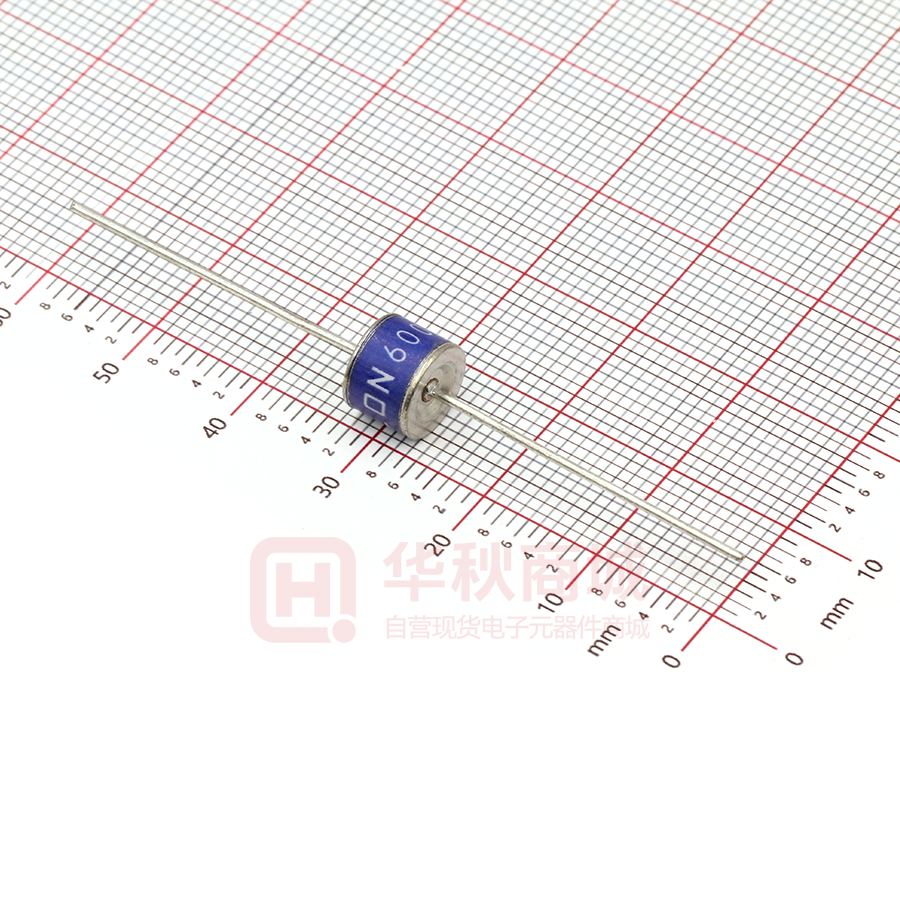

2R600TB-8

ELECTRONICS Gas Discharge Tubes 2RB-8 Series Circuit Protection System Specifications are subject to change without notice. Please refer to http://www.ruilon.com for current information. Gas Discharge Tubes - 2RB-8 Series GDT introduction:Gas discharge tubes (GDT) use noble gasses enclosed in ceramic tubes to provide an alternate circuit path for voltage spikes.The ceramic envelope and with nickel connectors allow for high loads and Ruilon offers products that function at 20KA,40KA,50KA,60KA,100KA&150KA. The breakdown voltages of the devices have a wide range (up to 20% tolerance).Major applications are high frequency telecommunication lines,stations, security systems,HID and high quality Surge Protection Devices (SPD). Features 1. RoHS & HF compliant 2. Rugged ceramic-metal construction 3. Available with or without leads 4. DC spark-over voltage:70~800V 5. Low capacitance 6. Agency recognition :UL/cUL 7. Operating temperature : -30°C ~ +85°C Storage temperature: -40°C ~ +115°C Recommended Applications 1. Cable Modem 2. xDSL 3. Set-Top Box 4. TV sets 5. Power supplier 6. Consumer electronics Part Number Code 2 R Series 3 5 DC Line Voltage 0 T Lead Type T=Thrust S=SMD Circuit Protection System B - Electrical Characteristics 8 Dimensions B=10000A D=20000A Specifications are subject to change without notice. Please refer to http://www.ruilon.com for current information. Page:1 Gas Discharge Tubes - 2RB-8 Series Electriacl Characteristics Max. Impulse Impulse Discharge Life Current (10/1000μs) (8/20μs) 100V/ 1KV/ 1 10 100 A μS μs times times Maximum DC Impulse Spark-over Breakdown Voltage Voltage Part No. 100V/S (KA) Normal Alternating Discharge Current 50Hz 1Sec DIP SMD (V) (V) (V) 2R070TB-8 2R070SB-8 70±20% 500 600 15 10 300 10 2R075TB-8 2R075SB-8 75±20% 500 600 15 10 300 2R090TB-8 2R090SB-8 90±20% 500 600 15 10 2R120TB-8 2R120SB-8 120±20% 500 700 15 2R130TB-8 2R130SB-8 130±20% 500 700 2R150TB-8 2R150SB-8 150±20% 500 2R230TB-8 2R230SB-8 230 ±20% 2R250TB-8 Single 1.5typ. 100typ. . 68. typ. Warehouse Storage Conditions of Products · Storage Conditions: 1. Storage Temperature: -10°C~+40°C 2. Relative Humidity:≤75%RH 3. Keep away from corrosive atmosphere and sunlight. · Period of Storage: 1 year Circuit Protection System Specifications are subject to change without notice. Please refer to http://www.ruilon.com for current information. Page:4 RuiLongYuan Electronics Co., Ltd. · Reproducing and modifying information of the document is prohibited without permission from Ruilongyuan International Inc. · Ruilongyuan International Inc. reserves the rights to make changes of the content herein the document anytime without notification. Please refer to our website for the latest document. · Ruilongyuan International Inc. disclaims any and all liability arising out of the application or use of any product including damages incidentally and consequentially occurred. · Ruilongyuan International Inc. does not assume any and all implied warranties, including warranties of fitness for particular purpose, non-infringement and merchantability. · Applications shown on the herein document are examples of standard use and operation. Customers are responsible in comprehending the suitable use in particular applications.Ruilongyuan International Inc. makes no representation or warranty that such applications will be suitable for the specifed use without further testing or modifcation. · The products shown herein are not designed and authorized for equipments requiring high level of reliability or relating to human life and for any applications concerning life-saving or life-sustaining, such as medical instruments, transportation equipment,aerospace machinery et cetera. Customers using or selling these products for use in such applications do so at their own risk and agree to fullyindemnify Ruilongyuan International Inc. for any damages resulting from such improper use or sale. Tel: +86-755-8290 8296 Circuit Protection System Fax: +86-755-8290 8002 E-mail: jack@ruilon.com Specifications are subject to change without notice. Please refer to http://www.ruilon.com for current information. Page:5
