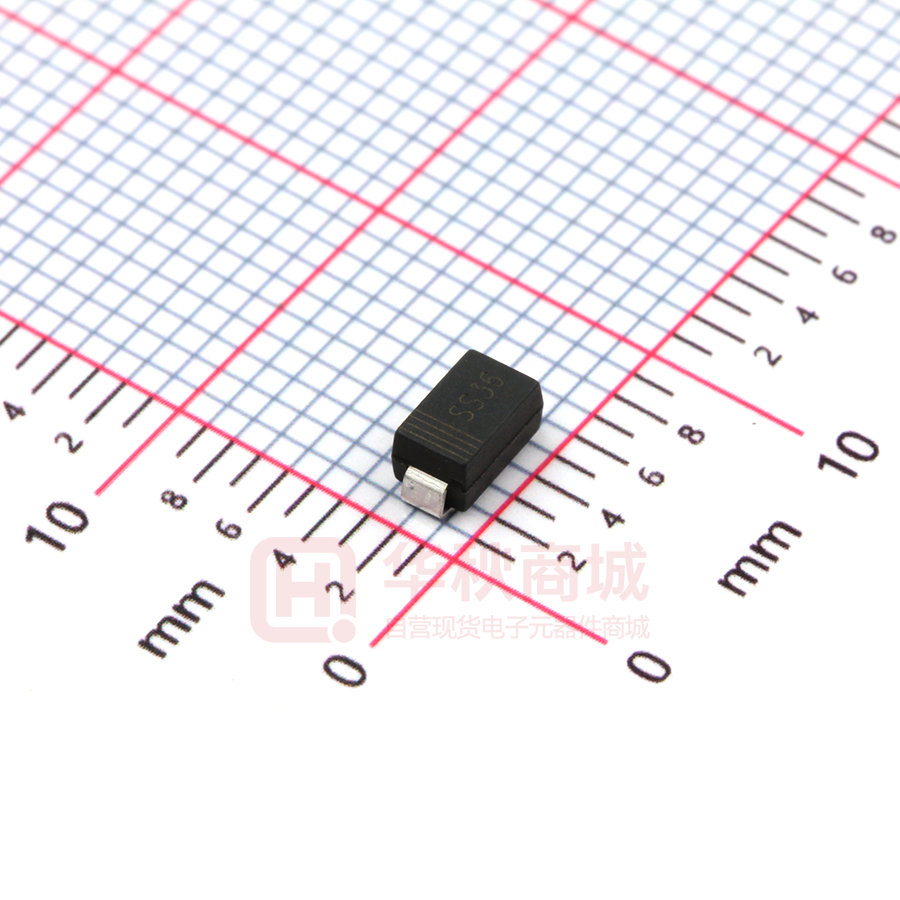

SS36A

SS32-SS320 SCHOTTKY BARRIER DIODE FEATURES  Small Surface Mount device  Low power loss, high efficiency  High forward surge current capability  For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications SMA(DO-214AC) MECHANICAL DATA     Case: SMA(DO-214AC) Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Weight: 0.065 grams (approximate) MAXIMUM RATINGS AND CHARACTERISTICS(TA = 25°C unless otherwise noted) Parameter Symbol SS32 SS34 SS34A SS36 SS38 SS310 SS312 SS315 SS320 Unit Repetitive peak reverse VRRM 20 40 45 60 80 100 120 150 200 V voltage VRMS RMS Reverse Voltage 14 28 31.5 42 56 70 84 105 140 V VR DC Reverse Voltage Non-Repetitive Peak Forward Surge Current @ t = 8.3 ms Mean rectifying current IFSM 80 A IF 3.0 A Thermal Resistance Junction To Ambient(2) RθJA 70 °C/W From 20 40 45 60 80 100 120 150 200 V Junction Temperature TJ -55 ~+125 °C Storage Temperature TSTG -55 ~+150 °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Symbol SS32 SS34 SS34A SS36 SS38 SS310 SS312 SS315 SS320 0.95 0.85 Unit Conditions V Forward voltage VF Reverse current T=25°C IR 0.5 0.3 mA Reverse current T=100°C IR 5 3 mA Junction capacitance(1) CJ 450 400 0.55 0.70 NOTE: （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com IF=3A V=VR pF VR=4V,f=1MHZ 1/4 SS32-SS320 SCHOTTKY BARRIER DIODE Typical Characteristics Fig.2 Typical Reverse Characteristics Fig.1 Forward Current Derating Curve 10 4 Instaneous Reverse Current ( μA) Average Forward Current (A) 3.5 3.0 2.4 1.8 1.2 0.6 Single phase half-wave 60 Hz resistive or inductive load 50 75 T J =75°C 10 2 SS32-SS36 SS38-SS320 10 1 T J =25°C 10 0 0.0 25 T J =100°C 10 3 100 125 150 0 Case Temperature (°C) 80 100 T J =25°C 20 1000 10 Junction Capacitance ( pF) Instaneous Forward Current (A) 60 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 1.0 SS32/SS34 SS34A/SS38 SS310/SS312 SS315/SS320 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 500 200 100 20 SS32~SS38 SS32F~SS36F SS310~SS320 SS38F~SS320F 10 0.1 Fig.5- Typical Transient Thermal Impedance Transient Thermal Impedance（ °C /W） 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 10 Number of Cycles at 60Hz ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD 100 10 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 1 1 0.1 1.8 Instaneous Forward Voltage (V) Peak Forward Surage Current (A) 40 20 Percent of Rated Peak Reverse Voltage（%） 100 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） E-mail:hkt@heketai.com 2/4 SS32-SS320 SCHOTTKY BARRIER DIODE SMA Package Outline Dimensions Symbol Dimensions In Millimeters Min. Max. A 2.20 B Dimensions In Inches Max. 2.80 Min. 0.086 1.30 1.70 0.051 0.067 C 4.70 5.30 0.185 0.209 D 1.70 2.55 0.067 0.100 E 0.90 1.50 0.035 0.059 F 0.90 1.50 0.035 0.059 0.110 SMA Suggested Pad Layout Note: 1.Controlling dimension: in millimeters 2.General tolerance: ±0.05mm 3.The pad layout is for reference purposes only ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 3/4 SS32-SS320 SCHOTTKY BARRIER DIODE SMA Tape and Reel SMA Embossed Carrier Tape DIMENSIONS ARE IN MILLIMETER TYPE A B C d E F P0 P P1 W SMA 2.89 5.35 2.68 Ø1.50 1.75 5.50 4.00 4.00 2.00 12.00 TOLERANCE ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 SMA Tape Leader and Trailer SMA Reel DIMENSIONS ARE IN MILLIMETER REEL OPTION 7’’ DIA TOLERANCE D D1 D2 G H I W1 W2 Ø178 54.40 13.00 R78 R25.60 R6.50 12.40 17.60 ±2 ±1 ±1 ±1 ±1 ±1 ±1 ±1 ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD E-mail:hkt@heketai.com 4/4
