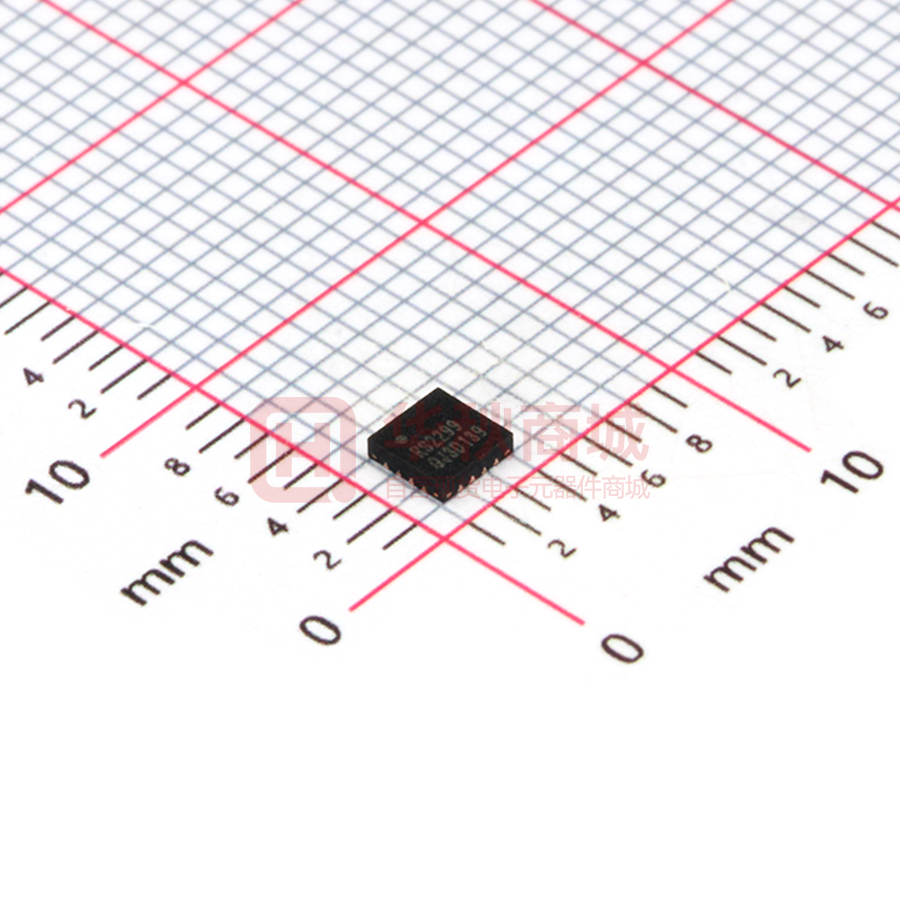

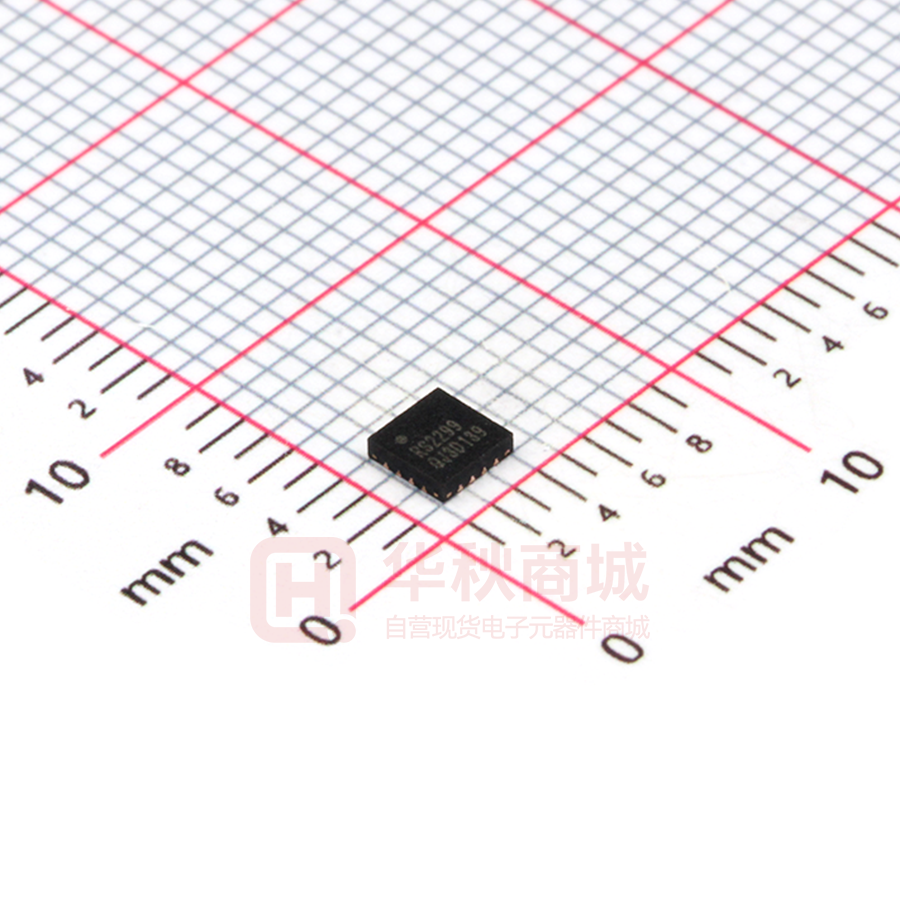

RS2299XTQC16

此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 4.5Ω Quad SPDT Analog Switch 4-Channel 2:1 Multiplexer – Demultiplexer With Two Controls FEATURES DESCRIPTION • High Bandwidth: 300MHz • High Speed, Typically 30ns • Supply Range: +1.8V to +5.5V • Low ON-State Resistance, 4.5Ω(TYP) • Break-Before-Make Switching • Rail-to-Rail Operation • TTL/CMOS Compatible • Extended Industrial Temperature Range: -40°C to +125°C The RS2299 is a bidirectional 4-channel single-pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.8V to 5.5V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. The RS2299 device can handle both analog and digital signals. It features hign-bandwidth(300MHz) and low on-resistance (4.5Ω TYP). Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems. APPLICATIONS • Video Switching • Relay Replacements • USB Switching • Battery-Operated Equipment • Cell Phones PIN CONFIGURATIONS RS2299 COM1 NO1 16 FUNCTION TABLE IN1-2 0 1 NO1 and NO2 OFF ON NC1 and NC2 ON OFF IN3-4 0 1 NO3 and NO4 OFF ON NC3 and NC4 ON OFF 15 V+ NC4 14 13 NC1 1 12 COM4 IN1-2 2 11 NO4 NO2 3 10 IN3-4 COM2 4 9 NC3 5 6 7 8 NC2 GND NO3 COM3 (TOP VIEW) QFN-3x3-16L PIN DESCRIPTION NAME V+ GND IN1-2 IN3-4 COMx NOx NCx REV C.1 PIN 14 6 2 10 16,4,8,12 15,3,7,11 1,5,9,13 FUNCTION Power Supply Ground Digital Control Pin Digital Control Pin Common Terminal Normally-Open Terminal Normally-Closed Terminal 1 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 ABSOLUTE MAXIMUM RATINGS (1) V+, IN to GND..................................................-0.3V to 6.0V Analog, Digital Voltage Range (2) …......– 0.3 to (V+) + 0.3V Continuous Current NO, NC, or COM……............. ±300mA Peak Current NO, NC, or COM……........…........... ±500mA Storage Temperature ……….…………… −65°C to +150°C Operating Temperature ……….........…… −40°C to +125°C Junction Temperature................................................150°C Package Thermal Resistance @ TA = +25°C SOT23-5, SOT23-6………………….………………200°C/W MSOP-10, SOIC-8 ,TSSOP-8……….………….... 150°C/W QFN-3x3-16L…..……….……………….…..………100°C/W Lead Temperature (Soldering, 10s) ……………........260°C ESD Susceptibility HBM …......................................................................1000V MM ……………………….........………………...……….100V ESD SENSITIVITY CAUTION ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications. (1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied. (2) Input terminals are diode-clamped to the power-supply rails. Input signals that can swing more than 0.3V beyond the supply rails should be current-limited to 10mA or less. PACKAGE/ORDERING INFORMATION PRODUCT ORDERING NUMBER RS2299 RS2299XTQC16 TEMPERATURE RANGE -40℃~125℃ PACKAGE LEAD PACKAGE MARKING QFN3x3-16L RS2299 PACKAGE OPTION Tape and Reel,3000 BLOCK DIAGRAM SPDT NC1 COM1 NO1 NC2 COM2 NO2 IN1-2 SPDT NC3 COM3 NO3 NC4 COM4 NO4 IN3-4 2 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 ELECTRICAL CHARACTERISTICS V+ = 5.0 V, TA= –40°C to 125°C (unless otherwise noted)) PARAMETER SYMBOL CONDITIONS V+ TA MIN FULL 0 TYP MAX UNITS ANALOG SWITCH Analog Signal Range On-Resistance On-Resistance Match Between Channels On-Resistance Flatness VNO, VNC, VCOM RON ΔRON RFLAT(ON) VNO or VNC = V+/2, ICOM = -10mA, Switch ON, See Figure 1 VNO or VNC = V+/2, ICOM = -10mA, Switch ON, See Figure 1 0 ≤ (VNO or VNC) ≤V+/2, ICOM = -10mA, Switch ON, See Figure 1 NC,NO OFF Leakage Current INC(OFF), INO(OFF) VNO or VNC = 0.3V, V+/2 VCOM = V+/2, 0.3V See Figure 2 NC,NO,COM ON Leakage Current INC(ON), INO(ON), VNO or VNC = 0.3V, Open VCOM = ICOM(ON) Open, 0.3V See Figure 2 V+ V 8 Ω 8.5 Ω 10 Ω 10.5 Ω 0.3 Ω 0.4 Ω 0.3 Ω 0.4 Ω 3 Ω 3.3 Ω 4 Ω FULL 4.3 Ω 1.8 to 5.5V FULL 1 μA 1.8 to 5.5V FULL 1 μA 5V FULL 1.5 V 3.3V FULL 1.3 V 5V FULL 0.6 V 3.3V FULL 0.5 V 1.8 to 5.5V FULL 1 μA 5V 3.3V 5V 3.3V 5V 3.3V 4.5 +25℃ FULL 7 +25℃ FULL 0.15 +25℃ FULL 0.15 +25℃ FULL 2 +25℃ FULL 3 +25℃ DIGITAL CONTROL INPUTS(1) Input High Voltage VINH Input Low Voltage VINL Input Leakage Current IIN VIN = VIO or 0 (1) All unused digital inputs of the device must be held at VIO or GND to ensure proper device operation. 3 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 ELECTRICAL CHARACTERISTICS (continued) V+ = 5.0 V, TEMP= –40°C to 125°C (unless otherwise noted)) PARAMETER SYMBOL CONDITIONS V+ TEMP MIN TYP MAX UNITS DYNAMIC CHARACTERISTICS Turn-On Time tON VCOM = V+, RL = 300Ω, CL = 35pF, See Figure 5 Turn-Off Time tOFF VCOM = V+, RL = 300Ω, CL = 35pF, See Figure 5 Break-Before-Make Time Delay tBBM Off Isolation OISO -3dB Bandwidth NC,NO OFF Capacitance NC,NO,COM ON Capacitance BW CNC(OFF), CNO(OFF) CNC(ON), CNO(ON), CCOM(ON) 5V 3.3V 5V 3.3V 5V VNO1 = VNC1 = VNO2 = VNC2 = 3V, RL = 300Ω, CL = 35pF, See Figure 3.3V 6 f= 10MHz RL = 50Ω, Switch OFF, See Figure 8 f= 1MHz Switch ON, RL = 50Ω See Figure 7 VNC or VNO=V+/2 or GND, Switch OFF See Figure 4 VNC or VNO=V+/2 or GND, Switch ON See Figure 4 30 40 25 30 5 +25℃ +25℃ +25℃ ns ns ns 8 +25℃ -52 dB +25℃ -71 dB +25℃ 300 MHz +25℃ 5 pF +25℃ 15 pF POWER REQUIREMENTS Power Supply Range V+ Power Supply Current I+ FULL VIN = GND or V+ 5.5V 4 FULL 1.8 5.5 V 1 μA www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 TYPICAL CHARACTERISTICS BANDWIDTH 3 3 0 0 Gain(dB) Gain(dB) BANDWIDTH -3 -3 -6 -6 -9 -9 1 10 100 1,000 1 10 Frequency(MHz) V+=3V 100 1,000 Frequency(MHz) V+=5V Typical ron as a Function of Input Voltage (VI ) for VI = 0 to V+ ron(Ω) 50 10 2 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 VI(V) V+=5.5V V+=4V V+=3.3V 5 V+=2.5V V+=1.8V www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 Parameter Measurement Information Figure 1.ON-State Resistance (ron) Figure 2.OFF-State Leakage Current (ICOM(OFF), INO(OFF)) Figure 3.ON-State Leakage Current (ICOM(ON), INO(ON)) 6 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 Figure 4.Capacitance (CI, CCOM(OFF), CCOM(ON), CNO(OFF), CNO(ON)) Figure 5.Turn-On (tON) and Turn-Off Time (tOFF) Figure 6.Break-Before-Make Time (tBBM) 7 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 Figure 7.Bandwidth (BW) Figure 8.OFF Isolation (OISO) Figure 9.Crosstalk (XTALK) 8 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 Figure 10.Charge Injection (QC) Figure11.Total Harmonic Distortion (THD) 9 www.run-ic.com 此文档权利由RUNIC(润石)享有,您也可访问RUNIC(润石)官方网站获取；立创商城 WWW.SZLCSC.COM,中国领先的现货元器件交易平台。 RS2299 PACKAGE OUTLINE DIMENSIONS QFN-3x3-16L E b L e E1 D D1 N16 N5 N1 TOP VIEW BOTTOM VIEW 0.24 1.70 A1 3.60 A2 A 0.70 0.50 SIDE VIEW 1.70 RECOMMENDED LAND PATTERN (Unit: mm) Symbol Dimensions In Millimeters Dimensions In Inches Min Max Min Max A 0.700 0.800 0.028 0.031 A1 0.000 0.050 0.000 0.002 A2 0.203 0.008 b 0.180 0.300 0.007 0.012 D 2.900 3.100 0.114 0.122 D1 1.600 1.800 0.063 0.071 E 2.900 3.100 0.114 0.122 E1 1.600 1.800 0.063 0.071 e L 0.500 TYP 0.300 0.020 TYP 0.500 10 0.012 0.020 www.run-ic.com
