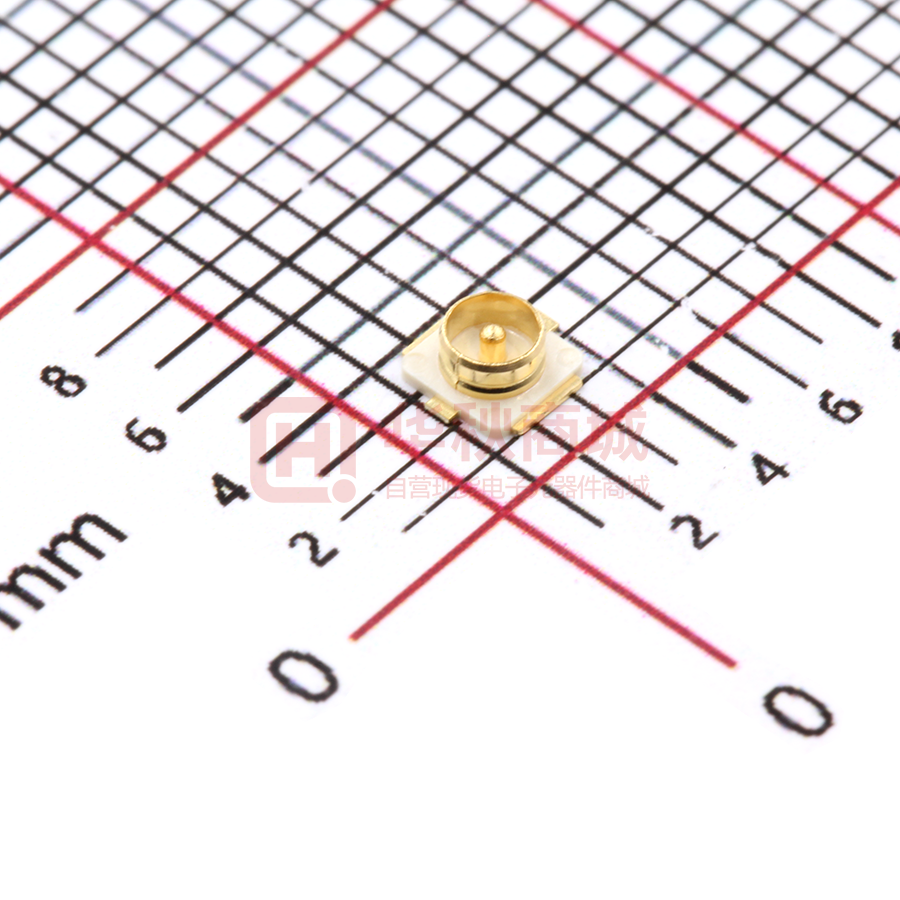

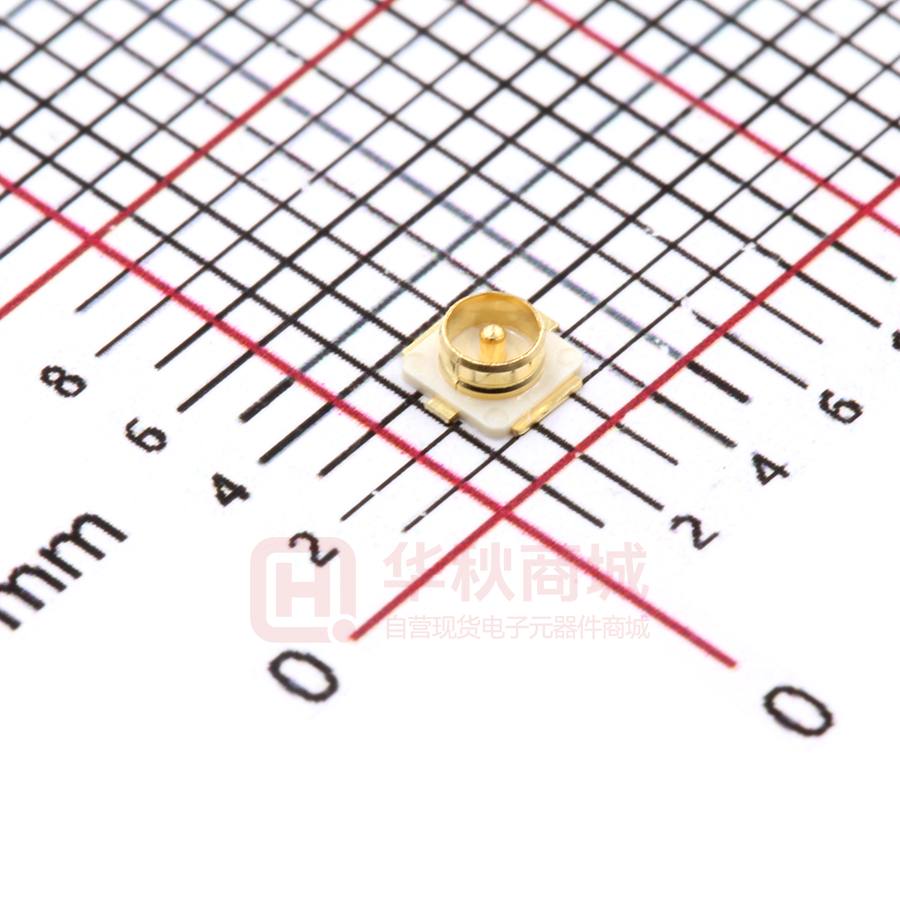

20279-001E-03

MHF® I (2.0 mm Cable O.D.) Optimized for long harness lengths and low insertion loss applications with mated height of 3.0 mm. Solderless micro-coaxial termination with "i-Fit®" technology. Best insertion loss possible with 2.0 mm O.D. micro-coaxial. 2.0 mm O.D. (AWG #26) micro-coaxial cable plug, mates to standard MHF I receptacle. Maximum height (mm) Outside dimension of receptacle(mm) Applicable wire gauge 3.0 3.1 x 3.0 O.D. 1.80 / 1.37 mm / AWG 30 O.D. 1.32 / 1.13 mm / AWG 32 O.D. 0.81 mm / AWG 36 DC～9 GHz Frequency Connector PLUG RECE DC～3 GHz VSWR (L=100 mm) 3 GHz～6 GHz 1.3 max. 1.3 max. 1.5 max. 1.4 max. 6 GHz～9 GHz 1.6 max. 1.8 max. Service temp. (Celsius) -40 degree ～ +90 degree Characteristic impedance 50 ohm Rated voltage AC60V Contact resistance 20m ohm max. Withstand voltage AC200V/min Insulation resistance 500M ohm min./DC100V Solderless Micro-Coaxial Termination with "i-Fit®" Technology Center Conductor Contact Dielectric Core Center Conductor Outer Conductor Jacket Crimping Best Insertion Loss Possible with 2.0 mm O.D. Micro-Coaxial VSWR L=100 mm (Harness) 2.0 MHF I φ0.81 MHF I Φ1.80 1.8 Insertion Loss L=100 mm (Harness) MHF I φ1.13 MHF I Φ2.00 0.0 MHF I Φ1.37 -0.5 -1.0 VSWR 1.6 dB -1.5 1.4 -2.0 1.2 -2.5 1.0 -3.0 1 3 5 GHz 7 9 MHF I φ0.81 0 1 2 MHF I φ1.13 3 4 GHz 5 MHF I Φ1.37 6 7 8 9 2.0 mm O.D. (AWG #26) Micro-Coaxial Cable Plug, Mates to Standard MHF I Receptacle Coax O.D. (Center Conductor AWG) 2.00 mm (26) 1.80 mm (30) 1.37 mm (30) 1.32 mm (32) 1.13 mm (32) 0.95 mm (33) 0.81 mm (33) 0.81 mm (36) 0.64 mm (36) 0.48 mm (38) Receptacle Mating Height 3.0 mm max. 2.5 mm max. 2.9 mm max. with MHF I LK ○ ○ ○ ○ ○ ○ MHF I/II receptacle Contact your sales representative for more detailed information. [ i-pex.com ] 202008R0 MHF® I (2.0 mm Cable O.D.) Component Parts Detail MHF® I plug (2.0 mm Cable O.D.) Rev.2 Contact your sales representative for more detailed information. [ i-pex.com ] 202008R0 MHF® I plug (2.0 mm Cable O.D.) Rev.2 MHF® I plug (2.0 mm Cable O.D.) Rev.2 Contact your sales representative for more detailed information. [ i-pex.com ] 202008R0 Accessories for MHF® I plug (2.0 mm Cable O.D.) Rev.2 MHF® I Receptacle Rev.25 Contact your sales representative for more detailed information. [ i-pex.com ] 202008R0 MHF® I Receptacle Rev.25 MHF® I Receptacle Rev.25 Contact your sales representative for more detailed information. [ i-pex.com ] 202008R0 Accessories for MHF® I Receptacle Rev.25 Copyright © I-PEX Inc. 2020. All rights reserved. I-PEX, MHF, CABLINE, NOVASTACK, EVAFLEX, MINIFLEX, ISH, IARPB, IASLP, ESTORQ, i-Fit and ISFIT are registered trademarks of I-PEX Inc. Please note that the contents in the catalog might be changed without prior notification. I-PEX Inc. assumes no responsibility for any inaccuracies or obligation to update Information on these documents. Please be sure to read and understand the latest "Precautions for Use" and "Instruction Manual" before you use our products. We shall not be responsible for any defects, damages or troubles in case you use our products without following the precautions for use. Please feel free to contact our sales representatives when you use our products for any applications that require very high reliability and safety, or that relate to human life (ex. nuclear power control, aerospace, transportation, medical equipment, safety equipment etc.). Contact your sales representative for more detailed information. [ i-pex.com ] 202008R0
