无锡市方舟科技电子有限公司
WUXI ARK TECHNOLOGY ELECTRONIC CO. , LTD
规格书
DATASHEET
方舟 P/N(ARKLED P/N): D-B080508B1-KS2
日期(Date):2017-01-17
版本(Version):V1.0
制定:
审核:
地址:江苏省宜兴市金张渚工业集中区宇龙路 6 号
Add: NO.6, Yulong Road, Golden Zhangzhu Industrial Park, Yixing City, Jiangsu Province, China
电话(Tel): 销售(Sales): 0086-510-87341161
技术(Tech) : 0086-510-87341558
邮箱(Email):销售(Sales):sales@arkchn.com
技术(Tech) : tech@arkchn.com
传真(Fax) : 0086-510-87342800
网址(Website) : www.arkch.com
DATASHEET
D-B080508B1-KS2

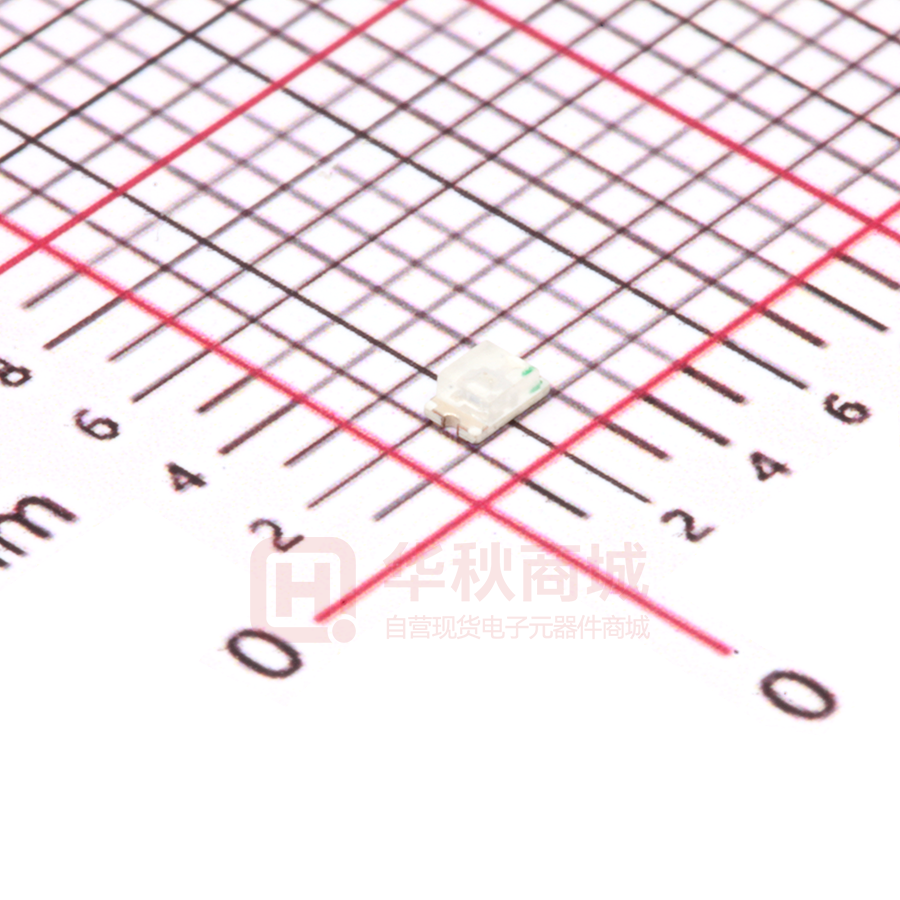

SMD (2.0*1.25mm)
Page 2/12
产品特征
由 8mm 料带装载在直径 7 英寸料盘上
适用于高速贴片设备
适用于回流焊接设备
高可靠性和高稳定性
高品质、和低功耗、低成本
符合 RoHS 指令要求
符合无铅要求
静电承受能力 1000V(HBM)
Fetures
Package in 8mmtape on 7” diameter reel
Compatible with automatic placement equipment.
Compatible with infrared and vapor phase reflow solder process.
High intensity and reliability.
High quality, Low power requirement and low cost.
The product itself will remain within RoHS compliant version.
Pb-free.
ESD 1000V(HBM).
物料基本信息
Device Selection Guide
芯片材料
Chip material
发光颜色
Emitted color
环氧树脂颜色
Resin Color
InGaN
蓝色
Blue
透明
Water Clear
DATESHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
绝对最大额定参数
Page 3/12
Absolute Maximum Ratings(Ta=25℃)
参数
Parameter
符号
Symbol
最大
Maximum
单位
Unit
功率
Power Dissipation
Pd
70
mW
峰值正向电流
Peak Forward Current (Duty 1/10 @1KHz)
IF(Peak)
80
mA
正向电流
Continuous Forward Current
IF
20
mA
反向电压
Reverse Voltage
VR
5
V
静电放电
Electrostatic Discharge(HBM)
ESD
1000
V
工作温度范围
Operating Temperature Range
Topr
-30 to +80
℃
存储温度范围
Storage Temperature Range
Tstg
-40 to +90
℃
焊接温度
Soldering Temperature
Tsol
回流焊:260℃/10 sec
手工焊:350℃/3 sec
Reflow Soldering : 260 ℃ for 10 sec.
Hand Soldering : 350 ℃ for 3 sec.
DATASHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
光电参数
Page 4/12
Electrical/Optical Characteristics(Ta=25℃)
参数
Parameter
符号
Symbol
最小值
Min.
发光强度
Luminous Intensity
IV
主波长
Dominant Wavelength
最大值
Max.
单位
Unit
条件
Condition
35
60
mcd
IF=5mA
λd
459
464
nm
IF=5mA
视角
Dominant Wavelength
2θ1/2
-----
-----
Deg
IF=5mA
正向电压
Forward Voltage
VF
2.6
3.2
V
IF=5mA
反向电流
Reverse Current
IR
-----
10
µA
VR=5V
注意:
1. 光强公差为±15%
2. 正向电压公差为± 0.1v
3. 主波长公差为± 1nm
平均值
Typ.
120
-----
Note:
1. Luminous Intensity Tolerance ±15%
2. Forward VoltageTolerance ± 0.1v
3. Dominant Wavelength Tolerance ± 1nm
DATASHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
光电曲线
Typical Electro-Optical Characteristics Curves
Page 5/12
DATASHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
外型尺寸图
Page 6/12
Package Outline Dimensions
①
②
①
②
极性 Polarity
负极 Cathode Mark
推荐焊盘尺寸
Recommend Soldering Pad
①
注意:
1. 单位为毫米.
2. 未标注的公差为±0.1mm.
②
Note:
1. All dimensions are in millimeters.
2. Tolerances unspecified are ±0.1mm.
DATASHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
包装材料
标贴解释
Page 7/12
Packing Materials
Label Explanation
P/N:型号
Part Number
QTY:数量
Packing Quantity
BIN:BIN 级
LOT No: 生产任务单号
ERP No: ERP 单据编号
ARKLED方舟科技
CODE:
XXXXXXXXXXXXX
P/N:
XXXXXXXXXXXXX
QTY:
3000PCS
BIN:
XXXXXX
LOT NO:
XXXXXXX
IV(mcd):
XXXXXX
ERP NO:
XXXXXXX
Date:
XXXXXX
BIN Rank
Lot Number
ERP Number
料盘尺寸 Reel Dimensions
注意:
1. 单位为毫米.
2. 未标注的公差为±0.1mm.
Note:
1. All dimensions are in millimeters.
2. Tolerances unspecified are ±0.1
DATASHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
Page 8/12
包装数量:每料盘装载数量 3000 颗
Carrier Tape Dimensions: Loaded quantity 3000 PCS per reel
注意:
1. 单位为毫米.
2. 未标注的公差为±0.1mm.
包装
Note:
1. All dimensions are in millimeters.
2. Tolerances unspecified are ±0.1mm.
Moisture Resistant Packaging
标签 Label
干燥剂 Desiccant
防潮袋 Moistue-proof Bag
DATASHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
Page 9/12
可靠性实验和条件
Reliability Test Items And Conditions
产品的可靠性必须通过以下实验。
The reliability of products shall be satisfied
with items listed below.
Confidence level:90%
LTPD:10%
置信等级:90%
LTPD:10
项目
Items
测试条件
Test Conditions
测试时长/周期
Test Hours/Cycles
样本数量
Sample size
Ac/Re
回流焊
Reflow Soldering
260℃±5℃/5 sec
3 cycles
22 pcs
0/1
80℃/90%RH 9.5Hrs
∫ 45 min
45 cycles
22 pcs
0/1
300 cycles
22 pcs
0/1
温湿度高低温交变
Temperature/Humidity
Alter
冷热冲击
Thermal Shork
-20℃ 1Hr
100℃ 15min
∫ 5 min
-40℃ 15min
高温存储
High Temperature
Storage
100℃
1000 Hrs
22 pcs
0/1
低温存储
Low Temperature
Storage
-40℃
1000 Hrs
22 pcs
0/1
直流点亮寿命
DC Operating Life
IF = 20 mA
1000 Hrs
22 pcs
0/1
高温高湿
High Temperature /
High Humidity
85℃/ 85%RH
1000 Hrs
22 pcs
0/1
DATASHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
Page 10/12
使用注意事项
Precautions For Use
过电流保护
顾客需要使用电阻进行保护,否则轻微的的电
压波动会导致较大的电流改变(有产品烧
坏的可能)。
储藏
1. 未使用产品之前请勿打开防潮包装袋。
2. 产品需在一年之内使用。未使用的产品需
保存在温度低于 25℃,湿度低于 80%的环
境中。
3. 当打开包装袋后,产品需保存在湿度低于
60%的环境中。
4. 当打开包装袋后,产品需在 168 小时(7
天)内用完。
5. 如果产品存放超过指定期限,需对产品进
行烘烤,烘烤条件为 60±5℃/24 hours。
焊接条件
1. 无铅回流焊温度曲线
Over–Current–Proof
Customer must apply resistors for protection,
otherwise slight voltage shift will cause big
current change.(Burn out will happen)
Storage
1. Do not open moisture proof bag before the
products are ready to use.
2. The LEDs should be used within a year.
Before opening the package, the LEDs
should be kept at 25℃ or less and 80%RH
or less.
3. After opening the package, the LEDs should
be kept at 60%RH or less.
4. The LEDs should be used within 168 hours
(7 days) a after opening the package.
5. If the LEDs have exceeded the storage time,
baking treatment should be performed
using the following conditions. Baking
treatment : 60±5℃ for 24 hours
Soldering Condition
1. Pb-free solder temperature profile
DATASHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
2. 不可通过二次回流焊
3. 回流焊进行时,芯片不可受力
4. 回流焊后,不可弯曲线路板
烙铁焊接
产品每一端的焊点必须使用功率小于 25w 的
烙铁尖端焊接,烙铁温度必须低于 350℃,时
间为 3 秒。间隔 2 秒或更长时间后,才能进行
另一端的焊接。请务必小心操作因为产品很容
易因为手工焊接造成损伤。
维修
当产品已经焊接好后,一般不可维修。只有当
维修不可避免时,则必须使用双头烙铁(如下
图)
,请事先确保产品是否会因为维修而损坏。
Page 11/12
2. Reflow soldering should not be done more
than two times.
3. When soldering, do not put stress on the
LEDs during heating.
4. After soldering, do not warp the circuit
board.
Soldering Iron
Each terminal is to go to the tip of soldering
iron temperature less than 350℃ for 3 seconds
within once in less than the
soldering iron capacity 25W. Leave two seconds
and more intervals, and do soldering of each
terminal. Be careful because
the damage of the product is often started at
the time of the hand solder.
Repairing
Repair should not be done after the LEDs have
been soldered. When repairing is unavoidable,
a double-head soldering
iron should be used (as below figure). It should
be confirmed beforehand whether the
characteristics of the LEDs will or will
not be damaged by repairing.
DATASHEET
D-B080508B1-KS2
SMD (2.0*1.25mm)
Page 12/12
应用局限
高可靠性应用(例如:军事,航空航天,汽车安全系统,医疗设备等)可能需要更高要求的
产品。如果您有任何疑虑,请在使用该产品之前联系我们。此规格书仅保证该产品作为单独
部件的质量和性能。请勿超出此文件对该产品规格性能描述使用。
Application Restrictions
High reliability applications such as military/aerospace, automotive safety/security systems,and
medical equipment may require different product. If you have any concerns, please contact us
before using this product in your application. This specification guarantees the quality and
performance of the product as an individual component. Do not use this product beyond the
specification described in this document.
