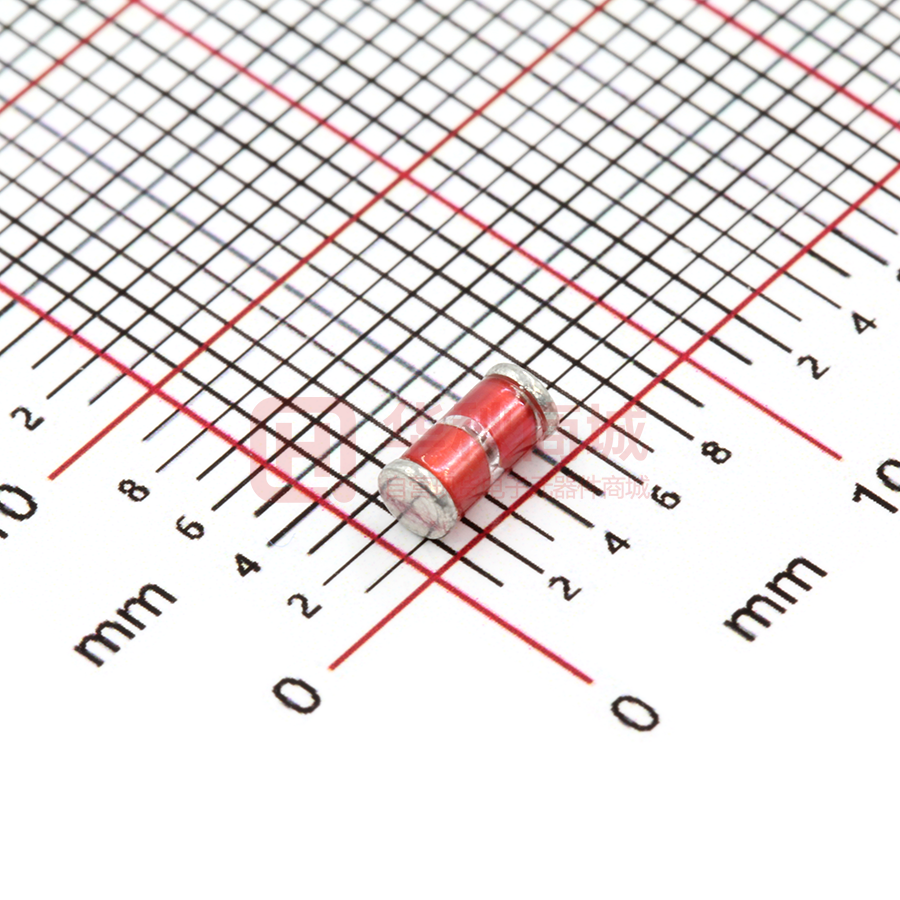

TED485SA

TED485SA Spark Gap Protectors  Features 1. 2. 3. 4.  Small size RoHS compliant and halogen-free Fast response time Low electrode capacitance (0.8pF) and high isolation (100MΩ ) Recommended Applications 1. Telephone, Fax, Modem 2. Power supplies 3. High frequency signal transmitters/receivers 4. Satellite antenna 5. Radio amplifies 6. Alarm systems  Structures and Dimensions Unit:mm  Item Spec Tolerance A 0.4 0.1 B 5.0 0.5 C 2.8 0.2 Electrical Characteristics DC Spark-over Voltage Impulse Withstanding Voltage Capacity 10x700μs Impulse Discharge Current 8x20μs VS (V) (KV) (A) IR(MΩ) Min DC(V) (PF) 200±20% 2 1000 100 100 0.8 Part No. TED485SA 1/3 Insulation Resistance Min.DC Capacitance Max TED485SA Spark Gap Protectors  Soldering Recommendation ◎ IR-reflow Soldering Profile ◎ Recommended Reworking Conditions with Soldering Iron: Item Conditions Temperature of Soldering Iron-tip 350±5 ℃ Soldering Time 3 sec. (max.) 2/3 TED485SA Spark Gap Protectors  Packaging Tape Reel Symbol Dimension (mm) W 12.00±0.20 P0 4.00±0.10 P1 4.00±0.10 P2 2.00±0.10 D0 Φ1.5±0.10 D1 Φ1.5±0.10 E 1.75±0.10 F 5.50±0.05 A0 3.00±0.10 B0 6.00±0.10 K0 3.00±0.10 T 0.30±0.05 D 178.0 d 13.0 L 15.0 Quantity: 1500PCS 3/3
