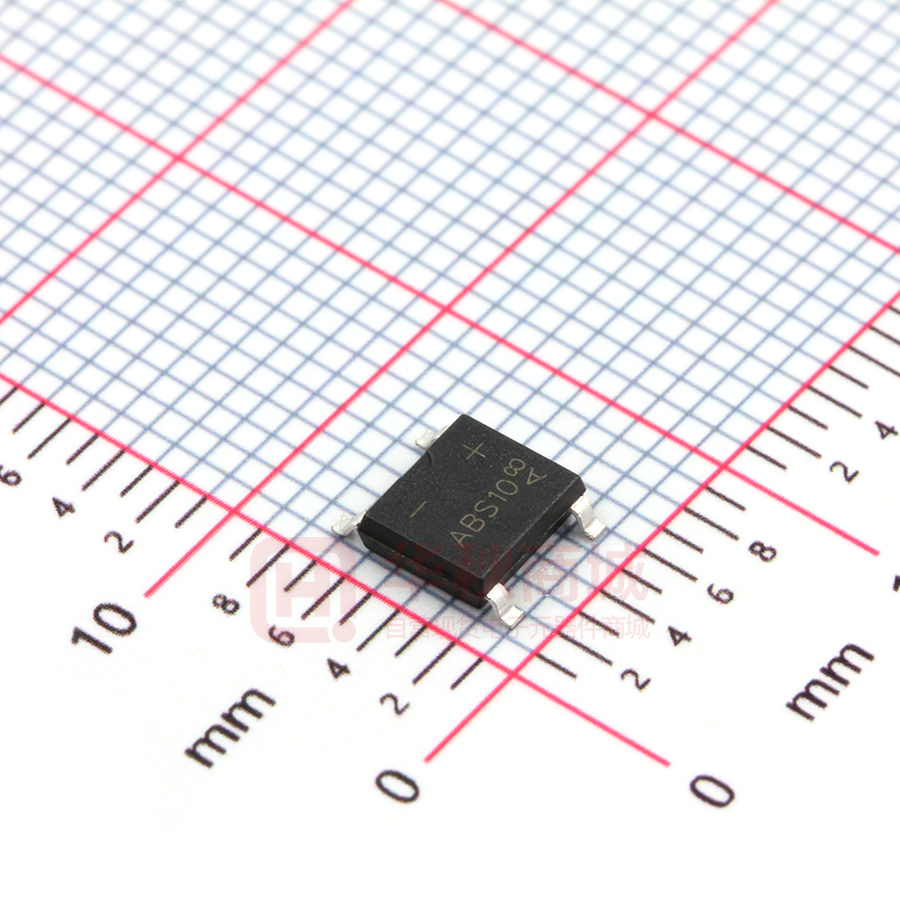

ABS10

ABS1 THRU ABS10 0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER FEATURES: • Glass Passivated Chip Juntion • Reverse Voltage - 100 to 1000 V • Forward Current - 0.8 A • High Surge Current Capability • Designed for Surface Mount Application MECHANICAL DATA • Case: ABS/LBF • Terminals: Solderable per MIL-STD-750, 750, Method 2026 • Approx. Weight: 88mg 0.0029oz Maximum Ratings and Electrical characteristics Ratings at 25℃ ambient temperature unless otherwise specified.Single phase half-wave wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C. REV.08 1 of 3 2. Mounted on glass epoxy PC board with 1.3mm2 copper pad. ABS1 THRU ABS10 REV.08 2 of 3 ABS1 THRU ABS10 PACKAGE OUTLINE Plastic surface mounted package; 4 leads REV.08 ABS/LBF 3 of 3
