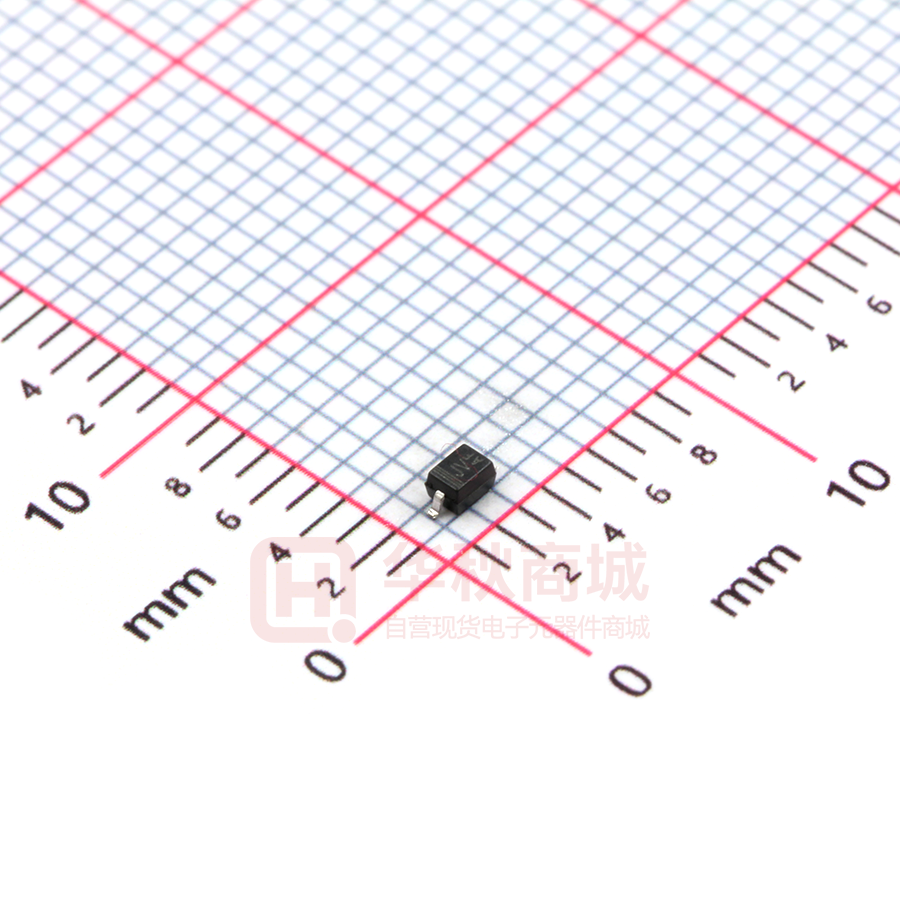

BAT54H

BAT54H Surface Mount Schottky Barrier Diodes PINNING Features DESCRIPTION PIN • Low Forward Voltage 1 Cathode 2 Anode 2 1 Top View Marking Code: JV Simplified outline SOD-323 and symbol Absolute Maximum Ratings (Ta = 25 C) O Parameter Symbol Value Unit VRRM 30 V VR 30 V Average Forward Rectified Current IF(AV) 300 mA Non-Repetitive Peak Forward Surge Current at t = 1 s IFSM 2 A Power Dissipation Ptot 200 mW Tj, Tstg - 65 to + 125 Peak Repetitive Reverse Voltage Reverse Voltage Operating and Storage Temperature Range C O Characteristics at Ta = 25 C O Symbol Min. Typ. Max. V(BR)R 30 - - IR - - 5 5 5 VF - - 0.37 0.6 V Total Capacitance at VR = 0 V, f = 1 MHz CT - 50 - pF Reverse Recovery Time at IF = IR = 200 mA, Irr = 0.1 IR, RL = 100 Ω trr - 10 - ns Parameter Reverse Breakdown Voltage at IR = 10 ÿA Reverse Leakage Current at VR = 30 V at VR = 20 V at VR = 10 V Forward Voltage at IF = 20 mA at IF = 200 mA REV.08 1 of 3 Unit V µA BAT54H REV.08 2 of 3 BAT54H PACKAGE OUTLINE Plastic surface mounted package; 2 leads REV.08 3 of 3 SOD-323
