DFLS120 THRU DFLS1200
Surface Mount Schottky Barrier Rectifier
Reverse Voltage - 20 to 200 V Forward Current - 1.0 A
FEATURES
• Metal silicon junction, majority carrier conduction
• For surface mounted applications
• Low power loss, high efficiency
• High forward surge current capability
• For use in low voltage, high frequency inverters,
free wheeling, and polarity protection applications
MECHANICAL DATA

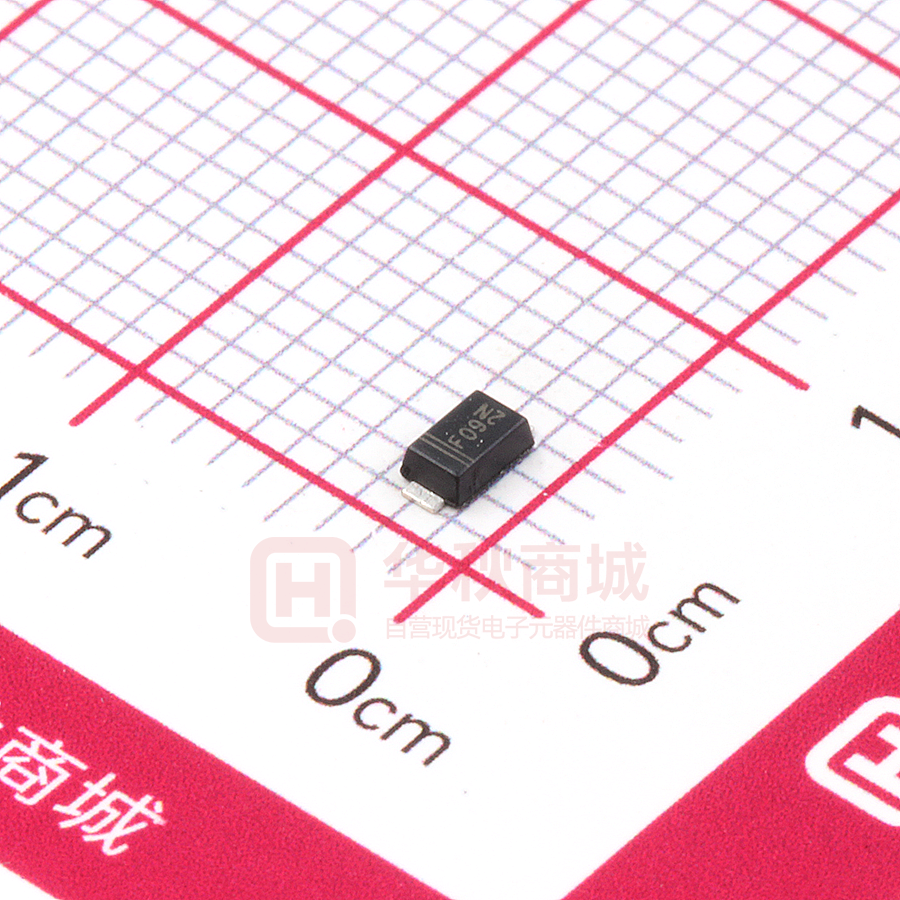

• Case: SOD-123FL
• Terminals: Solderable per MIL-STD-750,
750, Method 2026
• Approx. Weight:15mg 0.00048oz
Absolute Maximum Ratings and Electrical characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load,for capacitive load,
derate by 20 %
1）
Measured at 1MHz and applied reverse voltage of 4 V D.C.
REV.08
2）
1 of 3
P.C.B. mounted with 0.2 X 0.2" (5 X 5 mm) copper pad areas.
DFLS120 THRU DFLS1200
REV.08
2 of 3
DFLS120 THRU DFLS1200
PACKAGE OUTLINE
Plastic surface mounted package; 2 leads
REV.08
SOD-123FL
123FL
3 of 3
