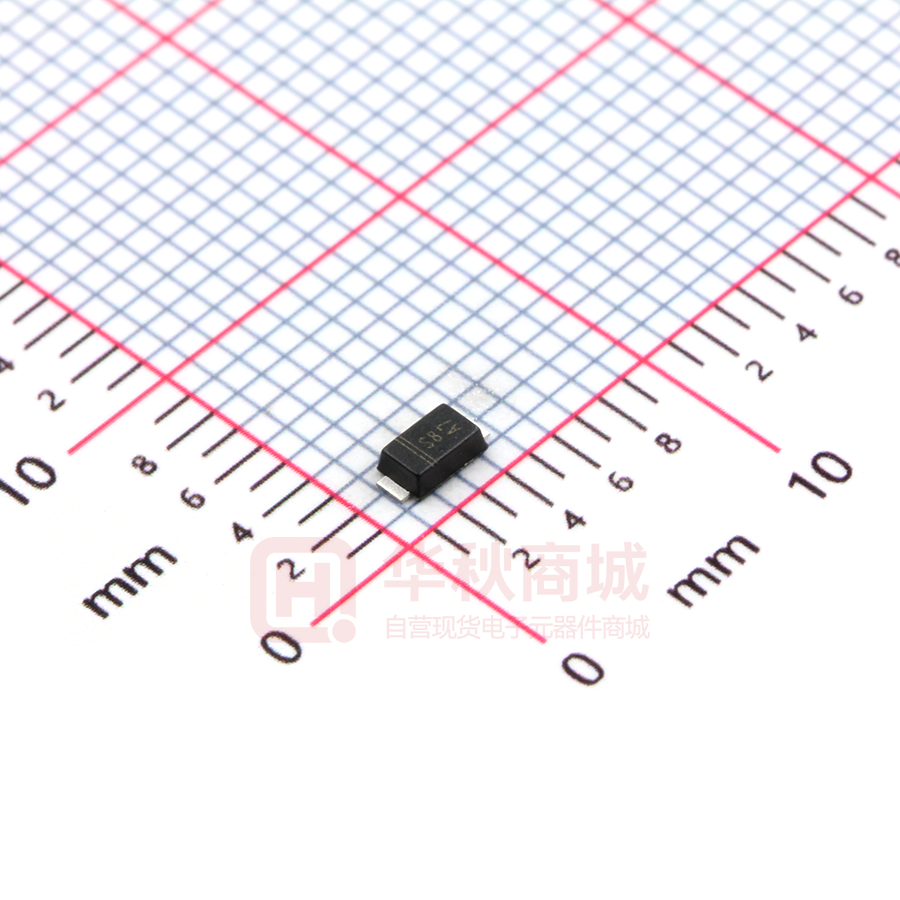

CRS08

CRS08 Surface Mount Schottky Barrier Rectifier Reverse Voltage - 30 V Forward Current - 1.5A PINNING PIN Features • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA • Case: SOD-123FL • Terminals: Solderable per MIL-STD-750, Method 2026 • Approx. Weight:15mg 0.00048oz DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Simplified outline SOD-123FL and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Symbols Parameter CRS08 Units Maximum Repetitive Peak Reverse Voltage V RRM 40 V Maximum RMS voltage V RMS 28 V Maximum DC Blocking Voltage V DC 40 V Maximum Average Forward Rectified Current I F(AV) 1.5 A Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM 50 A VF 0.55 V IR 0.5 5 mA Cj 220 pF RθJA 80 °C/W Tj -55 ~ +125 °C T stg -55 ~ +150 °C Max Instantaneous Forward Voltage at 2 A Maximum DC Reverse Current T a = 25°C at Rated DC Reverse Voltage T a =100°C Typical Junction Capacitance 1） Typical Thermal Resistance 2） Operating Junction Temperature Range Storage Temperature Range 1） Measured 2） at 1MHz and applied reverse voltage of 4 V D.C. P.C.B. mounted with 0.2 X 0.2" (5 X 5 mm) copper pad areas. REV.08 1 of 3 CRS08 Fig.2 Typical Reverse Characteristics Instaneous Reverse Current ( μA) Fig.1 Forward Current Derating Curve Average Forward Current (A) 3.0 100LFM 2.5 2.0 1.5 1.0 Single phase half-wave 60 Hz resistive or inductive load 0.5 0.0 25 50 75 100 125 150 10 4 10 1 T J =25°C 10 0 0 60 80 100 Fig.4 Typical Junction Capacitance 500 Junction Capacitance ( pF) 20 10 1.0 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 50 20 10 1 0.1 100 10 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance 50 40 30 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 100 Instaneous Forward Voltage (V) 60 10 T J =25°C 200 1.8 Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Peak Forward Surage Current (A) T J =75°C 10 2 Lead Temperature (°C) 10 100 Number of Cycles at 60Hz REV.08 T J =100°C 10 3 200 100 10 1 0.01 0.1 1 10 t, Pulse Duration（sec） 2 of 3 100 CRS08 PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL ∠ALL ROUND C A ∠ALL ROUND VM D E A g Top View mil Bottom View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm g pad e E A pad HE 7° The recommended mounting pad size 2.0 (79) 1.2 (47) 1.2 (47) 1.2 (47) Unit： mm (mil) REV.08 ∠ 3 of 3
