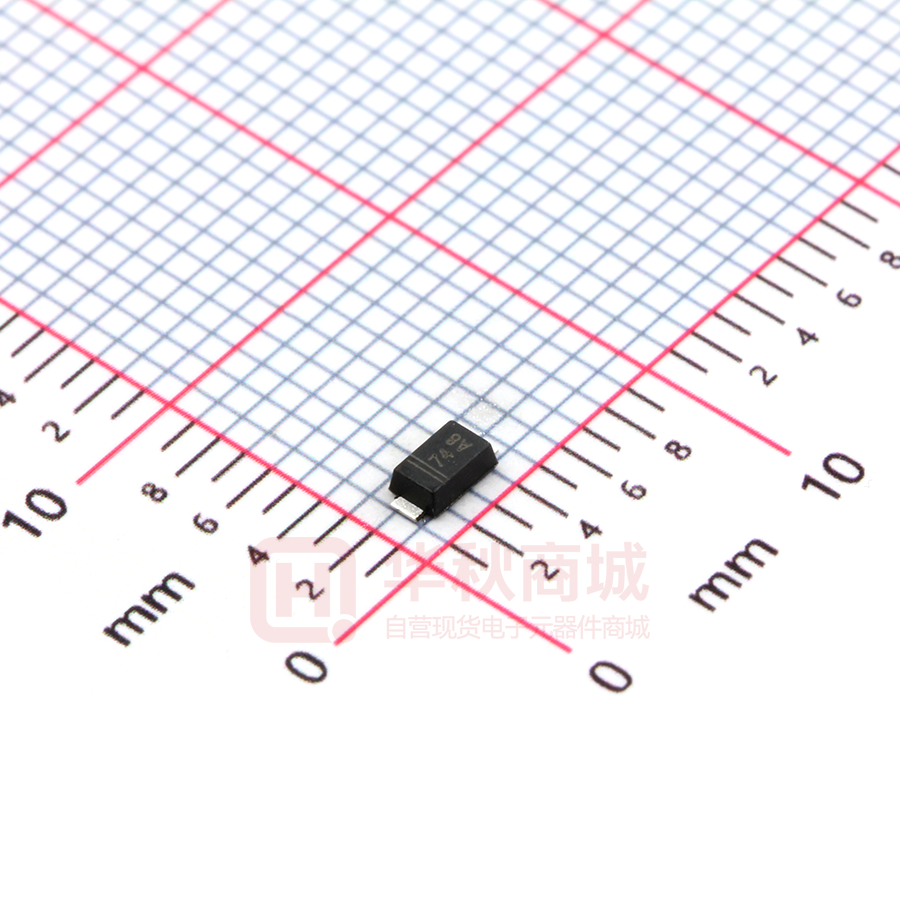

RB160M-40

Surface Mount Schottky Barrier Rectifier Reverse Voltage - 30 to 90 Forward Current - 1.0 A FEATURES • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability PIN DESCRIPTION 1: Cathode 2: Anode • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications Simplified outline SOD-123FL 123FL and symbol MECHANICAL DATA • Case: SOD-123FL • Terminals: Solderable per MIL-STD-750, 750, Method 2026 • Approx. Weight:15mg 0.00048oz Absolute Maximum Ratings and Electrical characteristics Ratings at 25℃ ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load,for capacitive load, derate by 20 % 1） Measured at 1MHz and applied reverse voltage of 4 V D.C. 2） P.C.B. mounted with 0.2 X 0.2" (5 X 5 mm) copper pad areas. 1 of 3 2 of 3 PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL 123FL 3 of 3
