CZ-514

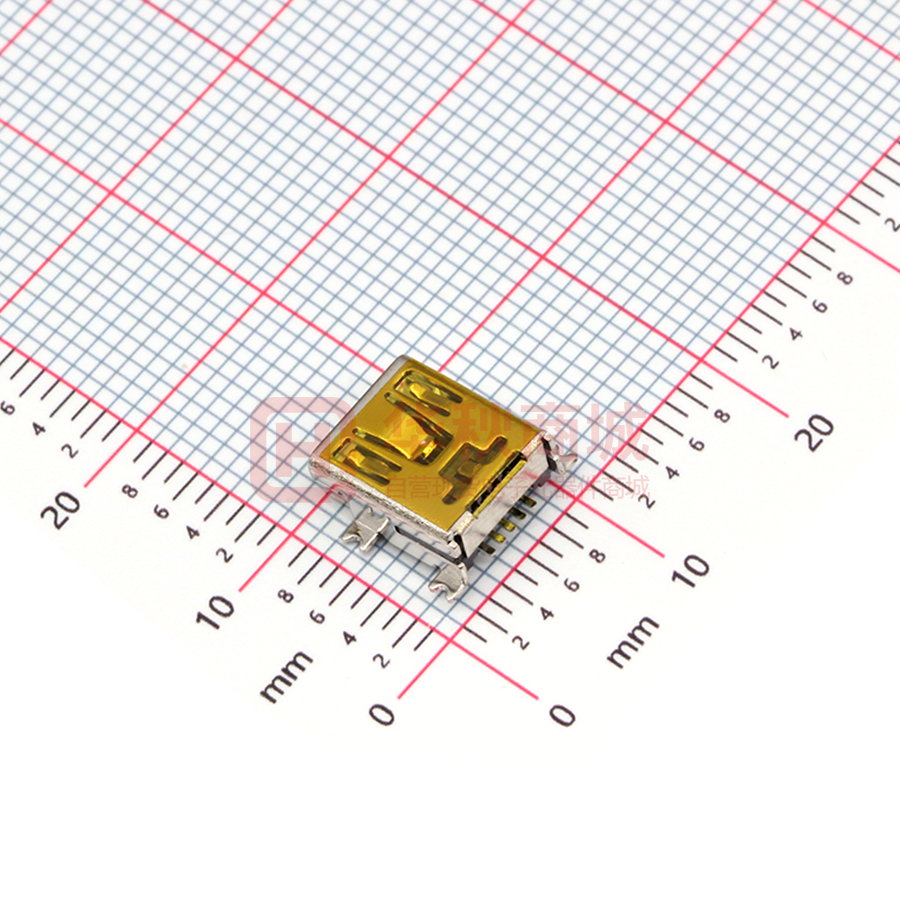

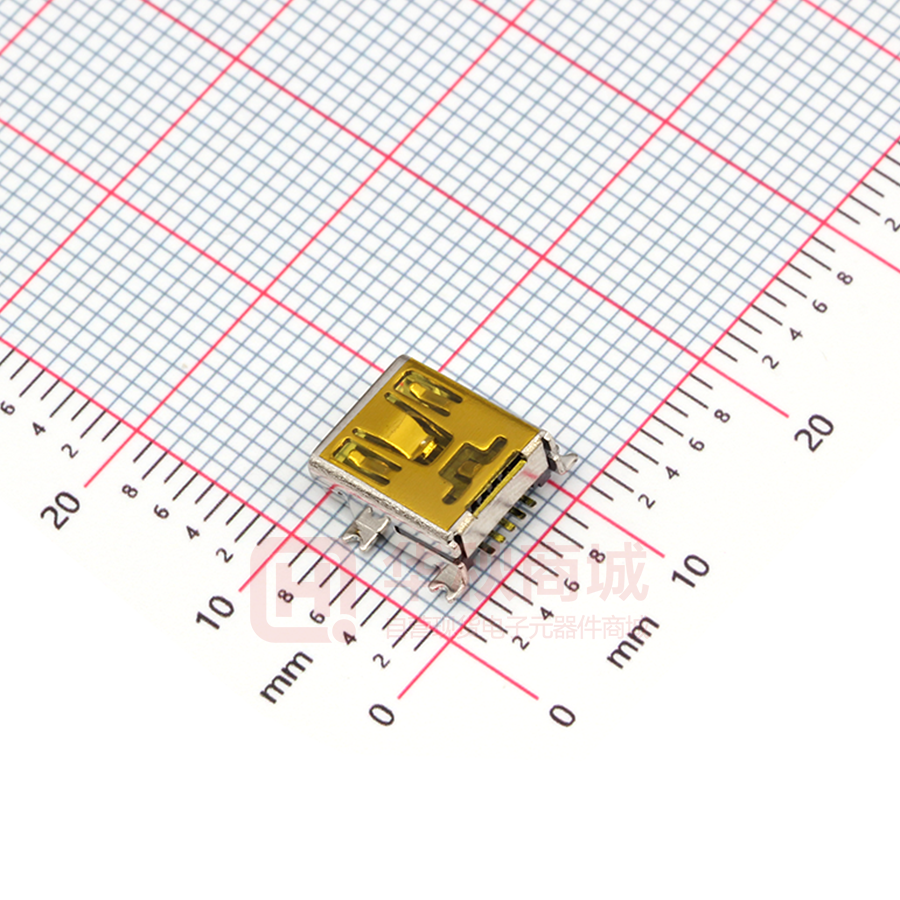

碩方精密连接器 C ONNECTORS www.Sofng.com (5PIN)MINI-USB 连接器 Operation:SMT/卧式 LTEM NO.:CZ-514 (Series) (L9.2× (L9.2×W7.5× W7.5×H3.7 DC-CONNECTORS) 表面贴装 SMT 侧向操作 LATERAL Material declaration Technical parameter ╲ LEVEL A[better product] Contact Rating 25mA, 24V DC Electrical Initial Contact Resistance 50mΩ max. Properties Insulation Resistance Withstand Voltage 100MΩ min.500V DC NAME Description ①A 基座 LCP (Gray)耐高温塑胶 UL94V-0 ②B 外壳 黄铜 C2680/SPCC[镀锡 50u〞min] ③C 动态端子 磷铜 C5191[锡基镀金/S1] ④D 腹膜层 KTC 聚酰亚胺 Polyimide B[average product] ╲ PROJECT 可靠 STABILIZE 適合環保 RoHS Skey/PD：100MΩ min.300V DC 500V AC for 1 minute 350 V AC for 1 minut There No Load 6,000 Cycles 5,000 Cycles Rated Load 5,000 Cycles 4,000 Cycles PIN SIGNAL Durable Performance Sterage temp. 精密部品 NICETY No. -35℃～+75℃(Operating Temp: 1 V BUS +5V 2 -DATA 0 Neagative Data Channel 0 3 +DATA 0 Positive Data Channel 0 4 ID OTG 5 GND Ground ) Operating Force IF:35N MAX.(EF:10.0N MIN.) Heat Rrsistance IR Reflow:255℃,5sec. Manual:350℃,3sec. Unit:mm ● ● ● ● ● P.C.B LAYOUT ●
