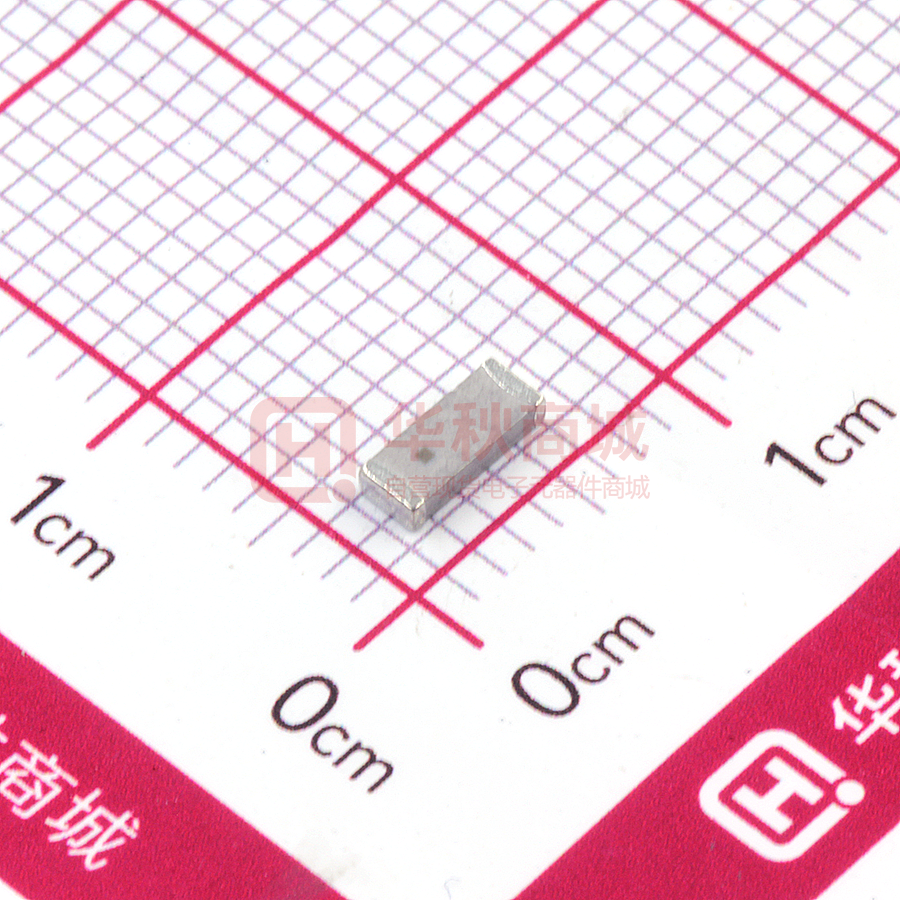

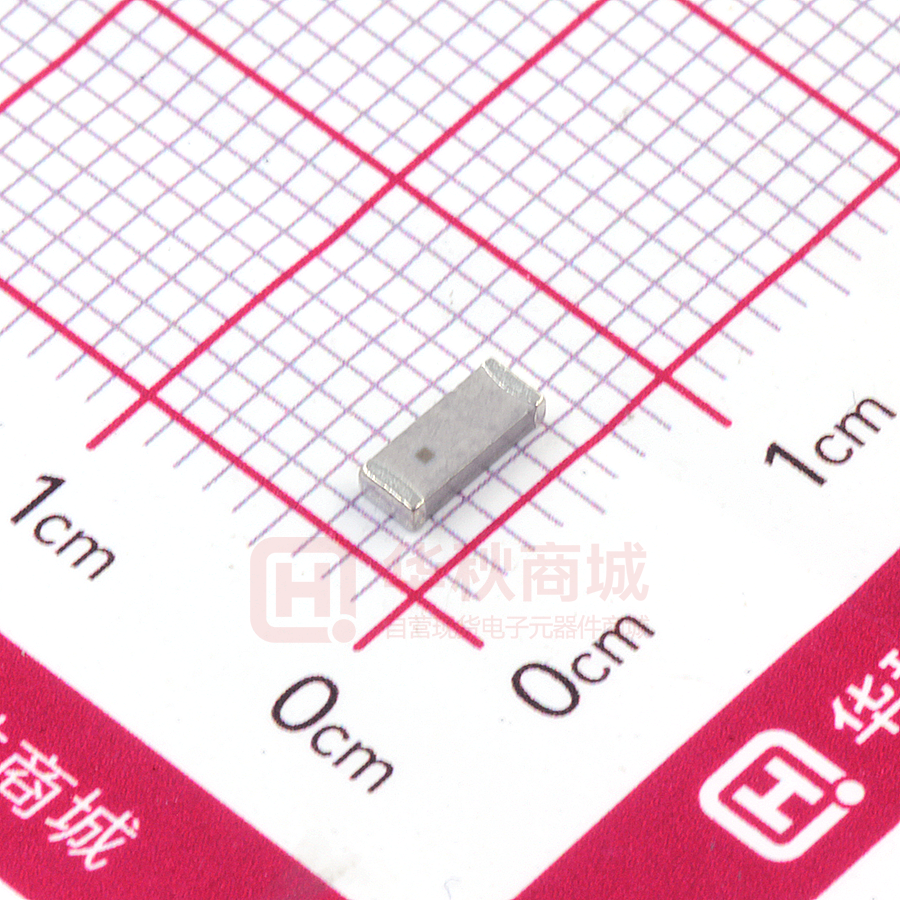

SLDA52-2R540G-S1TF

Multilayer Chip Antenna – SLDA Series Operating Temp. : -40℃~+85℃ FEATURES Light weight, compact Wide bandwidth, low cost Built-in antenna with high gain ● ● ● APPLICATIONS Bluetooth, Wireless LAN, Mobile TV Home RF system, etc. ● ● PRODUCT IDENTIFICATION SLDA ① 31 -2R800G -S1 T F ② ③ ④ ⑤ ⑥ ① ② Type SLDA ③ External Dimensions (L×W) (mm) 31 3.2×1.6 52 5.2×2.1 62 6.0×2.0 72 7.0×2.0 81 8.0×1.0 92 9.0×2.0 Multilayer Chip Antenna ④ Example 2R800G 2R450G ⑥ ⑤ Series Code S1, 01, etc. Center Frequency Nominal Value 2800.0MHz 2450.0MHz T Hazardous Substance Free Products F Packing Tape & Reel SHAPE AND LAND PATTERN Type: Dimensions (mm) Type: SLDA21-2R450G-S1TF Land Pattern (mm) J Chip Land pattern Solder-resist F H G E G Land Solder-resist E F E I Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS Series A B C D E F G H I J SLDA31 3.2±0.2 1.6±0.2 1.2±0.2 0.5±0.2 1.6±0.2 0.8±0.2 0.8±0.2 2.2±0.2 1.4 1.6±0.2 SLDA52 5.2±0.2 2.1±0.2 1.0±0.2 0.5±0.2 2.3±0.2 1.5±0.2 1.0±0.2 4.0±0.2 1.4 2.3±0.2 SLDA62 6.0±0.2 2.0±0.2 1.0±0.2 0.5±0.2 2.2±0.2 1.5±0.2 1.0±0.2 5.0±0.2 1.4 2.2±0.2 SLDA72 7.0±0.2 2.0±0.2 1.0±0.2 0.5±0.2 2.2±0.2 1.5±0.2 1.0±0.2 6.0±0.2 1.4 2.2±0.2 SLDA81 8.0±0.2 1.0±0.2 1.0±0.2 0.5±0.2 1.5±0.2 1.5±0.2 1.0±0.2 7.0±0.2 1.4 1.5±0.2 SLDA92 9.0±0.2 2.0±0.2 1.0±0.2 0.5±0.2 2.2±0.2 1.5±0.2 1.0±0.2 8.0±0.2 1.4 2.2±0.2 TERINAL-CONFIGURATION (2) (1) No. Terminal Name No. Terminal Name (1) Feeding Point (2) NC EVALUATION BOARD Chip antenna No ground area Layout pad Ground area Via SMT connector or cable You can connect it to VNA. SMT Top view Bottom view APPLICATION GUIDE Antenna LNA Balance-Filter BPF Diplexer Matching Circuit Coupler Sunlord PA LPF BALUN Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SLDA31 TYPE Band Width Peak Gain Average Gain VSWR Impedance Power Capacity SLDA31-2R800G-S1TF MHz ≥100 Ω 50 W 3 ≥100
