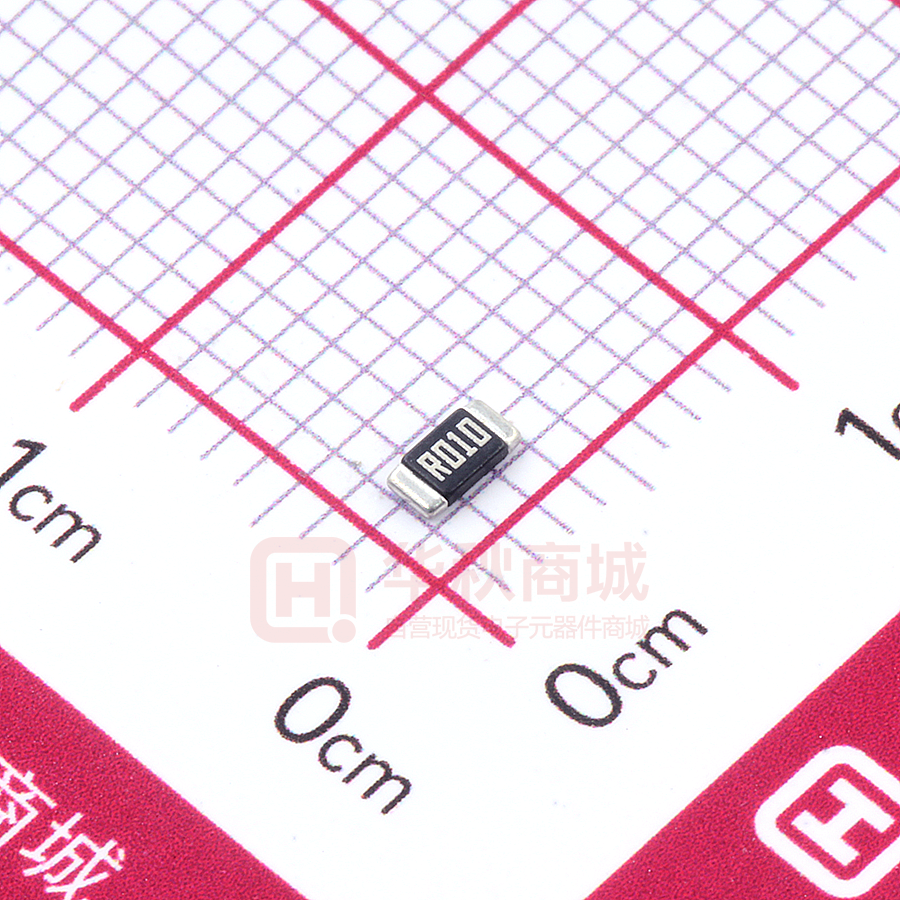

Current Sensing Resistors
RLM Series
( Halogen-Free )
AEC-Q 200-Ver D qualified
Document No
TRLM-120S032D
Issued date
2017/12/27
page
1/6
1. Scope:
This specification applied to the products of current sensing resistor of metal foil for Lead-Free RLM series
manufactured by TA-I TECHNOLOGY CO., LTD.
2. Type Designation:
RLM
Item
12
Series
No
F
Resistance
tolerance
T
Packaging
C
Power Rating
12:1206
F:±1%
T: Paper Tape
(3216)
G:±2%
S=1/2W
R001=1mΩ
J:±5%
C=1W
R030=30mΩ
A=1/4W
M
Metal
M= Metal
R001
Resistance
e.g:
D = 1.5W
3. Construction and Dimension :
3.1 Construction:
Over-Coat
Ni / Sn
Plating
Metal Alloy Plate
3.2 Dimension:
UNIT: mm
Style
L
W
RLM12 3.2±0.20 1.6±0.20
C
t
1.1 ± 0.30
(R=1mΩ)
0.75 ± 0.20
(R=1mΩ)
0.5 ± 0.30
(2mΩ≦R≦30mΩ)
0.6 ± 0.20
(2mΩ≦R≦30mΩ)
Material
Metal : Alloy
Over Coating : molding
Compound UL-94 grade
TA-I TECHNOLOGY CO., LTD
Current Sensing Resistors
RLM Series
( Halogen-Free )
AEC-Q 200-Ver D qualified
Document No
TRLM-120S032D
Issued date
2017/12/27
page
2/6
4. Features:
Type
RLM12
Power Rating
1/4W & 1/2W & 1W & 1.5W
1~30mΩ (1/4W ~ 1W)
1~5 mΩ (1/4W ~ 1.5W)
-55℃~+170℃
±50ppm/℃
±1%、±2%、±5%
Over 100MΩ
(P*R)1/2
Resistance Value
Operation Temperature Range
Temperature Coefficient of Resistance
Tolerance
Insulation Resistance
Maximum Working Voltage(V)
Note*:1 Watts with total solder pad and trace size of 300mm
2
5. Reliability Tests:
Test Items
Temperature Coefficient
of Resistance
High Temperature
Exposure(Storage)
Low temperature
operation
Temperature Cycling
Short time overload
Biased Humidity
Operation life
Resistance to Soldering Heat
Mechanical Shock
Resistance to vibration
Board Flex
Flammability
Reference
IEC60115-1 4.8
MIL-STD202 Method
108
IEC60115-1 4.23.4
JESD22
Method
JA-104
IEC60115-1 4.13
Condition of Test
Test
Limits
+25 ~ 125℃
Refer 4.0
T=125℃,1000hrs,Measurement
at 24hrs after test conclusion.
< ±1%
-55 °C for 45 min
< ±0.5%
1000Cycle (-55℃ to 125
℃),Measurement at 24hrs after test
conclusion.
< ±0.5%
5 X rated power for 5s
< ±0.5%
MIL-STD202 Method
103
MIL-STD202
Method 108
10% Rated voltage at 85
℃,RH:85% ,1000Hrs, Measurement < ±0.5%
at 24hrs after test conclusion.
IEC60115-1 4.18
T=260+/-5℃ solder,10+/-1 sec dwell < ±0.5%
MIL-STD202
Method 213
MIL-STD202
Method 204
AEC-Q200005
UL-94
1000 h at +70 °C, 1.5 h “ON”, 0.5 h
“OFF”
< ±1%
100g's , Normal duration is 6ms , half
< ±0.5%
sine shock pulse
5g's for 20min.12cycles, 10-2000Hz
