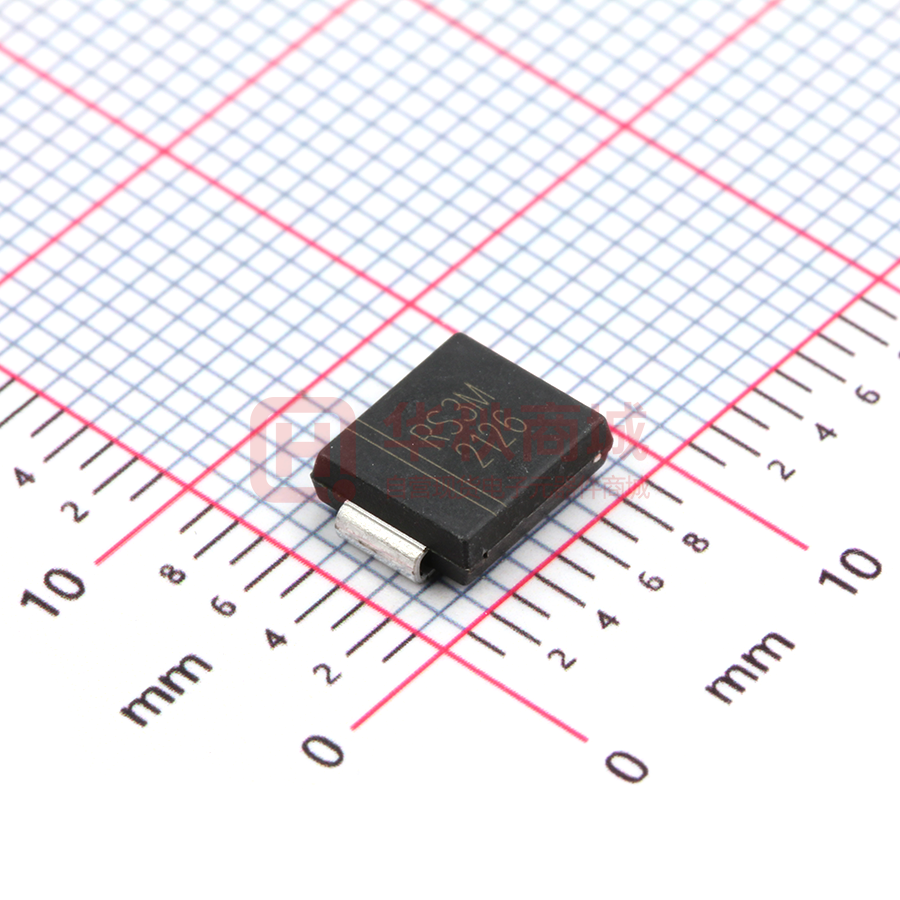

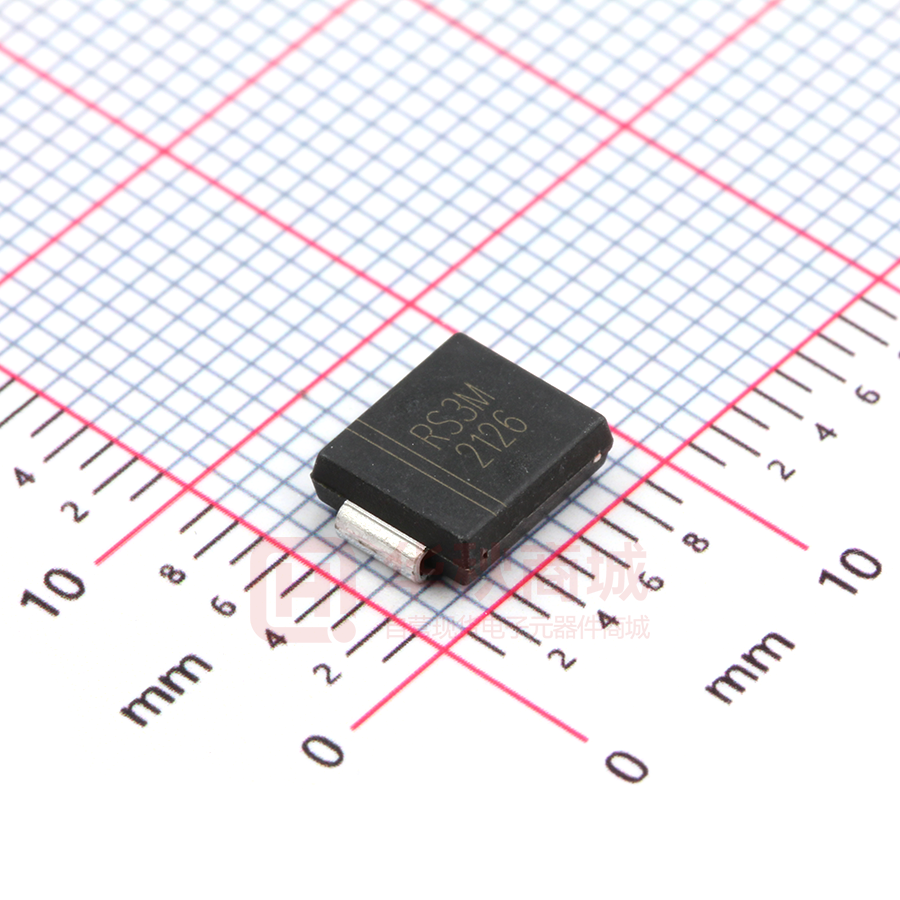

RS3MC

山东晶导微电子有限公司 RS3AC THRU RS3MC Jingdao Microelectronics Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V PINNING Forward Current - 3 A PIN FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • Fast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 2 1 Top View Marking Code: RS3A~RS3M Simplified outline SMC symbol MECHANICAL DATA • Case: SMC • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.22g / 0.0077oz Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols RS3AC RS3BC RS3DC RS3GC RS3JC RS3KC RS3MC Units Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current I F(AV) 3 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 90 A Maximum Forward Voltage at 3 A VF 1.3 V IR 5 100 μA Cj 40 pF Parameter Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance at V R =4V, f=1MHz Maximum Reverse Recovery Time （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range t rr 250 150 500 ns RθJA RθJC 45 15 °C/W T j , T stg -55 ~ +150 °C （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.01 SMC-F-RS3AC~RS3MC-3A1KV Page 1 of 3 山东晶导微电子有限公司 RS3AC THRU RS3MC Jingdao Microelectronics Fig.2 Typical Reverse Characteristics 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Maximum Average Forward Current Rating 100 T J =125°C 10 1.0 T J =25°C 0.1 00 Case Temperature (°C) T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 40 60 80 100 120 140 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) T J =25°C 100 10 T J=25°C f = 1.0MHz V sig = 50mV p-p 1 0.5 1.0 1.5 2.0 2.5 Instaneous Forward Voltage (V) 0.1 1.0 10 100 Reverse Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 120 100 80 60 40 20 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles 2017.01 www.sdjingdao.com Page 2 of 3 山东晶导微电子有限公司 RS3AC THRU RS3MC Jingdao Microelectronics PACKAGE OUTLINE SMC Plastic surface mounted package; 2 leads E A A1 A C b D L E1 VM A SMC mechanical data A E D E1 A1 C L b max 2.62 7.0 6.2 8.0 0.21 0.31 1.6 3.25 min 2.00 6.5 5.6 7.6 0.05 0.15 0.9 2.75 max 103 276 244 315 8.3 12 63 128 min 79 256 220 299 2.0 5.9 35 108 UNIT mm mil Marking The recommended mounting pad size 3.8 (150) 4.1 (160) 4.3 (170) 4.1 (160) Type number Marking code RS3AC RS3A RS3BC RS3B RS3DC RS3D RS3GC RS3G RS3JC RS3J RS3KC RS3K RS3MC RS3M mm Unit ： (mil) 2017.01 JD702228B4 Page 3 of 3
