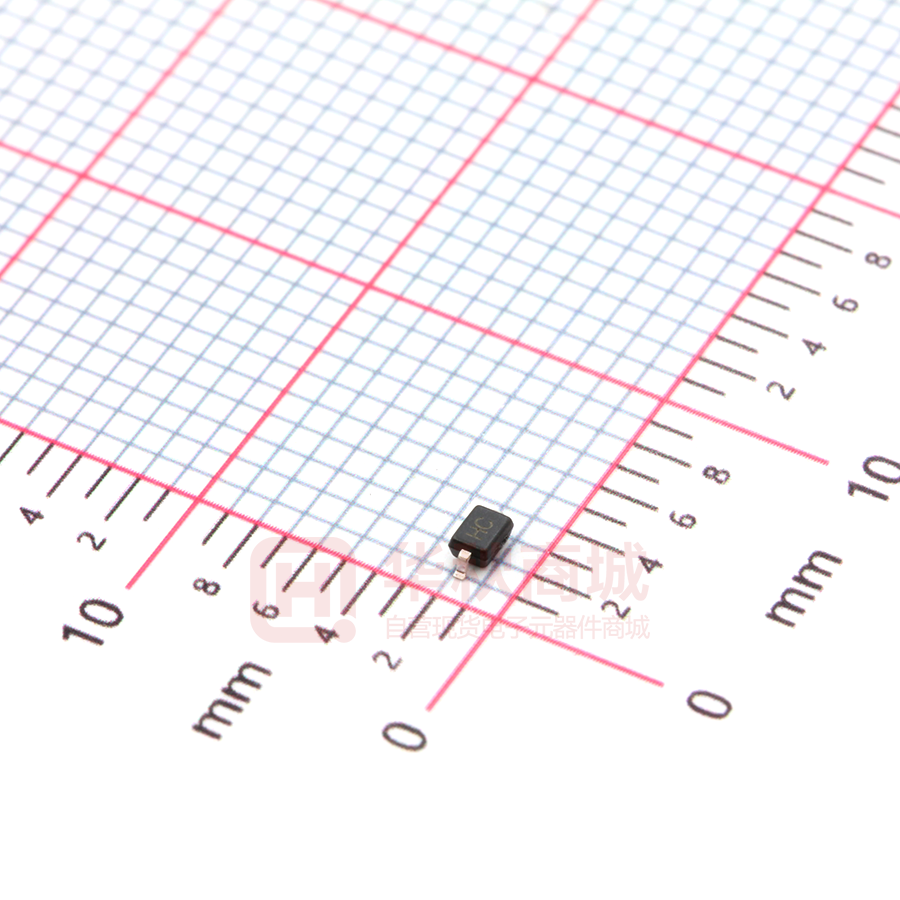

ESD56241D22

ESD56241D22 Transient Voltage Suppressors for ESD Protection APPLICATIONS Ethernet - 10/100/1000 Base T Cellular Phones Handheld - Wireless Systems Personal Digital Assistant (PDA) USB Interface 2 1 IEC COMPATIBILITY (EN61000-4) Top View 61000-4-2 (ESD): Air - 15kV, Contact - 8kV 61000-4-4 (EFT): 40A - 5/50ns 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line-Gnd) & Level 3(Line-Line) Simplified outline SOD-323 and symbol FEATURES 350 Watts Peak Pulse Power per Line (tp=8/20µs) Unidirectional & Bidirectional Configurations Replacement for MLV (0805) Protects One Power or I/O Port ESD Protection > 40 kilovolts Low Clamping Voltage Available in Multiple Voltage Types Ranging From 24V Ultra Low Capacitance: 0.6pF Typical RoHS Compliant MECHANICAL CHARACTERISTICS Molded JEDEC SOD-323 Package Weight 5 milligrams (Approximate) Available in Lead-Free Pure-Tin Plating(Annealed) Solder Reflow Temperature: Pure-Tin - Sn, 100: 260-270°C Consult Factory for Leaded Device Availability Flammability Rating UL 94V-0 8mm Tape and Reel Per EIA Standard 481 Device Marking: Marking Code & Polarity Band (Unidirectional Only) Absolute Ratings (Tamb=25°C ) Symbol Parameter Value Units PPP Peak Pulse Power (tp = 8/20μs) 150 W TL Maximum lead temperature for soldering during 10s 260 °C Tstg Storage Temperature Range -55 to +155 °C Top Operating Temperature Range -40 to +125 °C Tj Maximum junction temperature 150 °C ±15 ±8 KV 40 A 16 KV IEC61000-4-2 (ESD) air discharge contact discharge IEC61000-4-4 (EFT) ESD Voltage www.tw-gmc.com Per Human Body Model 1 ESD56241D22 Transient Voltage Suppressors for ESD Protection Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR IT VBR Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Test Current Breakdown Voltage @ IT Electrical Characteristics Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA Device ESD56241D22 Device Marking HC IR(uA) VBR (V)@ IT VC (V) VC (V) VRWM (V) @ VRWM (Note 1) Max Max Min mA Typ Max 24 1.0 26.7 1.0 43 56 IT @ IPP=1A* @ Max IPP* (A)* 1. VBR is measured with a pluse test current IT at an ambient temperature of 25℃． Fig1. Pulse Waveform www.tw-gmc.com 1 2 IPP PPK C (W)* (pF) Max Max Typ 3.0 168 1.5 ESD56241D22 Transient Voltage Suppressors for ESD Protection SOD-323 K A 1 E B 2 C D 0.63 0.02'' 0.83 1.60 0.063" 2.85 0.112'' H J NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS A B C D E H J K INCHES MILLIMETERS DIM MIN MAX 1.60 1.80 0.063 0.071 1.15 1.35 0.045 0.053 0.80 1.00 0.031 0.039 0.25 0.40 0.010 0.15 REF MAX 0.016 0.006 REF 0.00 0.10 0.000 0.089 0.177 0.0035 2.30 2.70 0.091 PIN: 1. CATHODE 2. ANODE www.tw-gmc.com MIN 1 3 0.004 0.0070 0.106 0.033'' mm inches
